The default setting is Off. The Output NMEA0183 messages are the following: APA,

APB, BOD, BWC, GGA, GLL, HSC, RMA, RMB, RMC, VTG, WCV, XTE (see Appendix F

for more details on NMEA sentences) BOD, BWC, GGA, GLL, HSC, RMA, RMB, RMC,

VTG, WCV, XTE (see Appendix F for more details on NMEA sentences).

2.5.3 DIFFERENTIAL INPUT

The EKP-III can be connected to a DGPS Beacon Receiver that sends RTCM-104 data. To

select the Differential Correction you want among NONE, WAAS, RTCM 1200, RTCM 2400,

RTCM 4800, RTCM 9600, RTCM 19200, RTCM 38400 follow the procedure:

'MENU' 1 sec. + "SYSTEM SETUP" + 'ENTER' + "FIX SETUP" + 'ENTER' + "DIFFER-

ENTIAL CORRECTION SOURCE" + 'ENTER'

The default setting is WAAS which works off the internal GPS receiver.

EKP III USER MANUAL

Fig. 2.5.2 - NMEA Connections

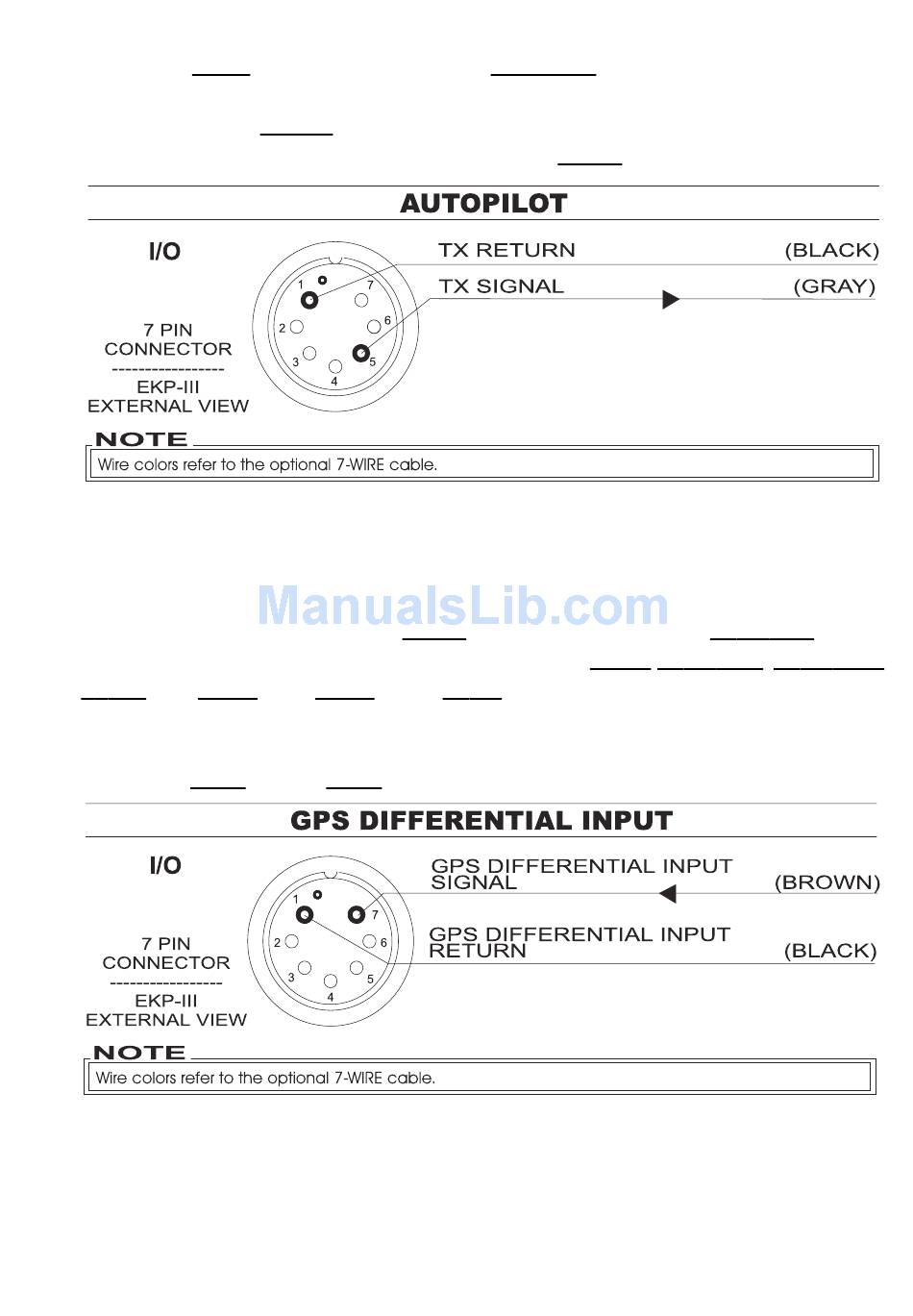

Fig. 2.5.3 - Differential input connections
