Internal Map Test
!
To test the Internal Map Database. If it is corrupted the message "Faulty" is shown (please
contact your local dealer).
C-CARD Test
!
To test the C-CARD. There are the following possible situations:
1. If there is a C-CARD inserted in the slot and there is not a malfunction, the name of
the C-CARD zone and the message "OK" are shown.
2. If there is a C-CARD inserted in the slot, but it is a damaged C-CARD, the name of
the C-CARD zone and the message "Faulty" are shown.
3. If there is not any C-CARD inserted in the slot, the message "not present" is shown.
4. If there is an User C-CARD inserted in the slot, the message "USER C-CARD" is shown.
C-CARD Connector
!
Indicates if there is a malfunction in the connector. It is used only in production.

15.7.3 SERIAL PORTS

If you are having problems receiving data from the position-finding instrument, this test should
help determine the problem.
EKP III USER MANUAL

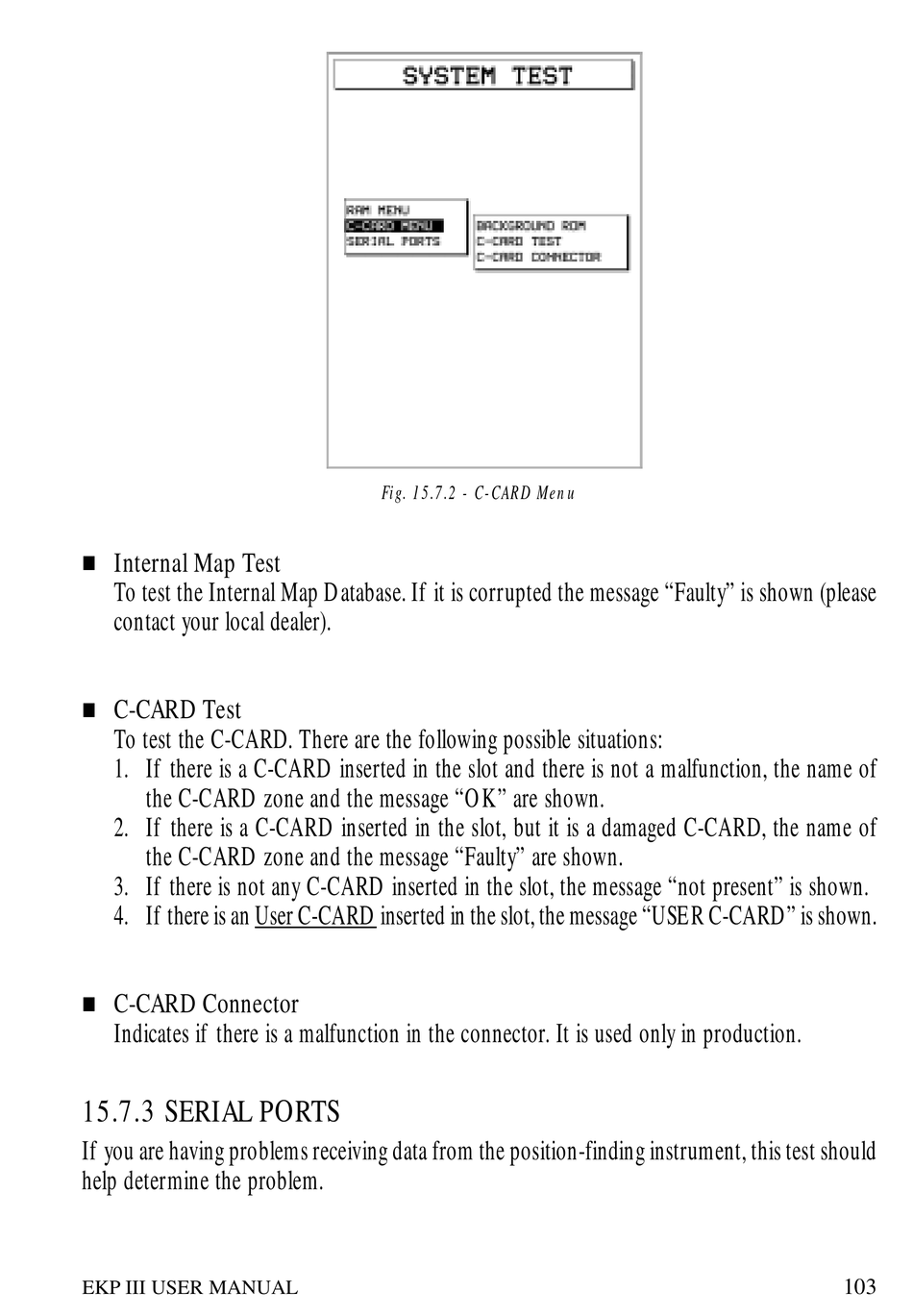

Fig. 15.7.2 - C-CARD Menu
