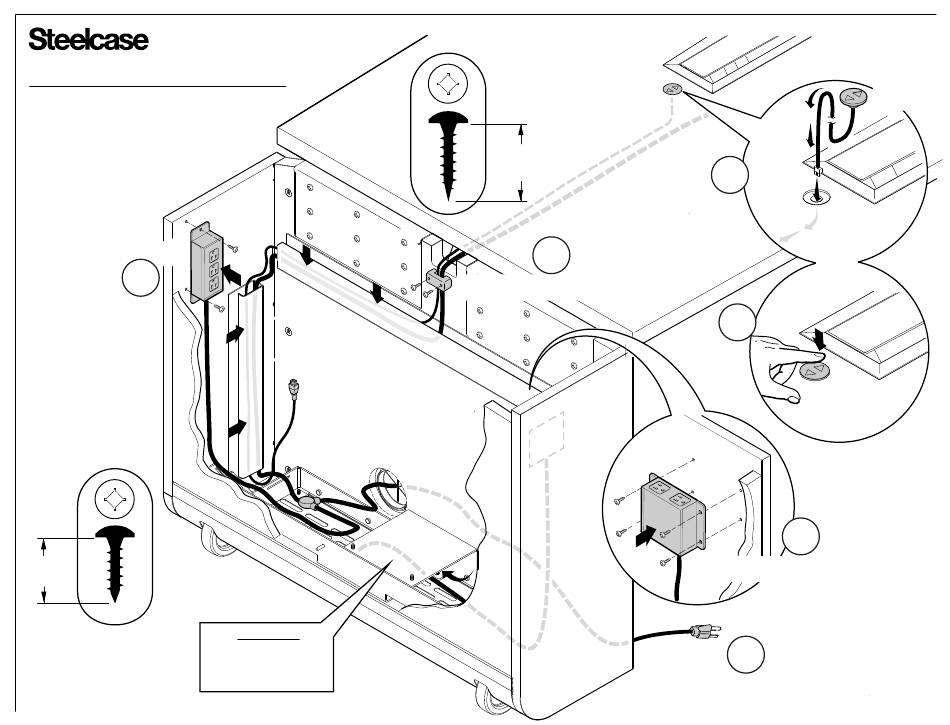

Table to Cabinet Cable Routing
RECEPTACLE BOX
4
x6
.750"
(19.1mm)
TO CONTROL BOX
PORT A1
CAUTION:
All cabling routed along
cabinet bottom panel
must be routed under the
column support plate.
x2
.875"
(22.2mm)
3
CABLE ANCHOR GROMMET
1
2
5
OPTIONAL RECEPTACLE BOX
TO POWER
6
SOURCE
1094808001 Rev C
UP/DOWN
SWITCH
Page 9 of 60
