Steelcase Virtual PUCK Manual

Steelcase Virtual PUCK Manual

For media:scape kiosk and answer
Hide thumbs Also See for Virtual PUCK:

Advertisement

Quick Links

Download this manual
®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2018 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

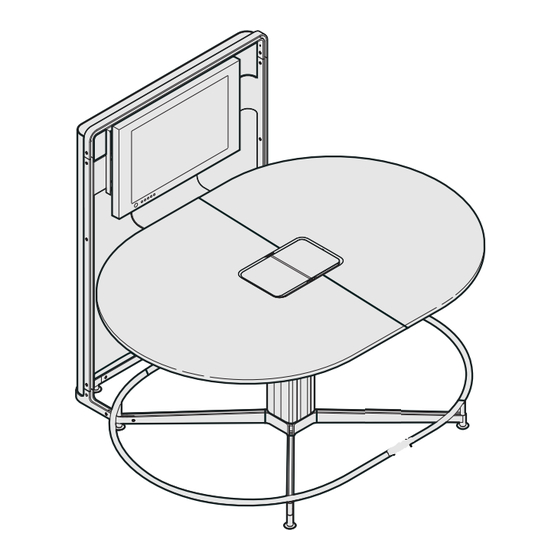

Virtual PUCK for media:scape
Note: For VP for media:scape on Kiosk,
see page 12. For VP for media:scape on
Answer, see page 13.
Kiosk and Answer
#2 PHILLIPS
3/16" HEX DRIVE
3/16", 1/8" (all tables)
plus 5/32" (attached totems)
plus 9/64" (offset stool-height)
FLAT BLADED
SCREWDRIVER
(for data connections)
SOCKET WRENCH
WITH 1/2" SOCKET
Page 1 of 13
23291401 Rev M
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Virtual PUCK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcase Virtual PUCK

Summary of Contents for Steelcase Virtual PUCK

  • Page 1 SCREWDRIVER (for data connections) If you have a problem, question, or request, call SOCKET WRENCH your local dealer, or Steelcase Line 1 at WITH 1/2" SOCKET 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
  • Page 2 The media:scape table mains plug will be considered the disconnect device for both the table and the virtual puck, the disconnect device shall remain readily operable to the user. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

  • Page 3: Bottom View

    ® Install VESA Plate within the shaded area, shown to the right. Align “up” direction relative to table as shown. TIP: install plate within shaded boundary to prevent interference when reinstalling cover. Add (2) stud mount fasteners to the Be sure arrow is in this orientation. back.

  • Page 4: Cable Configuration

    ® Connect HDMI cables to the Virtual PUCK receiver. CABLE CONFIGURATION ETHERNET CABLE Plug into Ethernet Port. Plug POWER CORD and adapter into one of the available outlets on the MS Table. DIGITAL SWITCHER Routing path for HDMI CABLES from the (NUC computer) to the Digital Switcher.
  • Page 5 ® CABLE CONFIGURATION (Alternate View) VP RECEIVER ethernet Cable. Note: The HDMI output ports (1 & 2) require specific routing configuration. Configure: HDMI output 1 to Switcher Aux input 1, and HDMI output 2 to Switcher Aux input 2. * For one monitor setting, use HDMI output 1 to switcher AUX input 1.
  • Page 6 VP RECEIVER ethernet Cable. Note: When Virtual PUCK is installed in a media:scape with video conferencing, Virtual PUCK output 1 MUST be connected to the AUX 1 input of the switcher (top AUX input when fan is facing upwards). The HDVC output 1 should be connected to AUX 2 and HDVC output 2 should be connected to AUX 3.
  • Page 7 Cable. RECEIVER ADAPTER The wake-up control adapter connects to the USB port on the VP receiver to the button cable on the m:s table TABLE BUTTON Virtual PUCK 1 Virtual PUCK 2 Page 7 of 13 23291401 Rev M...
  • Page 8 ® DIGITAL SWITCHER CONFIGURATION Configuration for media:scape can be accomplished using OSD. To enter configuration mode, press and hold power button for approximately 5 seconds. After that OSD will display the current status of the switcher. In this mode, only PUCK 1 will light up. To enter configuration mode user need to enter password: 1342. The PUCK will flash and unit will be ready for configuration.
  • Page 9 ® CONFIRMATION Press “POWER ON” Confirm that screens are displaying: Virtual PUCK 1 Virtual PUCK 2 Display 1 Display 2 ENABLE INPUT LAG REDUCTION (Recommended) Display manufacturers often include an input lag reduction setting most commonly referred to as "Game Mode".

  • Page 10: Reinstall Cover

    ® 5/16-18 x 7/8" BUTTON HEAD SCREW REINSTALL COVER Install pyramid cover "a". Secure pyramid cover "a" using seven (7) 5/16-18 x 7/8" button head screws. Page 10 of 13 23291401 Rev M...
  • Page 11 ® Install pyramid cover "b". Secure 5/16-18 x 7/8" pyramid cover "b" using seven (7) BUTTON HEAD 5/16-18 x 7/8" button head screws. SCREW Plug device back in. Page 11 of 13 23291401 Rev M...
  • Page 12 The Kiosk mains plug will be considered the disconnect device for both the Kiosk and the virtual puck; the disconnect device shall remain readily operable to the user. WARNING: To reduce the risk of fire or electric Page 12 of 13 shock, do not expose this apparatus to rain or moisture.
  • Page 13 ® VP for media:scape on ANSWER Unplug Answer media:scape power cord before installing. Attach (2) stud mount fasteners to the back. Align stud mount fasteners to keyhole slots in the lower left corner of the pan assembly. Press in, then down. Connect the flag-style connector of the VP power supply into the VP receiver (see page 5).
