Verb
™

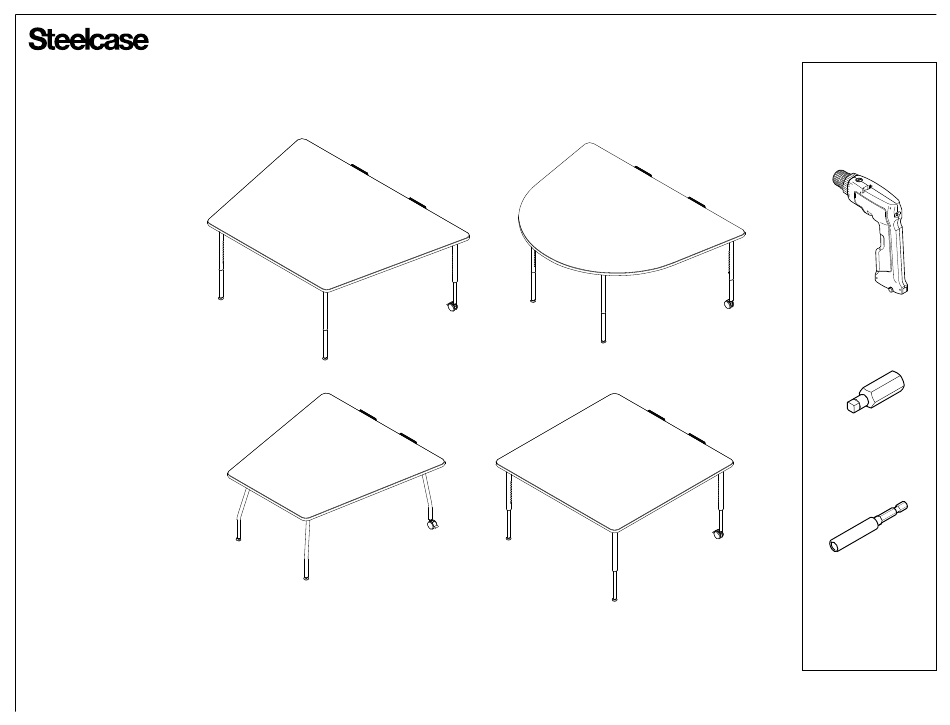

Media Tables
®
R2
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2015 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 6
U.S.A.
24450602 Rev A
Printed in U.S.A.
Advertisement
Related Manuals for Steelcase Verb
Summary of Contents for Steelcase Verb
- Page 1 ™ Media Tables ® If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
- Page 2 ® Attaching Access Legs to a Media Worksurface Align the marked identification holes with the inward Place worksurface upside down most pilot holes. on a clean, scratch resistant surface, such as on a table. NOTICE: DO NOT install Access (Fixed Height) legs in the hole pattern for the Post (Height-Adjustable) legs.
- Page 3 ® Attaching Seated Height-Adjustable Legs to a Media Worksurface Place worksurface upside down on a clean, CAUTION - TIP OVER HAZARD scratch resistant surface, such as on a table. Failure to follow these instructions could affect the Align the marked identification holes on the leg top stability of the table.
- Page 4 ® Attaching Standing Height-Adjustable Legs to a Media Worksurface Place worksurface upside down on a clean, CAUTION - TIP OVER HAZARD scratch resistant surface, such as on a table. Failure to follow these instructions could affect the Align the teardrop shaped holes on the leg top stability of the table.
- Page 5 ® BRACE INSTALLATION TWO (2) 39” BRACES for 60” x 60” trapezoid media table & 60” x 60” Align the holes on the brace with the pilot holes square media table as shown. Install #10 x 1" wood screws into the two (2) pilot hole locations (3a).
- Page 6 ® Optional Side Hooks & Side Docks Align the middle hole on the side hook and side dock with the pilot hole as shown. Install #10 x 1" wood screws into the pilot hole locations (4a). Install two (2) wood screws in the remaining hole locations on the side hook and side dock (4b).
