Easel

Advertisement

®
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2012 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

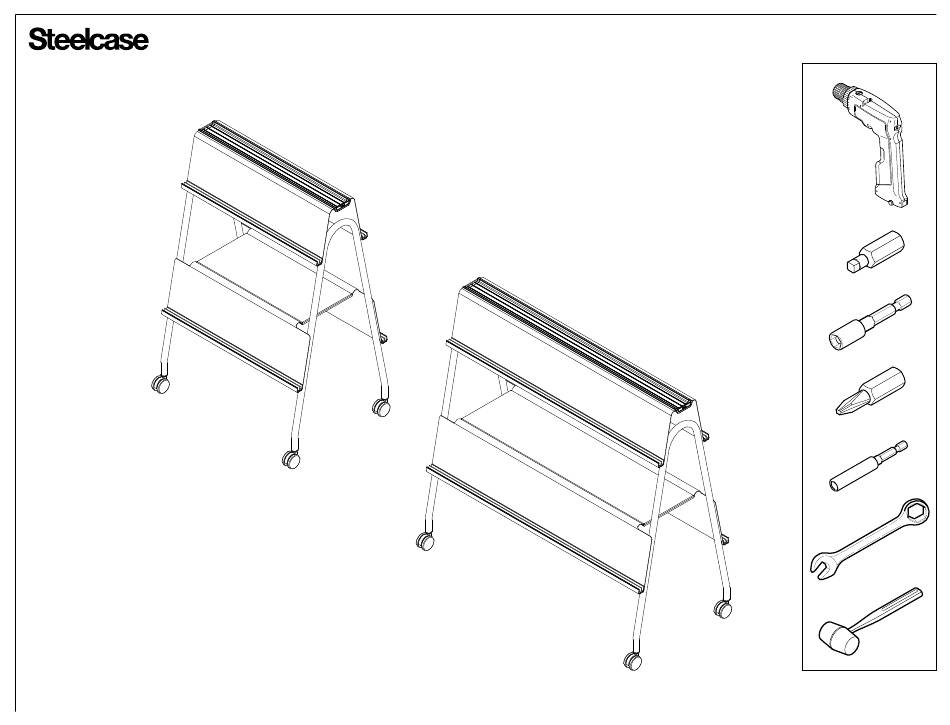

36"
56"
Verb
Easel
7/16"
9/16"
Page 1 of 6
939510100 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Verb 36" and is the answer not in the manual?

Questions and answers

Summary of Contents for Steelcase Verb 36"

  • Page 1 7/16” 36” 9/16” If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, 56”...
  • Page 2 ® CORRECT CORRECT Place leg on a clean, scratch resistant surface with holes facing up. Assemble top shelf to leg using two (2) 1/4-20 hex head screws (2a). Repeat for other top shelf (2b). NOTE: Second person required to help steady and keep shelves upright as they are installed.
  • Page 3 ® Assemble lower shelf to leg using two (2) 1/4-20 hex head screws (4a). Repeat for other lower shelf (4b). NOTE: Second person required to help steady and keep shelves upright as they are installed. Assemble second leg to shelves using two (2) 1/4-20 hex head screws into each shelf.
  • Page 4 ® Place middle shelf into position (6a) and loosely install six (6) (for 36” easel) or eight (8) (for 56” easel) #10 x 3/8” machine screws into shelf (6b). Page 4 of 6 939510100 Rev B...
  • Page 5 ® Hand tighten caster stem into each leg and secure with 9/16 wrench. Tap each caster securely onto each stem with a rubber mallet. Page 5 of 6 939510100 Rev B...
  • Page 6 ® Using two (2) people, flip the easel upright onto the casters. Inspect unit for squareness. If unit is square, go to step 10. If the top track is twisted, loosen (do not remove) all sixteen (16) hex head leg screws with the unit in the upright position (on casters).
