Vertical Processor Sling, Fixed Mount
®
®
®
™
Compatible with c:scape
, Frameone
, and Ology
worksurfaces

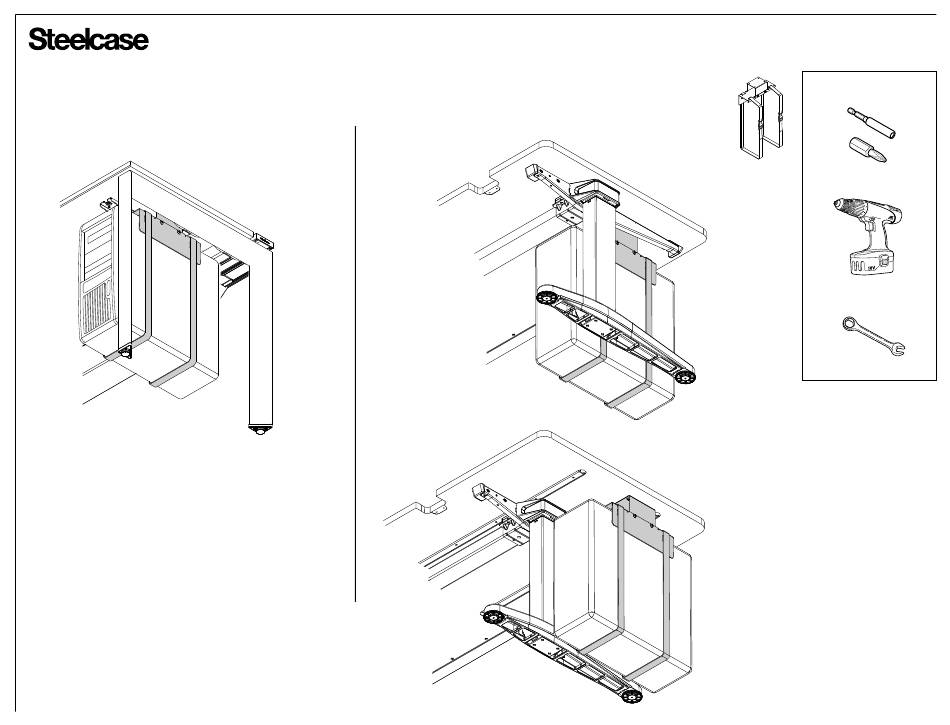

Tools Required:
c:scape and Frameone Worksurfaces
Ology Worksurfaces
CPRSLFO
#2 Phillips
Power Drill
7/16"
If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2015 Steelcase Inc.
Grand Rapids, MI 49501
Page 1 of 7
U.S.A.
21078501 Rev D
Printed in U.S.A.
Advertisement
Table of Contents
Related Manuals for Steelcase Vertical Processor Sling CPRSLFO
Summary of Contents for Steelcase Vertical Processor Sling CPRSLFO
- Page 1 #2 Phillips Power Drill 7/16" If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
- Page 2 ® c:scape and Frameone Worksurfaces Insert one (1) bolt through sling support bracket and loosely install the nut on the opposite side. Place base bracket on underside of worksurface with slot towards the rear of the desk and base bracket no more than 1/4"...
- Page 3 ® c:scape and Frameone Worksurfaces Align the mounted bolt with the slot in the base bracket and slide up and to the rear into position. Insert second bolt through the empty hole in the sling support bracket. Tighten both bolts. Orient sling support bracket on center of CPU and tighten straps.
- Page 4 ® Ology Worksurfaces without Overhang Insert one (1) bolt through sling support bracket and loosely install the nut on the opposite side. Place base bracket on underside of worksurface with slot towards the rear of the desk and base bracket no more than 1/4"...
- Page 5 ® Ology Worksurfaces without Overhang Align the mounted bolt with the slot in the base bracket and slide up and to the rear into position. Insert second bolt through the empty hole in the sling support bracket. Orient sling support bracket on center of CPU and tighten straps.
- Page 6 ® Ology Worksurfaces with Overhang Insert one (1) bolt through sling support bracket and loosely install the nut on the opposite side. Place base bracket on underside of worksurface with slot towards the rear of the desk and base bracket no more than 1/4"...
- Page 7 ® Ology Worksurfaces with Overhang Align the mounted bolt with the slot in the base bracket and slide up and to the rear into position. Insert second bolt through the empty hole in the sling support bracket. Orient sling support bracket on center of CPU and tighten straps.
