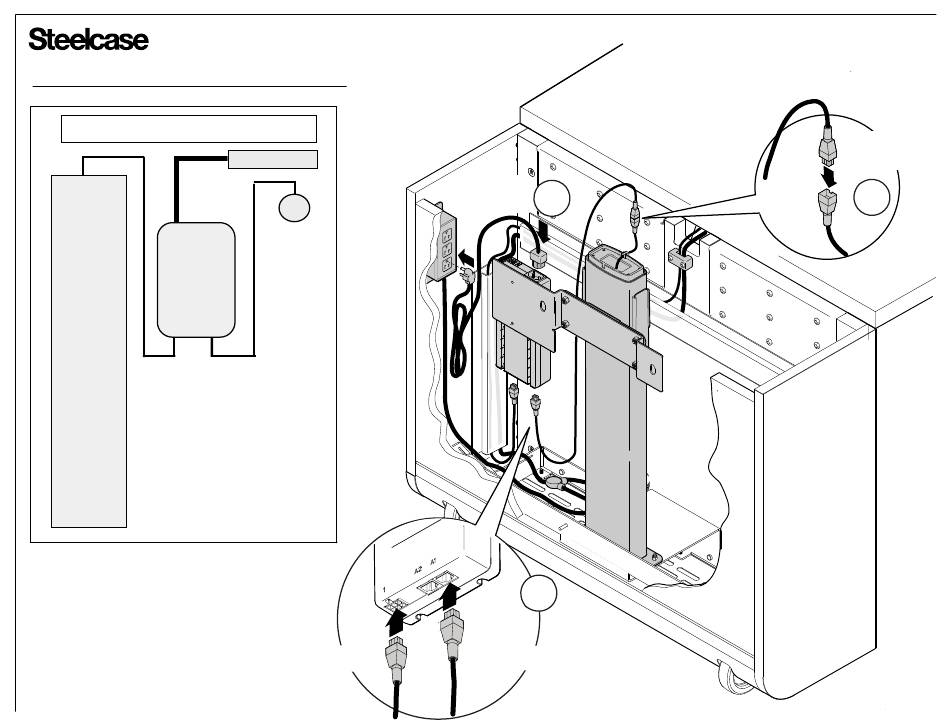

Lifting Column Electrical Connections
LIFT SYSTEM WIRING DIAGRAM
LIFT COLUMN
AC
CONTROL BOX
1
A2 A1
LIFTING COLUMN CABLE TO CONTROL BOX
TO POWER SOURCE
UP/DOWN
SWITCH
CONTROL BOX
1
POWER CORD
3
UP/DOWN SWITCH CABLE
LIFT MOTOR CABLE
TO CONTROL BOX
CABLE
2
Page 10 of 60
1094808001 Rev C
