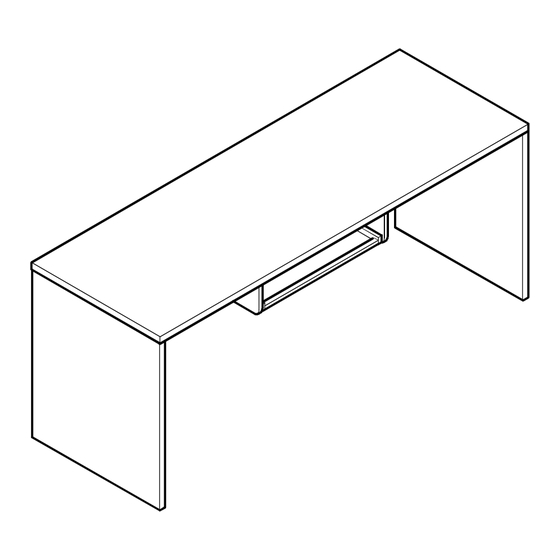

Keyboard Shelf Installation
320, 420, Valencia
Tools
1/8" Drill Bit
Power Driver
Phillips Screwdriver
Printed in U.S.A.
Assembly Directions
REV
N9501194 B
Page 1 of 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the 320 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steelcase 320

  • Page 1 Steelcase Steelcase, Inc. ® Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 Keyboard Shelf Installation 320, 420, Valencia Tools 1/8” Drill Bit Power Driver Phillips Screwdriver Printed in U.S.A. Assembly Directions N9501194 B Page 1 of 3...
  • Page 2 1” Locate keyboard shelf assembly 1” back from front edge and install 7/8” screws in locations shown above. Assembly Directions Page Steelcase N9501194 REV B 2 of 3...
  • Page 3 Holes for upper shelf location Holes for lower shelf location KEYBOARD SHELF SIDE SUPPORT MOUNTING SCREW MOUNTING SCREW To adjust shelf height, remove mounting screws and relocate according to diagram above. Assembly Directions Page Steelcase N9501194 REV B 3 of 3...
