Outriggers – Overview – Standard slewing range type
The information in this section applies only to the Standard slewing range type.
If you wish to operate the truck crane using the MAXbase slewing range type;
à
p. 12 - 19.
All permissible outrigger spans are symmetrical. All outrigger beams are
extended and all outrigger beams are extended to the same outrigger span;
à
Enabled outrigger spans, p. 12 - 18.

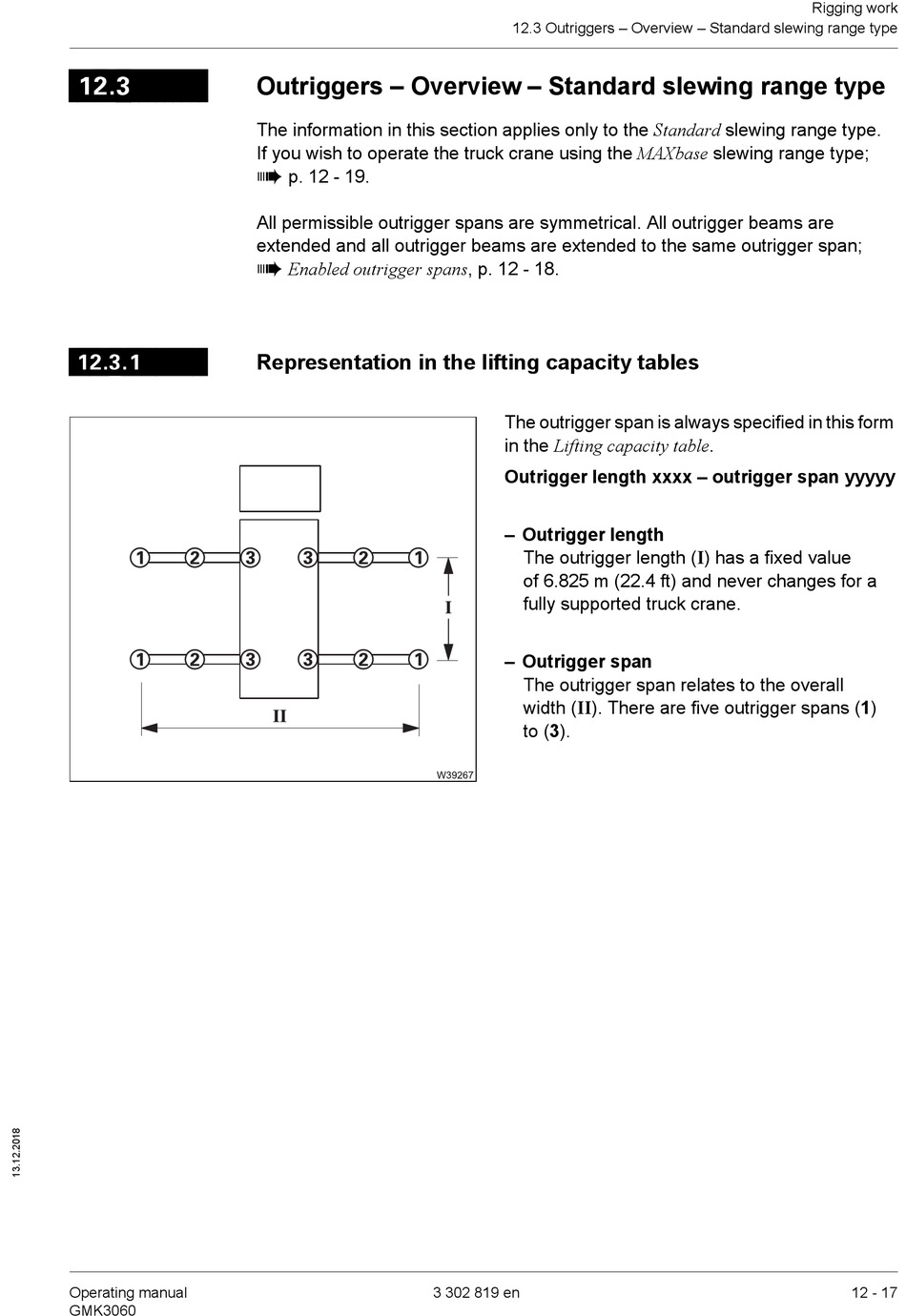

Representation in the lifting capacity tables

12.3 Outriggers – Overview – Standard slewing range type
The outrigger span is always specified in this form
in the Lifting capacity table.
Outrigger length xxxx – outrigger span yyyyy
– Outrigger length
The outrigger length ( I ) has a fixed value
of 6.825 m (22.4 ft) and never changes for a
fully supported truck crane.
– Outrigger span
The outrigger span relates to the overall
width ( II ). There are five outrigger spans (1)
to (3).
