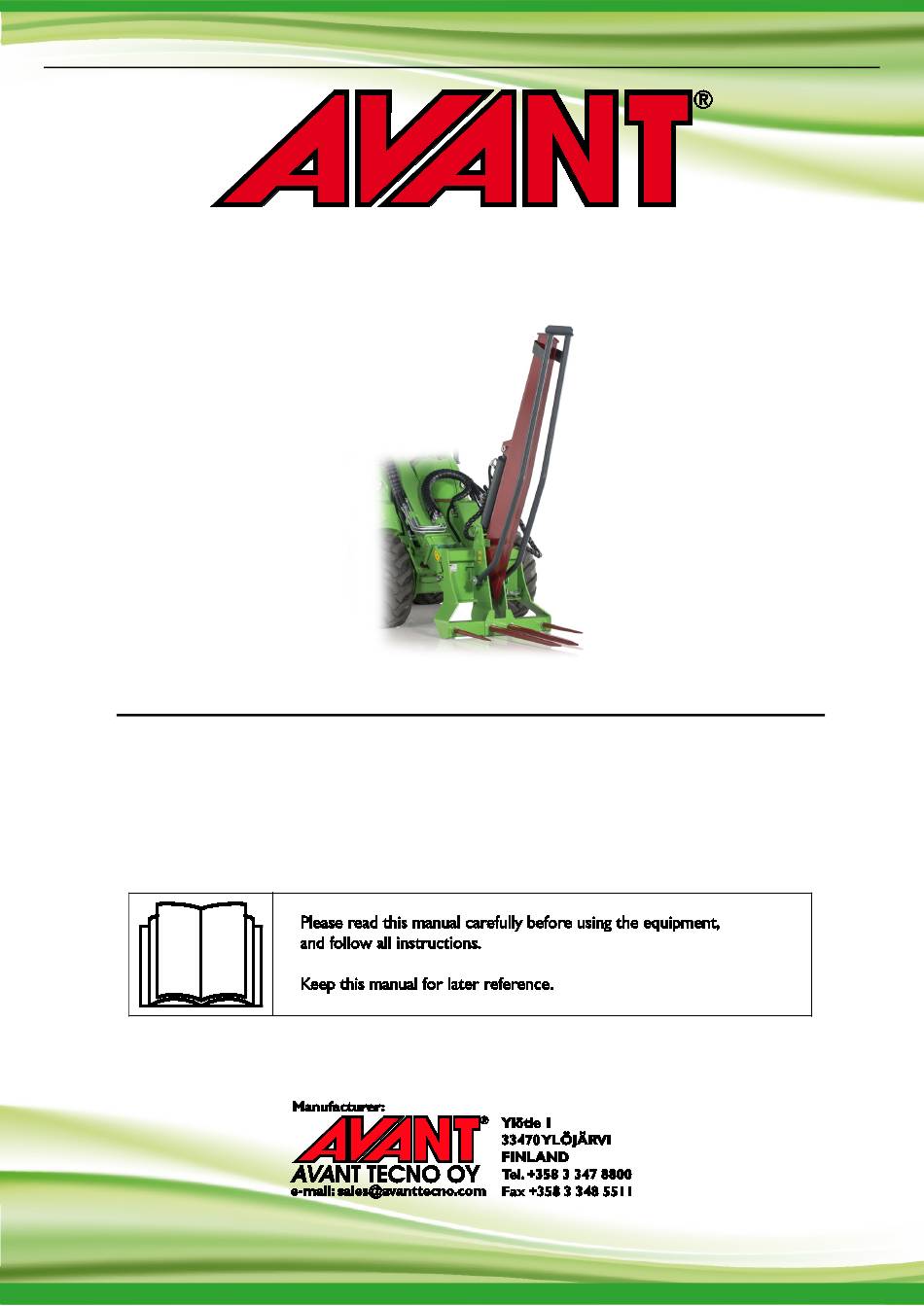

- Page 1 English Round bale splitter 2021 1 Operator's Manual for Attachment Round bale splitter Product number A36199 www.avanttecno.com A444195 2021 1 EN 2014-...
- Page 2 Round bale splitter 2021 1...
-
Page 3: Table Of Contents
Round bale splitter 2021 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Safe shutdown procedure ............................9 Personal protective equipment ..........................10 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (26) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
2. Designed purpose of use The AVANT Round bale splitter is an attachment that is suitable for use with AVANT compact loaders that are shown in Table 1. The attachment is intended for splitting of different sizes of round hay or feed bales. The bale can also be transported with the splitter. -
Page 7: Safety Instructions For Using The Attachment
7 (26) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (26) Use only the compressing force to split a bale, do not swing the blade with speed. Move the blade carefully. Make sure that overhead clearance is sufficient. Hitting an overhead obstacle may cause the loader to tip over. Keep a safe distance from electric cables, lamps, or WARNING other electric systems;...
-
Page 9: Safe Shutdown Procedure
9 (26) Risk of crushing - Going under the loader boom or an attachment can cause serious injury or death. Never go under the loader boom and prevent others from getting near DANGER lifted boom or attachment. Going under a raised attachment or loader boom is dangerous, as the boom may lower due to loss of stability, mechanical fault or when other person operates the controls of the loader. -
Page 10: Personal Protective Equipment
10 (26) 3.2 Personal protective equipment Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ... -
Page 11: Technical Specifications
305 kg Maximum input of hydraulic energy: max 22,5 MPa (225 bar) Compatible AVANT loaders: See Table 1, Designed purpose of use 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 12 Operate attachment only from the driver’s seat. A419053 Attachment identification plate Table 4 - Round bale splitter - Main components Frame with Avant quick coupling brackets Cutting blade Blade guard Cutting blade hydraulic cylinder Replaceable tines, short Replaceable tines, long...
-
Page 13: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 14: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 15 15 (26) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 16: Instructions For Use
16 (26) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. Risk of tipping over - Avoid overload. -
Page 17: Checks Before Use
17 (26) 6.1 Checks before use Check the splitter tool and the operating area once more before starting to work. Quick inspection of the equipment and the operating area before use are parts of ensuring safety and the best performance of the equipment. -
Page 18: Operating The Round Bale Splitter
18 (26) 6.2 Operating the Round bale splitter Avoid sudden loss of stability - Never drag loads from e.g. a shelf. If the load that you want to lift from height is too heavy, the loader can tip forward when reversing with the loader. -
Page 19: Transport Position
19 (26) Controlling the bale splitter: Move auxiliary hydraulics control lever towards locking position electric buttons of the optional electric joystick) to lift the blade up. Push the tines into the bale at its lower section, illustrated adjacent figure. Move the lever away from the locking position to push the blade down and split the bale. -
Page 20: Working On Uneven Ground
20 (26) Risk of cutting - Keep the blade lowered when transporting the attachment. Make sure the blade guard lowers completely down. Keep in mind that regardless of the blade guard the large sharp blade can injure if there are persons or animals near the WARNING attachment. -
Page 21: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 22: Inspection Of Metal Structures
22 (26) 7.2 Inspection of metal structures Also the metal structures of the attachment must be inspected regularly. Check visually for damages and inspect the quick attach brackets and their surrounding area carefully. The attachment must not be used if it is deformed, cracked, or torn. -
Page 23: Warranty Terms
23 (26) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 24 SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen paalileikkuri; Avant-kuormaajan työlaite Hydraulisk balskärare; arbetsredskap för Avant lastare A36199 Hydraulic bale splitter; attachment for Avant loaders 28.10.2020 Ylöjärvi, Finland Risto Käkelä, Toimitusjohtaja / Verkställande direktör / Managing Director...
