Operator's Manual for Attachment
Disc scraper
Product number
Please read this manual carefully before using the equipment,
and follow all instructions.
Keep this manual for later reference.
Manufacturer:
e-mail: sales@avanttecno.com
A36910
Ylötie 1
33470 YLÖJÄRVI
FINLAND
Tel. +358 3 347 8800
Fax +358 3 348 5511
Disc scraper 2018 1
Advertisement
Table of Contents
Related Manuals for AVANT A36910
Summary of Contents for AVANT A36910
- Page 1 English Disc scraper 2018 1 Operator's Manual for Attachment Disc scraper Product number A36910 Please read this manual carefully before using the equipment, and follow all instructions. Keep this manual for later reference. Manufacturer: Ylötie 1 33470 YLÖJÄRVI FINLAND Tel. +358 3 347 8800 e-mail: sales@avanttecno.com...
- Page 2 Disc scraper 2018 1...
-
Page 3: Table Of Contents
Disc scraper 2018 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ..........................5 2. DESIGNED PURPOSE OF USE ......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Safe shutdown procedure ............................ 8 ... -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (18) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING: SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
2. Designed purpose of use The AVANT disc scraper is an attachment that is designed and manufactured to be used with AVANT multi- purpose loaders shown in Table 1. It is an efficient and economical carpet remover. With the disc scraper it is easy and effortless to remove carpet and floor tiles in demolition and refurbishing jobs. -
Page 7: Safety Instructions For Using The Attachment
7 (18) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. -
Page 8: Safe Shutdown Procedure
8 (18) Risk of crushing - Never allow anyone to get under a lifted attachment or loader boom. Keep in mind that the loader boom can be lowered or tilted even if the engine has WARNING been shut down (crushing hazard). The loader is not intended to be left to keep a load elevated for longer periods. -
Page 9: Technical Specifications

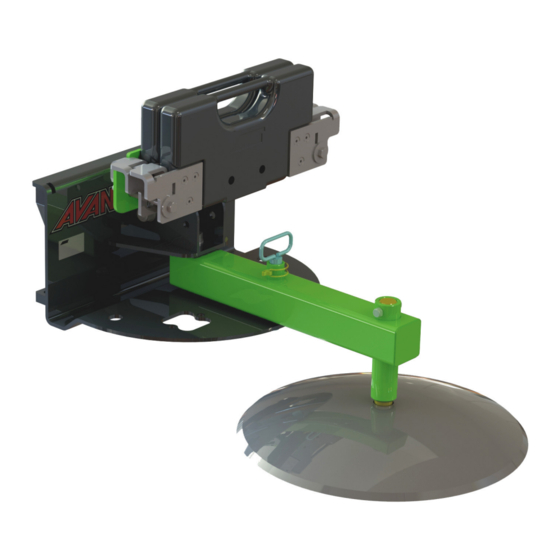

507 mm Weight: 83 kg Compatible AVANT loaders: See Table 1, Designed purpose of use 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 10 Operate the attachment only from the driver’s seat. 4 A420983 Attachment identification plate Table 4 - Disc scraper - Main components Disc scraper frame Quick coupling brackets for Avant loaders Locking pin Fastening pin Disc Avant counterweights ...
-
Page 11: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. - Page 12 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment. ...
-
Page 13: Instructions For Use
13 (18) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. 6.1 Checks before use Ensure that bystanders are at a safe distance when operating the equipment. -
Page 14: Operating The Disc Scraper
Set the disc scraper to working position. Scrape the surface by pushing the attachment slightly against the floor with the loader. The Avant counterweights (2) keep the disc (1) firmly in the floor when driving. Move the loader to the desired direction forwards. -
Page 15: Transport Position
15 (18) 6.4 Transport position Keep the loader stable. Always transport the disc scraper as low and close to the ground as possible. CAUTION Keep the telescopic boom retracted during drive. 6.5 Storing the attachment Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. -
Page 16: Maintenance And Service
16 (18) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground. -
Page 17: Warranty Terms
17 (18) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 18 ...
