- Page 1 English Manure Fork 2020 1 Operator's Manual for Attachment Manure Fork Product number A36038 www.avanttecno.com A439878 2020 1 EN 2014-...
- Page 2 Manure Fork 2020 1...
-
Page 3: Table Of Contents
Manure Fork 2020 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 4. TECHNICAL SPECIFICATIONS ....................... 10 Safety labels and main components of the attachment ..................Error! Bookmark not defined. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (22) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use

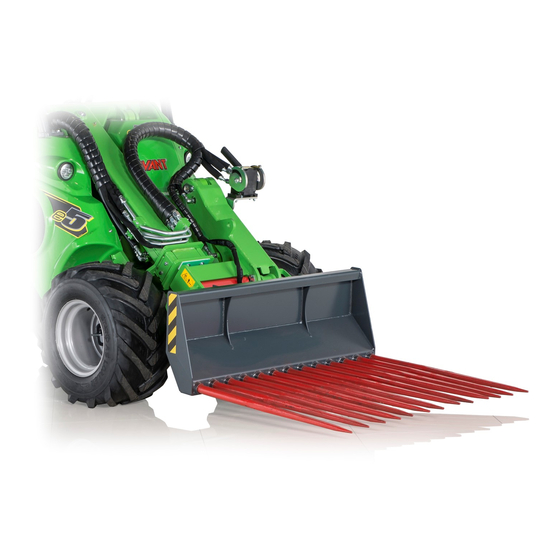

2. Designed purpose of use The AVANT Manure fork is an attachment that is suitable for use with AVANT multi purpose loaders that are shown in Table 1. The Manure fork is a very useful attachment for handling and loosening manure and similar materials. -
Page 7: Safety Instructions For Using The Attachment
7 (22) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 8 (22) Never use the attachment to lift or to transport persons or as any kind of work platform even temporarily. Pay attention to the surroundings and any other persons and machines moving in the vicinity. Pay attention to the contours of the terrain and other hazards, such as WARNING branches and trees that can reach to the driver's area, loose rocks, and slippery surfaces.
- Page 9 9 (22) Remember to wear proper personal protective equipment: The noise level at the driver's seat may exceed 85 dB(A) depending on loader model and operating cycle. Extended exposure to loud noise can cause hearing impairment. Wear hearing protection while working with the loader. ...
-
Page 10: Technical Specifications
120 kg Maximum allowed load: 1000 kg Suitable Avant loaders: See Table 1 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. - Page 11 11 (22) Table 3 - Decal locations and warning messages Decal Warning message A46771 Misuse hazard - Read instructions before use. A46772 Crushing hazard - Do not go under a raised attachment; stay away from raised equipment. A417898 Attachment identification plate Table 4 - Manure Fork - Main components Frame with quick attach brackets Bolt-on replaceable fork tines, 13 pcs...
-
Page 12: Attaching The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. - Page 13 If your loader is not listed in Table 1 on page 6, ask your Avant dealer before using this attachment.
-
Page 14: Instructions For Use
14 (22) 6. Instructions for use Practise the use of the attachment and its controls in an open and safe area. If you are unfamiliar with the loader in use, it is recommended to practise its use without any attachments. Risk of tipping over - Avoid overload. -
Page 15: Checks Before Use
6.2 Operation The Manure fork is intended to be used for collecting and transporting manure and similar material together with AVANT loader. Pick up the material to be transported and set the Manure fork to transport position by lifting it slightly off the ground with the loader, as shown in the adjacent figure. -
Page 16: Using The Manure Fork
16 (22) 6.2.1 Using the Manure Fork When collecting material from the floor: Keep the forks low and at a low angle Drive slowly and carefully Collision hazard - Never keep the fork lifted or at high angle relative to the floor while CAUTION driving. -
Page 17: Working On Uneven Ground
17 (22) Avoid sudden loss of stability - Never drag loads from e.g. a shelf. If the load that you want to lift from height is too heavy, the loader can tip forward when reversing with the loader. Never reverse and drag with the loader before making sure that the loader WARNING can handle the load that is being lifted. -
Page 18: Storing The Attachment
18 (22) 6.4 Storing the attachment Uncouple and store the attachment on level ground. The best way to store the attachment is a place where it is protected from direct sunlight, rain, and extreme temperatures. Avoid leaving the attachment laying directly on the ground. Place it on blocks of wood or on a pallet, for example. -
Page 19: Maintenance And Service
19 (22) 7. Maintenance and Service The attachment has been designed to be as maintenance free as possible. Continuous maintenance includes regular cleaning and lubrication, and monitoring the condition of the attachment. Because of the crushing hazard caused by lowering machine parts, all maintenance work must be done when moving parts have been lowered down completely and the attachment is lowered flat against the ground. -
Page 20: Warranty Terms
20 (22) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory.
