Summary of Contents for AVANT A446413

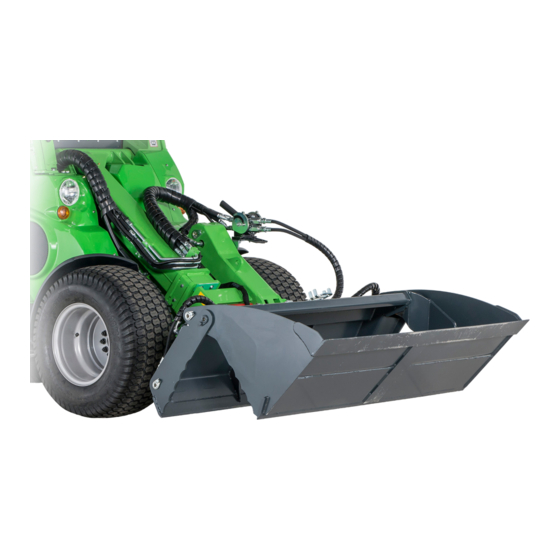

- Page 1 4 in 1 Bucket Product number Straight edge With teeth 1100 mm A21245 A21249 1280 mm A21156 A21184 1400 mm A21266 A21269 1450 mm A428472 A428508 1600 mm A36906 A37248 1800 mm A446413 A446873 www.avanttecno.com A432954 2021 1 EN 2021-...
- Page 2 4 in 1 Bucket 2021 1...
-
Page 3: Table Of Contents
4 in 1 Bucket 2021 1 CONTENTS 1. FOREWORD ............................4 Warning symbols used in this manual ........................... 5 2. DESIGNED PURPOSE OF USE......................6 3. SAFETY INSTRUCTIONS FOR USING THE ATTACHMENT ............7 Safe shutdown procedure ............................9 Personal protective equipment ..........................9 4. -
Page 4: Foreword
If you sell or transfer the equipment, be sure to hand over this manual to the new owner. If the manual is lost or damaged, you can request a new one from your Avant dealer or from the manufacturer. -
Page 5: Warning Symbols Used In This Manual
5 (26) Warning symbols used in this manual The following warning symbols are used throughout this manual. They indicate factors that must be taken into account to reduce the risk of personal injury or damage to property: WARNING SAFETY ALERT SYMBOL This symbol means: “Warning, be alert! Your safety is involved!”... -
Page 6: Designed Purpose Of Use
2. Designed purpose of use The AVANT 4 in 1 buckets are attachments that are intended to be used with AVANT compact loaders that are shown in Table 1. They are versatile buckets for general earth-moving tasks, material handling, levelling, and snow clearing work. -
Page 7: Safety Instructions For Using The Attachment
7 (26) 3. Safety instructions for using the attachment Please bear in mind that safety is the result of several factors. The loader-attachment combination is highly powerful and improper or careless use or maintenance may cause serious personal injury or property damage. - Page 8 Observe the local regulations concerning the use of the equipment on public roads. The loader may need to be registered for road use. Contact your local Avant dealer or local authorities for more information. Risk of crushing - Never allow anyone to get under a lifted attachment or loader boom.
-
Page 9: Safe Shutdown Procedure
9 (26) 3.1 Safe shutdown procedure Safe stopping of the attachment, before going near the attachment: Always stop the attachment following safe stopping procedure before leaving the driver's seat. Safe stopping procedure prevents all unintentional movements of the attachment. Note that the loader boom can move down even if the engine of the loader is turned off. -
Page 10: Technical Specifications
210 l 300 l Maximum input of 22,5 MPa (225 bar) hydraulic energy: Compatible AVANT See Table 1 loader models: Product number A36906 A37248 A446413 A446873 Working width: 1600 mm 1800 mm Straight With Straight With Type: edge teeth edge... -
Page 11: Safety Labels And Main Components Of The Attachment
11 (26) 4.1 Safety labels and main components of the attachment Listed below are the labels and markings on the attachment. They must be visible and readable on the equipment. Replace any unclear or missing label. New labels are available via your retailer or contact information provided on the cover. - Page 12 12 (26) Table 4 - 4 in 1 Bucket - Main components Frame with quick coupling brackets Bucket opening cylinders (2 cylinders) Reinforced cutting edge or teeth Grille Multi connector holder Multi connector hydraulics coupling...
-
Page 13: Assembling The Attachment
Do not stay in the area between the attachment and the loader. Mount the attachment only on level surface. WARNING Never move or lift an attachment that has not been locked. Avant quick coupling system: Step 1: Lift the quick attach plate locking pins up and turn them backwards into the slot so that they are locked in the upper position. -
Page 14: Connecting And Disconnecting Hydraulic Hoses
5.1 Connecting and disconnecting hydraulic hoses On Avant loaders the hydraulic hoses are connected using the multi connector system. If you have an Avant 300-700 series loader with the conventional quick couplers and wish to change to the multi connector system, contact your Avant dealer or service point for instructions or installation services. - Page 15 15 (26) Keep all fittings as clean as possible; use the protective caps on both the attachment and the loader. Dirt, ice, etc. may make using the fittings significantly more difficult. Never leave the hoses hanging on the ground; place the couplings onto the holder on the attachment.
-
Page 16: Instructions For Use
16 (26) 6. Instructions for use Practise the use of the attachment and the controls of the loader in a safe area. If you are unfamiliar with the particular loader model, it is recommended to practice its use without any attachments. Risk of tipping over - Avoid overload. -
Page 17: Checks Before Use
17 (26) 6.1 Checks before use Ensure that bystanders are at a safe distance when operating the equipment. Do not let anyone to enter danger area of the boom or to stay directly in front of the loader. Also make sure that it is safe to reverse with the loader. - Page 18 18 (26) Once the bucket is almost full, lift the bucket with loader boom. Keep driving slowly forward. To operate the 4-in-1 bucket: Move auxiliary hydraulics control lever towards locking position electric buttons of the optional electric joystick) to open the bucket.
-
Page 19: Material Handling
19 (26) If the loader is not equipped with the boom self levelling: Prevent material from falling on you - Monitor the position of the bucket. When lifting material to a high level, the quick coupling plate must be simultaneously tilted to prevent the load from falling from on the loader or the operator. -
Page 20: Working On Uneven Ground
Read the instructions provided with the tilt adapter or in the operator's manual of the loader. More information about the tilt adapters is available from your AVANT retailer or from the AVANT web pages at www.avanttecno.com. Adapter plates reduce lifting capacity - Do not use adapters with heavy loads or attachments. -
Page 21: Storing The Attachment
21 (26) 6.6 Storing the attachment Uncouple and store the attachment on level surface so, that it will stand firmly on its frame. Also make sure that water will not stay in the bucket. The best storage place for the attachment is an area that is protected from rain and direct sunlight. -
Page 22: Maintenance And Service
Finding any fault means that the hydraulic hose or component must be replaced and the equipment must not be used until it is repaired. Spare parts are available from your nearest AVANT retailer or authorised service point. Leave the repair work to professional service technicians, if you don’t have adequate knowledge and... -
Page 23: Cleaning The Attachment
23 (26) 7.2 Cleaning the attachment Clean the attachment regularly to prevent accumulation of dirt which is more difficult to remove. A pressure washer and mild detergent can be used for cleaning. Do not use strong solvents, and do not spray directly at the hydraulic components, or at the labels on the attachment. -
Page 24: Warranty Terms
24 (26) 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) from the date of purchase for the attachment it manufactures. The warranty covers repair costs as follows: Work costs are covered, if the repair is not performed at the factory. - Page 25 2006/42/EC as amended). The following harmonized standards have been applied: SFS-EN ISO 12100, SFS-EN ISO 4413 Mallit / Modeller / Models Avant Hydraulitoiminen nelitoimikauha; Avant-kuormaajan työlaite A21245 1100 mm Hydraulisk Kombiskopa; arbetsredskap för Avant lastare A21249 Hydraulic bucket; attachment for Avant loaders A21156 1280 mm A21184 A21266...
