modway MOD-6282 Quick Start Manual

MOD - 6282

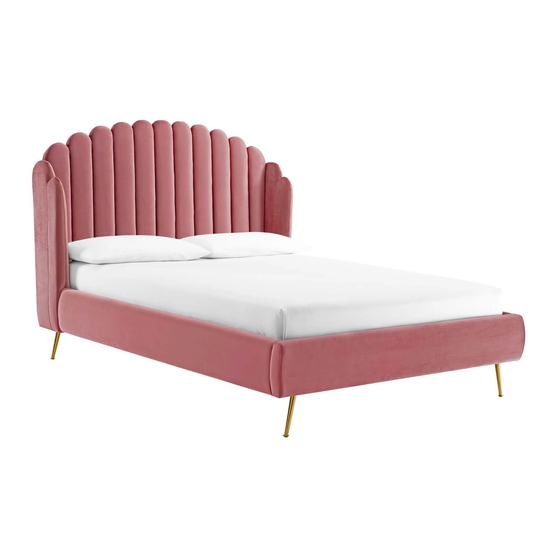

Thank you for purchasing the MODWAY BED!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step instructions.
2. Owing to the size and weight of the bed, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 35 minutes.
3. Please do not use any tools other than those provided or recommended in these instructions.
4. Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe
environmentally friendly way.
5. Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save tools that have been provided.
6. Please keep all fitting out of reach of children.
Component:
A. HEADBOARD
B. HEADBOARD WING
C. FOOTBOARD
D. BED LEG
E.
SIDE RAIL
F.
SIDE RAIL SUPPORT WOOD
G. CENTER RAIL
H. CENTER SUPPORT LEG
I. CENTER SUPPORT
J. BED SLAT
K. FOOTBOARD LEG SUPPORT WOOD
Customer Service 609-256-9000 www.modway.com
x 1
J
x 2
x 1
x 4
x 2
x 2
x 1
x 3
x 2
x 26
K
x 2
C
Hardware:
1
JCBC BOLT M6 x 40mm
2
JCBC BOLT M6 x 60mm
3
M6 FLAT WASHER
4
WOOD SCREW M3.5 x 16mm
5
WOOD SCREW M4 x 20mm
6
WOOD DOWEL M8 x 30mm
7
6 HOLE METAL BRACKET
8
WOOD SCREW M4 x 25mm
9
WOOD SCREW M4 x 32mm
10
BED SLAT SIDE FITTER
11
BED SLAT CENTER FITTER
12
M4 ALLEN KEY (BALL SHAPE)
13
M5 ALLEN KEY (BALL SHAPE)
F
A
G
H
I
E
16 PCS
4 PCS
6 PCS
8 PCS
2 PCS
4 PCS
2 PCS
12 PCS
16 PCS
26 PCS
13 PCS
1 PC
1 PC
B
D
01 of 07
