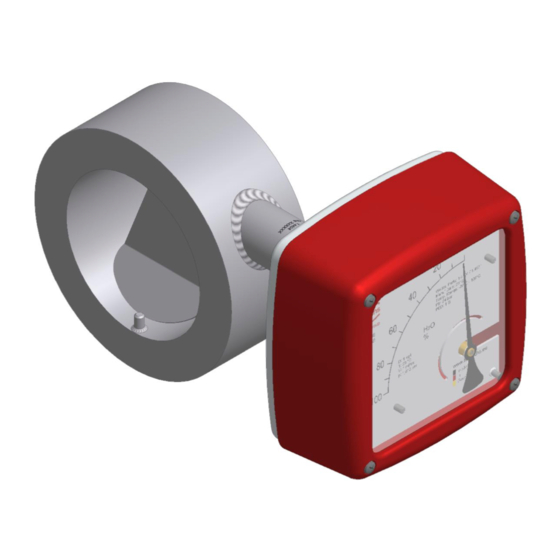

- Page 1 Paddle Type Flow Meter Installation and Operating Instructions...
-
Page 2: Table Of Contents
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Contents INTRODUCTION ................................4 IDENTIFICATION ................................4 Supplier/manufacturer ............................... 4 Product type ................................4 Product name ................................4 Issue date ................................... 4 Version no.................................. 4 APPLICATIONS ................................4 SAFETY INSTRUCTIONS .............................. 4 Intended use................................ - Page 3 Heinrichs Messtechnik TSK1 Installation and Operating Instructions 10.3 Weight ..................................17 10.4 Sealing face ................................17 10.5 Materials ................................... 17 ELECTRICAL CONNECTION ............................18 11.1 Wiring diagram for ES transmitter .......................... 18 11.2 Wiring diagram for ES transmitter with 4-20 mA output and 2 limit transducers ..........19 11.3 Wiring diagram for ES transmitter with 4- 20 mA output, pulse output and limit switches ........
-
Page 4: Introduction
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Introduction These Installation and Operating Instructions serve as a tool for the correct installation, operation and maintenance of the device. They are a supplement to the TSK Device Description. Read the manual carefully before the device is installed and put into use. It does not include special versions or applications. -
Page 5: Packaging / Storage / Transportation
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Packaging / Storage / Transportation Carefully unpack the device to avoid damage. The operability of the paddle can be tested by pressing it in the direction of flow. The pointer position of the indicator mechanism must follow the direction of movement. -
Page 6: Input
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 6 Input 6.1 Measured variable Volume flow 6.2 Measuring range (lower-range and upper-range value) 15 – 100% Measuring range span 0.5 – 3.5 m3/h water Smallest measuring range 200 – 1500 m3/h water Largest measuring range 20 –... -
Page 7: Kem1 Or Kem2 Limit Switches (Special Version)
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 7.1.2 KEM1 or KEM2 limit switches (special version) Switches are SPDT micro switches which are activated by a cam disk. KEM 1 = 1 SPDT micro switch KEM 2 = 2 SPDT micro switches Maximum switching capacity: 230 VAC 50/60Hz 24 VDC... -
Page 8: Installation Conditions
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 9.1 Installation conditions The measuring device can be installed vertically or horizontally (according to the direction of flow indicated in the order). The nominal size of the product line to be connected must correspond to the nominal size of the measuring device. The best installation position is between loose flanges. -
Page 9: Mounting/Start-Up
Heinrichs Messtechnik TSK1 Installation and Operating Instructions vertical: flow from top to the bottom vertical: flow from bottom to the top Caution: When mounting the device in the horizontal position, make sure the indicator unit is not pointing upwards. This is to prevent water lodging on the glass window and entering the device under the protective collar of the housing. -
Page 10: Device Settings
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 9.1.2 Device settings The measuring equipment is delivered ready for operation according to your order specifications. The limit switches are set to the desired values. If you have submitted no requirements, the basic setting for 1 switch: Minimum contact switching point at 20% of descending flow (damped/closed-circuit principle). -
Page 11: Operation In Hazardous Areas
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 9.1.5 Operation in hazardous areas Only devices with Ex-marking may also be operated in hazardous areas. Ambient-Temp. Process-Temp. Marking Description -40°C .. +65 °C -25°C .. +150 °C II 2G Ex h IIC T6...T3 Gb With switch II 2D Ex h IIIC T85°C…T200°C -40°C .. -
Page 12: Ambient Conditions
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 9.1.5.2.1 Marking for built in limit switch SJ3,5…N… The installed limit transducer of the company Pepperl & Fuchs is certified for the use in a explosive gas environment by PTB 99 ATEX 2219 X EC Type Examination Certificate and for the use in a explosive dust environment by ZELM 03 ATEX 0128 X EC Type Examination Certificate. -
Page 13: Electromagnetic Compatibility
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 9.2.6 Electromagnetic compatibility EN 61000-6-2:2011 Immunity industrial environment EN 61000-6-3:2011 Emitted interference residential environment , ISM ratio-frequency equipment EN 55011:2011 Group 1, Class B EMC requirements – EN 61326-1:2013 NAMUR recommendation NE 21 Fluid conditions 9.3.1 Fluid temperature limits... -
Page 14: Design Details
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Design details The measuring device consists of a sandwich-type fitting (mounting length 64 mm), which can be installed between flanges. The fitting contains the paddle with the resetting spring. The paddle is mounted on an axis that has a permanent magnet at the end. The torsion caused by the paddle will be transmitted by the axis magnet to the counter magnet system and operate the indicator unit. -
Page 15: Indicator Housing Stainless Steel
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Vertical flow from top to bottom Vertical flow from bottom to top 10.1.2 Indicator housing stainless steel Horizontal flow from left to right "Indicator on distance = L + 100 mm" Page 15 of 30... - Page 16 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Horizontal flow from right to left Vertical flow from top to bottom Vertical flow from bottom to top Page 16 of 30...
-
Page 17: Dimensions Tsk-C, Tsk-S, Tsk H
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 10.2 Dimensions TSK-C, TSK-S, TSK H Nominal size Nom. pressure (standard) L [mm] D [mm] Indicator Indicator [mm] DN - DIN/EN ASME class Aluminum st.st. DIN-/EN-flange ASME-flange 1½“ 2“ 92,1 2½" 21 (ASME=17) 3“... -
Page 18: Electrical Connection
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 11 Electrical connection Wiring To connect the power supply, remove the indicator cover, insert the connector cable into the cable gland and attach it to the terminals according to the terminal diagram. Tighten the cable gland securely, remount the indicator cover and close it tightly. Please observe the following wiring instruction carefully.( Improper wiring will cause loss of guarantee) ... -
Page 19: Wiring Diagram For Es Transmitter With 4-20 Ma Output And 2 Limit Transducers
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 11.2 Wiring diagram for ES transmitter with 4-20 mA output and 2 limit transducers 11.3 Wiring diagram for ES transmitter with 4- 20 mA output, pulse output and limit switches Page 19 of 30... -
Page 20: Wiring Diagram For Inductive Limit Switches Sj-3,5 N
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 11.4 Wiring diagram for inductive limit switches SJ-3,5 N 11.5 Wiring diagram for KEM 1 and KEM 2 micro switches 11.6 Devices with unconnected cable end For simple electrical connection, especially at instruments with stainless steel indicator, the device can be supplied with a cable end (silicon cable). -
Page 21: Power Supply
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 12 Power supply see electrical connection 13 CE mark The measuring system meets the statutory requirements of the following EU directives: Directive 2014/34/EU (ATEX), the Electromagnetic Compatibility (EMC) Directive 2014/30/EU (EMC) and the Pressure Equipment Directive 2014/68/EU (PED). 14 Order information Please include the following information in your order: product data, specific weight, temperature, pressure, viscosity, material design, connection size, measuring range, direction of flow,... -
Page 22: Returning Devices For Repair And Service
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 18 Returning devices for repair and service Note: In accordance with the applicable German waste disposal legislation, the owner/client is responsible for the disposal of special waste and hazardous materials. Consequently, all devices sent to us for repair must be free of any hazardous materials. This also applies to possible hollow spaces and fissures in the devices. -
Page 23: Complete Indicator Unit With Local Scale
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 20.1.1 Complete Indicator unit 20.1.3 Complete Indicator unit with 2 pcs with local scale limit switch KEI (SJ 3,5-N) 20.1.4 Complete indicator unit with 20.1.2 Complete indicator unit, 2 pcs SPDT micro switch KEM c/w 1 pc limit switch KEI (SJ 3,5-N) Page 23 of 30... -
Page 24: Complete Indicator Unit With 1 Pc Spdt Micro Switch Kem
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 20.1.6 Complete indicator with 20.1.5 Complete indicator unit with 1 pc transmitter ES Ex HART SPDT micro switch KEM 21 Model Code Model code Description Pressure Process Wetted Parts rating temperature Fitting: st.st. Built in parts: st.st. - Page 25 Heinrichs Messtechnik TSK1 Installation and Operating Instructions 21/2" 207R 2½" Class 150 RF ASME B16.5-2003 227R 2½" Class 300 RF ASME B16.5-2003 326D DN65 PN40 Form D DIN EN 1092-1 207J 2½" Class 150 RTJ ASME B16.5-2003 227J 2½" Class 300 RTJ ASME B16.5-2003 DN80/ 331B DN80 PN40 Form B1 DIN EN 1092-1...
- Page 26 -40° to +65°C Proximity switch NCB2-12GM40-ZO -25° to +70°C Transmitter ES with HART-protocol and counter module -40° to +70°C Transmitter ES Fieldbus Foundation -40° to +70°C special model Accessory without with (separate specification necessary) Design Heinrichs Kobold Page 26 of 30...
-
Page 27: Decontamination Certificate For Device Cleaning
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Decontamination certificate for device cleaning Company: ..........Name: .......... Street: ..........Tel.-Nr.: ........Postal code....... / Town: ..............The Paddle Type Flow Meter Model ……………..………..….. Comm.-Nr. / Ser.-Nr.: has been used with media :..................As the used media is : harmless toxic... -
Page 28: Declaration Of Conformity
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 23 Declaration of conformity EU-Konformitätserklärung EU-Declaration of Conformity . 19.4151.01 Hersteller: Heinrichs Messtechnik GmbH Manufacturer: Robert-Perthel-Strasse 9 50739 Köln Produktbeschreibung: Stauklappen-Durchflussmessgerät vom Typ TSK Product description: Paddle-Type Flow Meter Model TSK Hiermit erklären wir, in alleiniger Verantwortung, dass das oben genannte Messsystem den Anforderungen der folgenden EU- Richtlinien, einschließlich allen bis heute veröffentlichten Änderungen bzw. - Page 29 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Anhang N zur EU-Konformitätserklärung Annex N of the EU-Declaration of Conformity . 19.4151.01 Produktbeschreibung: Stauklappen-Durchflussmessgerät vom Typ TSK mit ES Product description: Paddle-Type Flow Meter Model TSK with ES Die Konformität mit den auf Seite 1 genannten Richtlinien diese Erklärung wird nachgewiesen durch die Einhaltung folgenden Normen (gegebenenfalls abhängig von Gerätvariante): Conformity to the Directives referred to on Page 1 of this Declaration is assured through the application of the following standards (possibly dependent on version of device):...
- Page 30 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Anhang X zur EU-Konformitätserklärung Annex X of the EU-Declaration of Conformity . 19.4151.01 Produktbeschreibung: Stauklappen-Durchflussmessgerät vom Typ TSK mit ES Product description: Paddle-Type Flow Meter Model TSK with ES Gerät Zulassungen / Device certification EG-Baumusterprüfbescheinigung Nachtrag Kennzeichnung...
