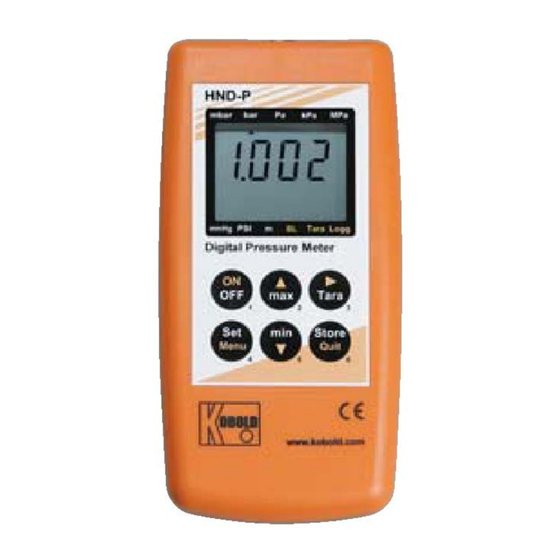

Operating Instructions
for
Manual Pressure Measuring Devices with
External and Integrated Pressure
Sensors
Model: HND-P215

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HND-P215 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kobold HND-P215

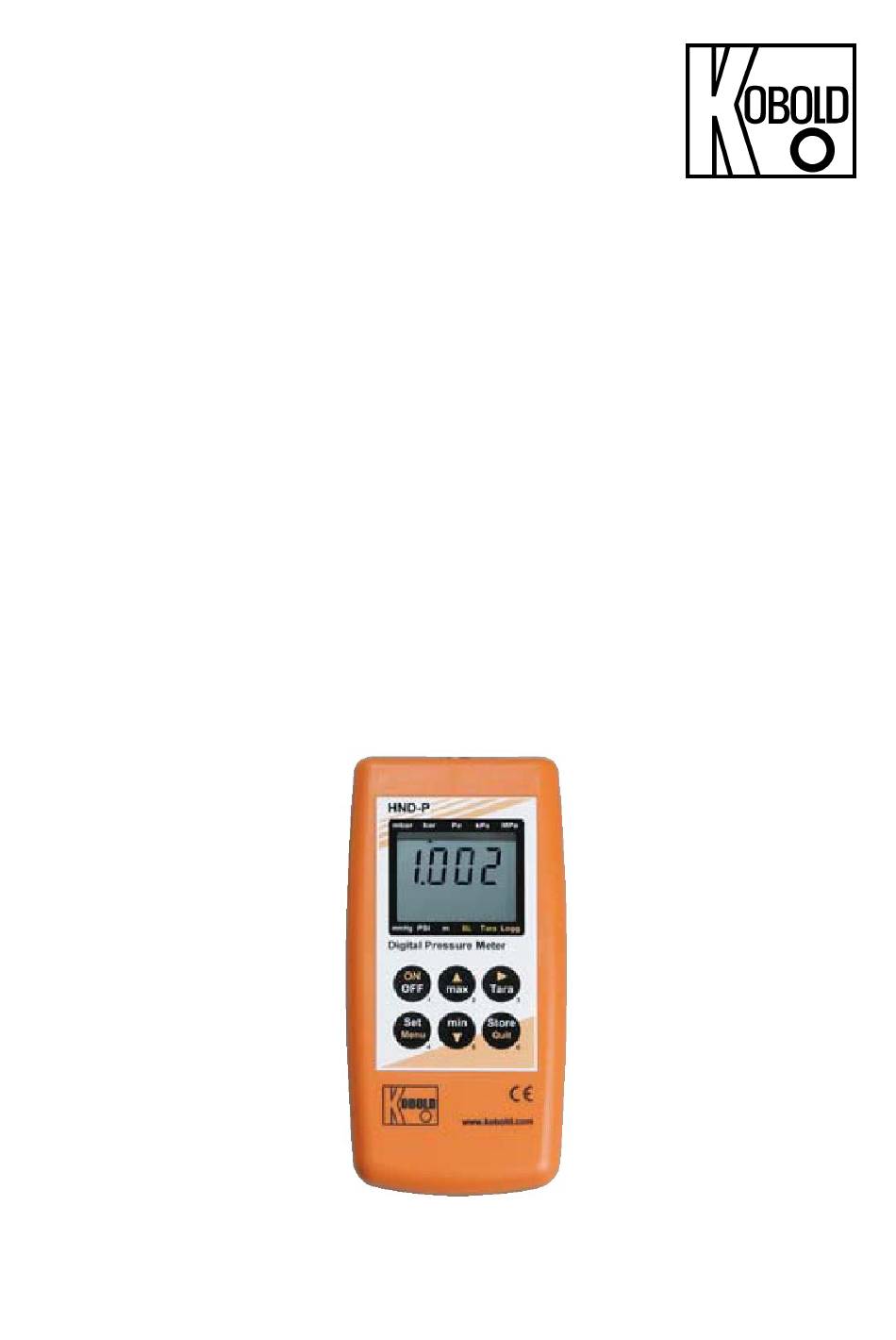

  • Page 1 Operating Instructions Manual Pressure Measuring Devices with External and Integrated Pressure Sensors Model: HND-P215...
  • Page 2: Table Of Contents

    Pressure sensors ................22     11.2 Accessories ..................23     EU Declaration of Conformance ..............24     Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 HND-P215 K06/0422...
  • Page 3: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.
  • Page 4: Operating Principle

    The HND-P215 type also has a logger function, a peak value memory, or a minimum/maximum alarm. A special characteristic of the type HND-P215 is the possibility of connecting two external pressure sensors.
  • Page 5: Operation / Configuration / Adjustments

    Connections for pressure sensors of the HND-PS-family (p.r.t. chapter 8) Interface: Connection for el. isolated interface adapter (p.r.t. chapter 8.1 The Serial Interface) The mains adapter socket is located at the left side of the device. HND-P215 K06/0422 page 5...
  • Page 6: Pop-Up Clip

     The device with pop-up clip at position 90° can be set up on a table, etc.  The device with pop-up clip at position 180° can be suspended from a screw or the magnetic holder. page 6 HND-P215 K06/0422...
  • Page 7: Display

    To recall the manufacturer’s calibration press button 3 for approx. 15 seconds. Please note: - A zero-point adjustment can only be carried out if the difference between the values on display is less than 500 digits! HND-P215 K06/0422 page 7...
  • Page 8: Operation

    1-120 Averaging function deactivated Auto Power Off time in minutes P.oFF 1-120 Auto Power Off deactivated Function of the output: No output function, lowest power consumption Output is serial interface Output is analogue output 0…1 V page 8 HND-P215 K06/0422...
  • Page 9 YEAr YYYY (*) This menu can only be invoked if the logger memory contains no data! If parameter should be changed the logger memory has to be cleared before! (key 6, p.r.t. 7.8 Operation Of Logger) HND-P215 K06/0422 page 9...
  • Page 10 (no water contact!) and bring the sensor with its open press. connection for higher pressure to water depth to be measured (display and is compensated for pressure changes in ambient air). page 10 HND-P215 K06/0422...
  • Page 11  Sensor error (Sens Erro)  Low battery (bAt)  Fe 7: System error (always with sound) In case of an alarm and when polling the interface, the prio-flag is set in the returned interface message. HND-P215 K06/0422 page 11...
  • Page 12: Operation Of Logger

    - sensor 1, min peak since the last recording - sensor 1, max peak since the last recording - sensor 2, current measuring value at the time of recording - sensor 2, min peak since the last recording page 12 HND-P215 K06/0422...
  • Page 13 In between the recordings the measuring shut’s down. This decreases the power consumption enormously and therefore is recommended e.g. for long time recordings where no mains adapter is available. Max. number of measurings: 4000 Cycle time: 1...3600 seconds (=1h), selectable in the configuration HND-P215 K06/0422 page 13...
  • Page 14 Note: If you try to switch off the instrument in the cyclic recording operation you will be asked once again if the recording is to be stopped. The device can only be switched off after the recording has been stopped! The Auto-Power-Off-function is deactivated during recording! page 14 HND-P215 K06/0422...
  • Page 15: Output

    CRC. The following standard software packages are available: HND-Z034: Operation and read out of logger function, data display in diagrams and tables BUS-S20M: 20-channel software to display the measuring values HND-P215 K06/0422 page 15...
  • Page 16 Logger: read data of STOR Logger x x x Read max display range x x x Read logger channel info x x x Read display range - unit x x x Read display range – decimal point page 16 HND-P215 K06/0422...
  • Page 17: Analogue Output - Scaling With Dac.0 And Dac.1

    The scale of the measuring can be influenced by this setting (factor is in %): displayed value = measured value * (1+Scal/100) Standard setting: 'off' =0.000, i.e. value is not corrected. Together with the zero displacement (see above) this factor is mainly used to compensate for sensor deviations. HND-P215 K06/0422 page 17...
  • Page 18: Pressure Connection To The Sensors

    Measurements of differential pressure with two sensors By means of the calculation sensor 1 – sensor 2 (DIF) press. differences of any sensor combinations can be measured. page 18 HND-P215 K06/0422...
  • Page 19: Error And System Messages

    Calculation overflow happened Choose different unit Err.7 System error Return to manufacturer for repair ---- Sensor not present/recognized Reconnect sensor, During logging: stop the logger and restart it Could not calculate value Suitable sensor/unit combination necessary HND-P215 K06/0422 page 19...
  • Page 20: Calibration Services

    Interface: Serial interface (3.5mm jack) can be connected to USB or RS232 interface of a PC via electrically isolated interface adapter, HND-Z031 or HND-Z032 (see accessories) Analog output: 0…1 Volt, freely scaleable (resolution 12 bit) page 20 HND-P215 K06/0422...
  • Page 21: Order Codes

    Housing: impact-resistance ABS, membrane keyboard, transparent panel, Front side IP65 Dimensions: 142x71x26 mm (LxWxD) Weight: approx. 170 g 11. Order Codes Order-no. Housing design 2 x pressure sensor inputs with HND-P… additional functions (see techn. data) HND-P215 K06/0422 page 21...
  • Page 22: Pressure Sensors

    ** Pressure sensors HND-PS01 up to HND-PS08 are only suitable for air and non corrosive/non ionizing gases and liquids, not for water. Accessories for HND-PS19…PA23 Model and Code 1.2 m PVC-cable with 6-pin Mini-DIN plug and M16 socket (IP 54) HND-K31 page 22 HND-P215 K06/0422...
  • Page 23: Accessories

    PU-hose (9 bar), 6 mm external / 4 mm internal HND-Z087 PA-hose (25 bar), 6 mm external / 4 mm internal HND-K31 1.2 m PVC-cable with 6-pin Mini-DIN plug and M16 socket (IP 54) * observe instrument dimensions Additional accessories on request HND-P215 K06/0422 page 23...
  • Page 24: Eu Declaration Of Conformance

    HND-P215 12. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Manual Pressure Measuring Devices with External and Integrated Pressure Sensors model: HND-P215 to which this declaration relates is in conformity with the standards noted below:...
