Summary of Contents for Kobold Heinrichs TSK

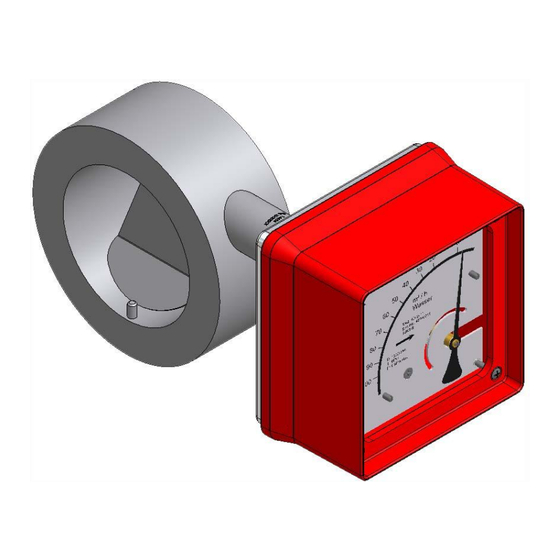

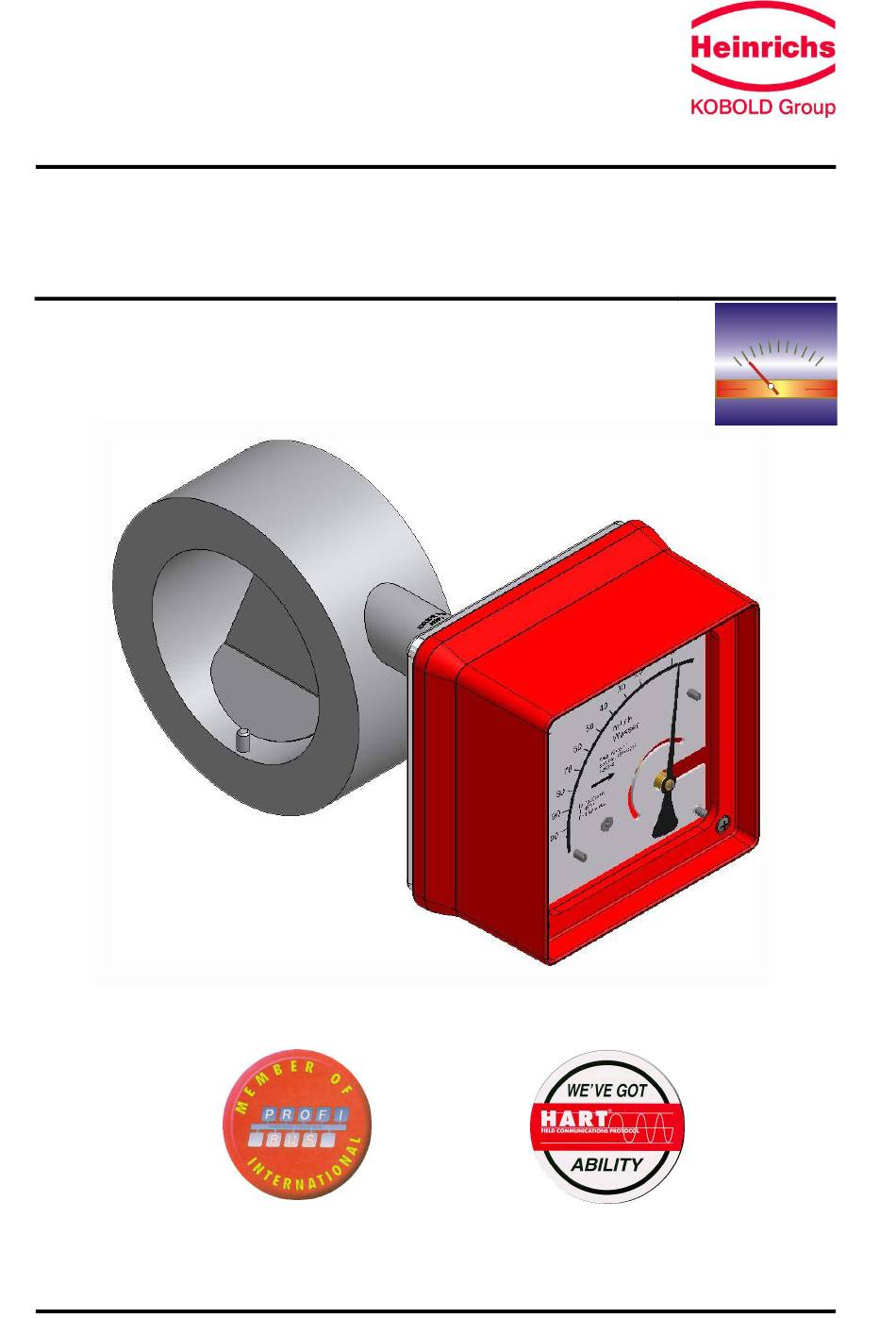

- Page 1 Paddle-Type Flowmeter for Liquids Installation and Operating Instructions...
- Page 2 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Contents IDENTIFICATION ................................. 4 Supplier/manufacturer ................................ 4 Product type ..................................4 Product name ..................................4 Issue date .................................... 4 Version no.................................... 4 APPLICATIONS ................................... 4 OPERATIONAL MODE AND SYSTEM DESIGN ......................... 4 Measuring principle ................................
-
Page 3: Table Of Contents
Heinrichs Messtechnik TSK1 Installation and Operating Instructions CONSTRUCTION DETAILS ............................... 10 Weight ..................................10 Sealing surface.................................. 10 Materials ..................................10 Dimension table for TSK1-C and TSK1-S ........................10 Dimension drawings ................................. 11 8.5.1 Aluminum indicator unit ............................... 11 8.5.2 Stainless steel indicator unit ............................13 ELECTRICAL CONNECTION ............................ - Page 4 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Introduction Operational mode and system design These Installation and Operating Instructions serve as a tool for the correct installation, operation and maintenance of the Measuring principle device. They are a supplement to the TSK Device If a medium flows with sufficient velocity through the Description.
- Page 5 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Measuring range table Nominal Measuri Measuring range for Pressure loss size (DN) water at 1000 kg/m3 (mbar) 1,5 – 10 3 – 30 1,5 – 14 4 – 30 4 – 24 10 – 60 6 –...
- Page 6 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Installation conditions Analog output with the KINAX 3W2 angle- The measuring device can be installed vertically or of-rotation transmitter horizontally (according to the direction of flow indicated in the order). The nominal size of the product line to be The signal output of the angle-of-rotation transmitter is connected must correspond to the nominal size of the factory-calibrated to the scale values.
- Page 7 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Basically, avoid activation using solenoid valves. vertical: from the top to the bottom Use connecting bolts and gaskets in the prescribed dimensions. The gaskets must be suitable for the operating pressure, the temperature and the measured medium. With PTFE- and PP coated devices, use gaskets whose interior and exterior diameter correspond to the sealing strip of the device.
- Page 8 Heinrichs Messtechnik TSK1 Installation and Operating Instructions 7.1.4 Operation in hazardous areas 7.1.4.2.1 Marking for the device when the 7.1.4.1 Without electrical equipment SJ 3,5…N… limit transducer is built in The basic version of the flow meter is a non-electrical device PTB 99 ATEX 2219 X without its own ignition sources and meets DIN EN 13463-1 II 2G Eex ia IIC T6-T4...
- Page 9 Heinrichs Messtechnik TSK1 Installation and Operating Instructions 7.2.2 Storage temperature NAMUR recommendation NE 21 The storage temperatures are identical to the ambient temperature ranges. Fluid conditions 7.2.3 Climatic category 7.3.1 Fluid temperature ranges Weather-protected and/or unheated locations, class C according to IEC 654 Part 1 Type Fluid temperature TSK1-C/S...
-
Page 10: Construction Details
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Sealing surface Construction details The sealing surface can be supplied with groove or ring joint The measuring device consists of a sandwich-type fitting Materials (mounting length 64 mm), which can be installed between flanges. -
Page 11: Dimension Drawings
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Dimension drawings 8.5.1 Aluminum indicator unit Flow measurement from left to the right Flow measurement from right to the left Page 11 of 27... - Page 12 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Direction of flow: from the top to the bottom Direction of flow: from the bottom to the top Page 12 of 27...
-
Page 13: Stainless Steel Indicator Unit
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 8.5.2 Stainless steel indicator unit Flow measurement from left to the right Flow measurement from right to the left Page 13 of 27... - Page 14 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Direction of flow: from the top to the bottom Direction of flow: from the bottom to the top Page 14 of 27...
-
Page 15: Electrical Connection
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Electrical connection Wiring To connect the auxiliary power, remove the indicator cover, insert the connector cable into the cable gland and attach it to the terminals according to the terminal diagram. Tighten the cable gland securely, remount the indicator cover and close it tightly. Wiring diagram for ES transmitter Wiring diagram for ES transmitter with 4-20 mA output and 2 limit transducers Page 15 of 27... -
Page 16: Wiring Diagram For Es Transmitter With 4- 20 Ma Output, Pulse Output And Limit Transducer
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Wiring diagram for ES transmitter with 4- 20 mA output, pulse output and limit transducer Wiring diagram for inductive limit transducers Page 16 of 27... -
Page 17: Wiring Diagram For Kinax 3W2 Transmitter With 4-20 Ma Output, 2 Wires
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Wiring diagram for KINAX 3W2 transmitter with 4-20 mA output, 2 wires Wiring diagram for KINAX 3W2 transmitter with 4-20 mA output, 3 wires Page 17 of 27... -
Page 18: Wiring Diagram For Kinax 3W2 Transmitter With 4-20 Ma Output, 4 Wires
Heinrichs Messtechnik TSK1 Installation and Operating Instructions Wiring diagram for KINAX 3W2 transmitter with 4-20 mA output, 4 wires Wiring diagram for KEM 1 and KEM 2 double-throw microswitches Page 18 of 27... -
Page 19: Indicator Unit
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 10 Indicator unit 15 Safety instructions Customized product scale ES transmitter with freely programmable user interface 15.1 Intended use Parameters may be changed based on the ES The TSK paddle-type flowmeter may be used only for flow Operating Instructions. -
Page 20: Trouble Shooting
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 18 Trouble shooting Indicator window clouds over: Water in the indicator unit. Indicator cover is not tight enough: Adjust the cover seal, tighten the cover. Window is opaque: Corrosive atmosphere, ventilate. Window ices over due to cold and damp atmosphere: The device can be equipped at the factory with an air/nitrogen flush. -
Page 21: Decontamination Certificate For Device Cleaning
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 21 Decontamination certificate for device cleaning Company: ....... City: ........Department: ......Name: ......Tel. No.: ......This paddle-type flowmeter type TSK-..was operated using the measured medium..............Since this measured medium is dangerous in water/poisonous/corrosive/flammable, we have checked that all hollow spaces of the device are free of these materials* neutralized and flushed all hollow spaces of the device*... -
Page 22: Ec Type Examination Certificates
Heinrichs Messtechnik TSK1 Installation and Operating Instructions 22 EC Type Examination Certificates Page 22 of 27... - Page 23 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Page 23 of 27...
- Page 24 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Page 24 of 27...
- Page 25 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Page 25 of 27...
- Page 26 Heinrichs Messtechnik TSK1 Installation and Operating Instructions Page 26 of 27...
-
Page 27: Sales Representatives
Heinrichs Messtechnik TSK Installation and Operating Instructions 23 Sales representatives Internet: http://www.heinrichs.eu/ 24 Notes Seite 27 von 27...
