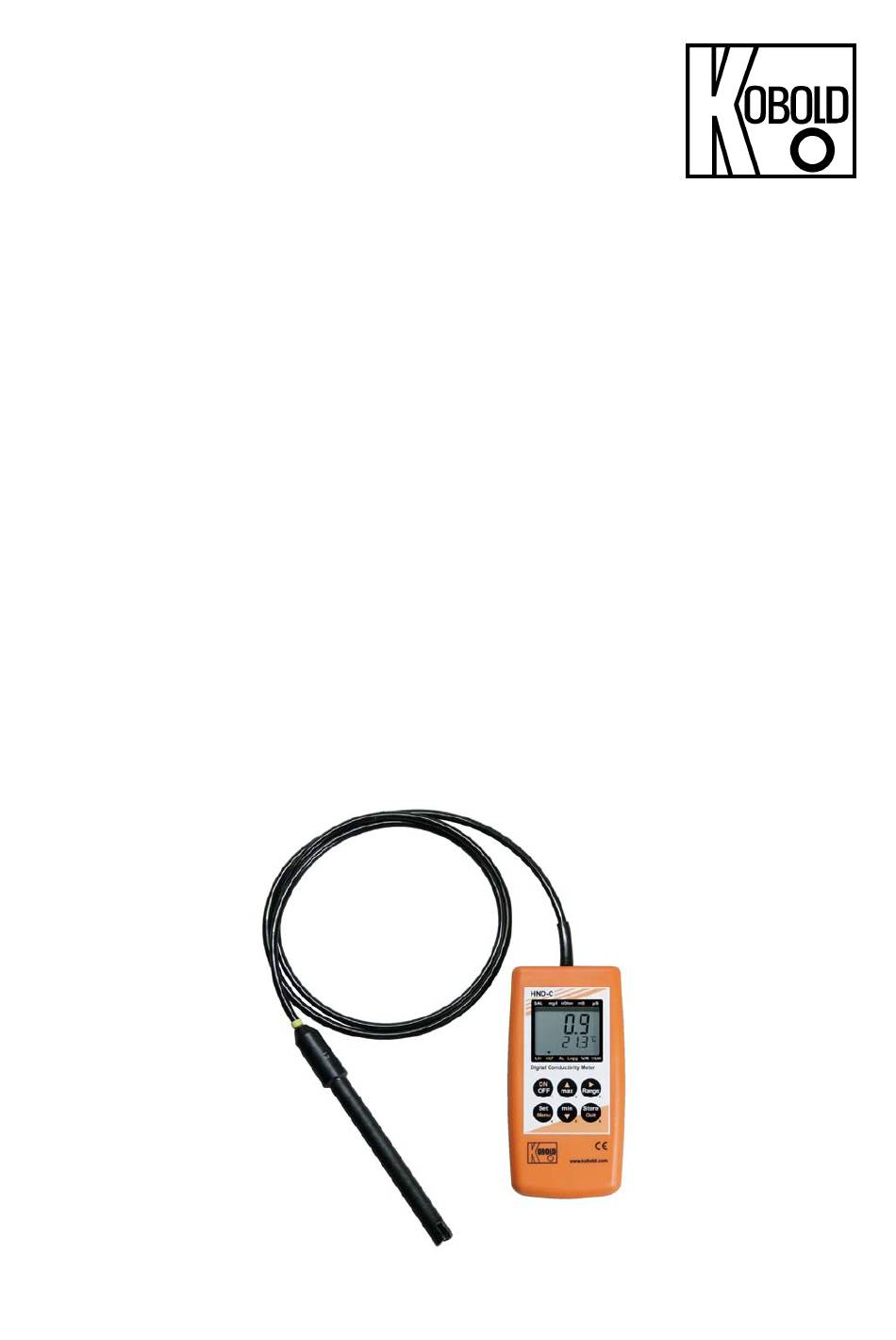

- Page 1 Operating Instructions Hand-held Conductivity Measuring Units Model: HND-C110...
-
Page 2: Table Of Contents
Maintenance ....................20 15.1 Battery change ................... 20 Technical Information .................. 20 Order Codes ....................22 17.1 Accessories ..................22 EU Declaration of Conformance ..............23 page 2 HND-C110 K05/0422... - Page 3 HND-C110 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com HND-C110 K05/0422 page 3...
-
Page 4: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 5: Operating Principle

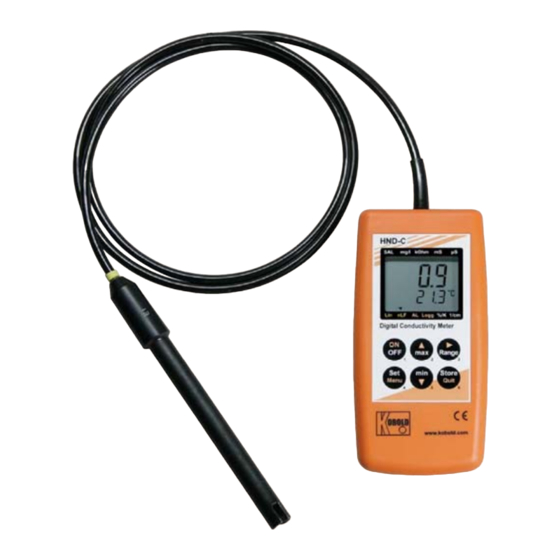

HND-C110 5. Operating Principle The KOBOLD hand-held conductivity measuring units of model HND-C110 is a compact conductivity measuring units with solidly connected probes that can be used universally. Due to the double display, both the conductivity and the temperature value can be displayed simultaneously. The HND-C110 model offers functions like minimum/maximum value memory, hold function, auto-off function, and AutoRange (automatic adjustment of the optimum measuring range). -
Page 6: Operation / Configuration / Adjustments
In case of doubt, please return the device to manufacturer for repair or maintenance. 7.2 Connections Interface: Connection for electrically isolated interface adaptor (accessories: HND-Z031) Electrode: cable gland for fixed conductivity electrode The mains socket is located at the left side of the instrument. page 6 HND-C110 K05/0422... -
Page 7: Pop-Up Clip
- The device with pop-up clip at position 90° can be set up on a table, etc. - The device with pop-up clip at position 180° can be suspended from a screw or the magnetic holder HND-C110 K05/0422 page 7... -
Page 8: Pushbuttons
HND-C110 7.3.1 Displays 7.4 Pushbuttons page 8 HND-C110 K05/0422... -
Page 9: Start Operation
If the range selection is set to „Auto Range“, the range with the best resolution is automatically selected. However, interface operation requires a manual/fixed selection of the measuring range from the table above (No interface operation with Auto-range!). HND-C110 K05/0422 page 9... -
Page 10: Resistivity Measurement
This may be done by comparison with known reference solutions or by actually evaporating a certain amount of solution with determined conductivity and subsequent weighing of the dry residue. page 10 HND-C110 K05/0422... -
Page 11: Salinity Measuring
The conductivity of aqueous solutions depends on its temperature. The temperature dependency is strongly dependent on the type of solution. The temperature compensation recalculates solutions’ conductivity to a consistent reference temperature. The most common reference temperature is 25 °C. HND-C110 K05/0422 page 11... -
Page 12: Device Configuration
Pressing “menu” and “store” at the same time for more than 2 seconds will reset the device to factory defaults. If no key is pressed for more than 2 minutes the configuration will be aborted. All changes will be discarded! page 12 HND-C110 K05/0422... - Page 13 Auto Power-Off: Selection of power-off delay 1…120 Power-off delay in minutes Device will automatically switch off as soon as this time has elapsed if no key is pressed/no interface communication takes place. Automatic power-off function deactivated (continuous operation) HND-C110 K05/0422 page 13...
-
Page 14: Universal Output
(channel 1) temperature (channel 2) resistivity (channel 3) TDS (channel 4) and/or salinity (channel 5). If you want to use the interface functions make sure to switch off the Auto-Range function. The device has 2 channels: page 14 HND-C110 K05/0422... -
Page 15: Adjustment Of Temperature Input
Displayed value = measured value – OFFS Zero point and slope correction: Displayed value = (measured value – OFFS) * (1 + SCAL / 100) Displayed value °F = (meas. value °F - 32°F - OFFS) • (1 + SCAL / 100) HND-C110 K05/0422 page 15... -
Page 16: Automatic Adjustment/Calibration Of Cell Correction
Conductivity of solution at solution temperature 25 °C: Conductivity real = 1413 μS cm-1 Cell correction c = conductivity real / conductivity displayed [cm-1] = 1413 / 1970 * cm-1 = 0.942 cm-1 (Enter CELL Corr of 0.942) page 16 HND-C110 K05/0422... -
Page 17: Glp
Change between the different calibration data sets Quit calibration data set display 14.3 Real Time Clock (“CLOC”) The real time clock is used for chronological assignment of the calibration points. Please check the settings when necessary. HND-C110 K05/0422 page 17... -
Page 18: Accuracy Check / Adjustment Service
Basic settings can only be checked and – if necessary – corrected by the manufacturer. A calibration protocol is enclosed to the device ex works. This documents the precision reached by the production process. page 18 HND-C110 K05/0422... -
Page 19: Error And System Messages
If “bat” is flashing, the battery will be exhausted soon. Further measurements are possible for short time. If “bat” is displaced continuously the battery is ultimately exhausted and has to be replaced. Further measurements aren’t possible anymore. HND-C110 K05/0422 page 19... -
Page 20: Maintenance
0.0...200.0 mS/cm (manually adjustable or automatically) • Temperature -5.0...+100.0 °C 23.0...212.0 °F Accuracy: (± 1 digit, at nominal temperat. 25 °C) • Conductivity ±0.5 % MV ±0.3 % FS or ±2 µS/cm • Temperature ±0.2 K page 20 HND-C110 K05/0422... - Page 21 Automatic-off function: 1...120 min (can be deactivated) AutoRange: Automatic measuring range adjustment (can be deactivated) Automatic temperature compensation Replace battery display Resistivity, salinity, and TDS-determination Temperature coefficients that can be selected: Natural water, linear compensation or no compensation Increased temperature measuring range HND-C110 K05/0422 page 21...
-
Page 22: Order Codes
Interface converter on USB, galvanically isolated HND-Z033 Adapter RS232 converter on USB-interface Software for recording measurement data on a computer, for BUS-S20M instruments of the HND-series without logger function *observe instrument dimension Additional accessories upon request. page 22 HND-C110 K05/0422... -
Page 23: Eu Declaration Of Conformance
HND-C110 18. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Hand-held Conductivity Measuring Units Model: HND-C110 to which this declaration relates is in conformity with the standards noted below: EN 61326-1:2013...
