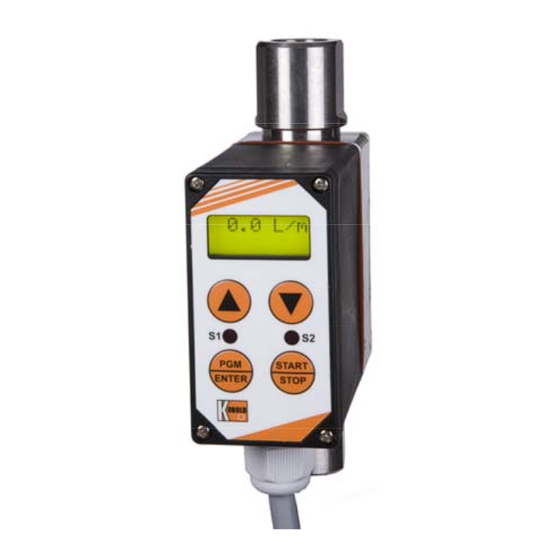

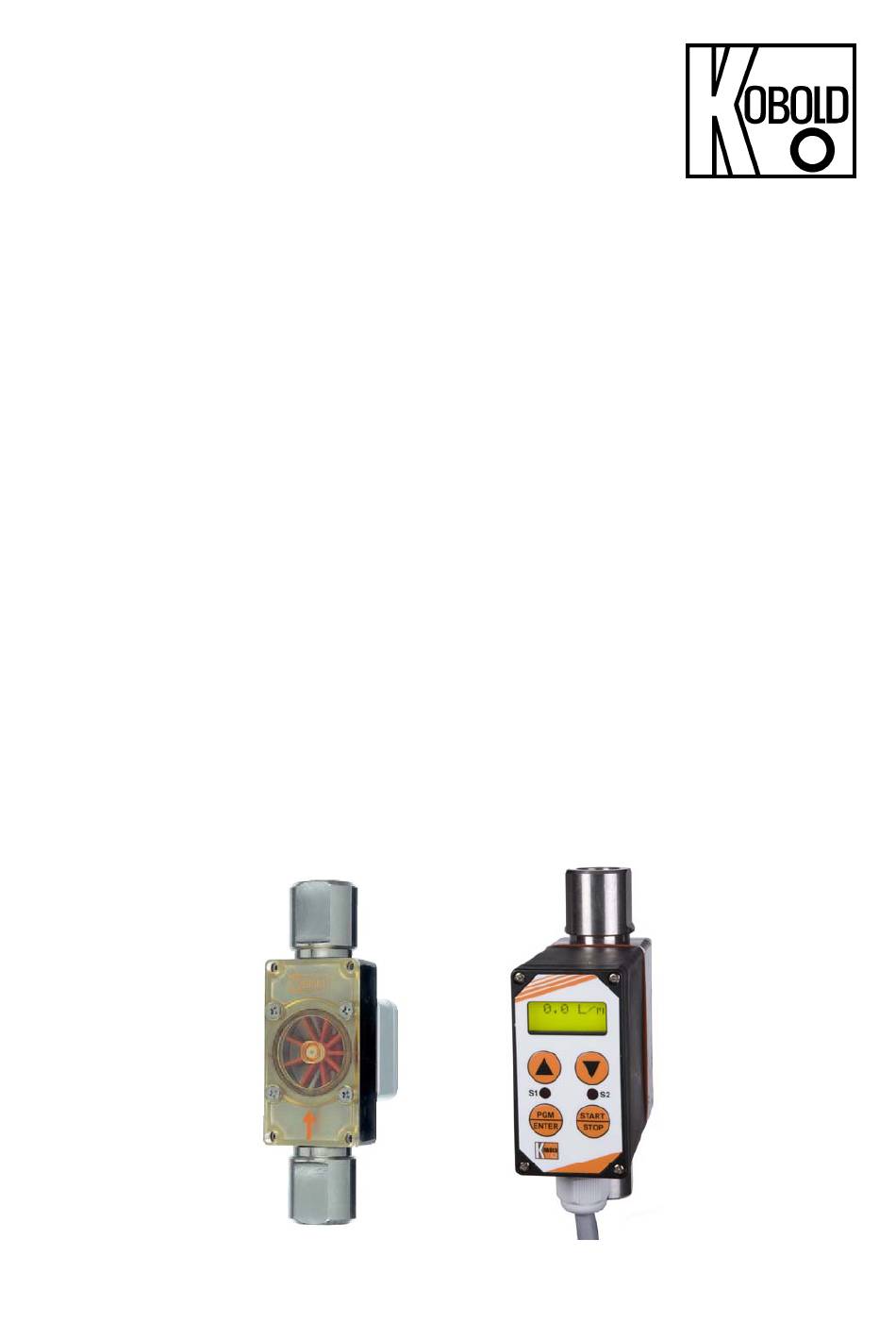

- Page 1 Operating Instructions Flow Monitor Model: DF-...Hxx3K DF-...IHx3K DF-...KLxxx DF-...DLxxx DF-...ZLxxx...
-
Page 2: Table Of Contents
EU Declaration of Conformance ..............13 UK Declaration of Conformity ..............15 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com Page 2 DF K11/0623... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Instrument Inspection
3. Instrument Inspection Instruments are inspected before shipping and sent out in perfect condition. Should damage to a device be visible, we recommend a thorough inspection of the delivery packaging. In case of damage, please inform your parcel service / forwarding agent immediately, since they are responsible for damages during transit. -
Page 5: Regulation Use
4. Regulation Use The units of model DF are used for measurement of liquid flow. Only low viscosity fluids which are chemically compatible with the materials used in the sensor housing are allowed to be measured. If using higher viscosity media, large measuring errors can occur. -
Page 6: Operating Principle
Switching electronics or vane front may be rotated at will for ease of viewing (while in service). The KOBOLD measuring sensors are also available without a compact electronic. The linear flow proportional pulse signal provided by the sensor can be controlled by customer own electronics. -
Page 7: Electrical Connection
It must be ensured that the instrument housing is continuously filled with the flow medium, especially for flows from top to bottom. No straight runs are necessary at inlet and outlet. wrong! Sealing of the connection threads should be carried out with PTFE tape or similar. - Page 8 Attention! Incorrect wiring will lead to damage of the unit’s electronics. 7.2 DF-…KLxxx, DF-…ZLxxx, DF-…DLxxx Attention! Make sure that the voltage value of your instrument is 24 V Make sure that the supply wires are de-energised. Connect the wires in accordance with the wiring diagram. Wire DF-…KLxxx DF-…ZLxxx...
-
Page 9: Mechanical Commissioning
8. Mechanical Commissioning To avoid pressure surges, the flow medium should be slowly introduced into the instrument. Attention! Pressure surges from solenoid valves, ball valves or similar may result in damage to the instrument (water hammer). In the operating condition it must be checked that the instrument housing is continuously filled with the flow medium. -
Page 10: Maintenance
11. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 12. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com... -
Page 11: Recommended Spare Parts
14. Recommended Spare Parts Rotating vane 1.1) PTFE 1.2) POM 1.3) PTFE with saphire bearing Axle / bearing 2.1) St. St./PTFE 2.2) Ceramic/PTFE 2.3) Saphire/Saphire (only for 1.3) Cover for sensor 3.1) Trogamide 3.2) Polysulfone housing Cover for electronic 4.1) NBR housing. -
Page 12: Disposal
15. Disposal Note! Avoid environmental damage caused by media-contaminated parts Dispose of the device and packaging in an environmentally friendly manner Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. -
Page 13: Eu Declaration Of Conformance
16. EU Declaration of Conformance We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flow Transmitter Model: DF-..HN.. and DF-..HP.. to which this declaration relates is in conformity with the standards noted below: EN 61000-4-4:2012 Electromagnetic compatibility (EMC) - Part 4-4: Testing and measurement... - Page 14 We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flow Meter Model: DF-…KLxxx Flow Counter Model: DF-…ZLxxx Dosing Unit Model: DF-…DLxxx to which this declaration relates in conformity with the standards noted below: EN IEC 61326:2021 Electrical equipment for measurement, control and laboratory use –...
-
Page 15: Declaration Of Conformity
17. UK Declaration of Conformity We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flow Transmitter Model: DF-..HN.. and DF-..HP.. to which this declaration relates is in conformity with the standards noted below: BS EN 61000-4-4:2012 Electromagnetic compatibility (EMC). - Page 16 We, KOBOLD-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Flow Meter Model: DF-…KLxxx Flow Counter Model: DF-…ZLxxx Dosing Unit Model: DF-…DLxxx to which this declaration relates in conformity with the standards noted below: BS EN IEC 61326-1:2021 Electrical equipment for measurement, control and laboratory use.
