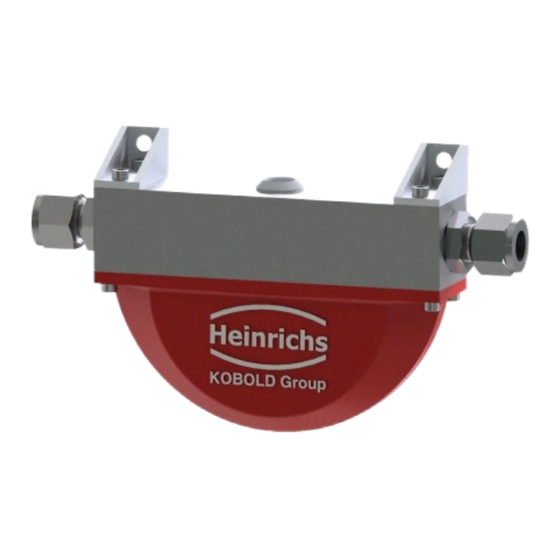

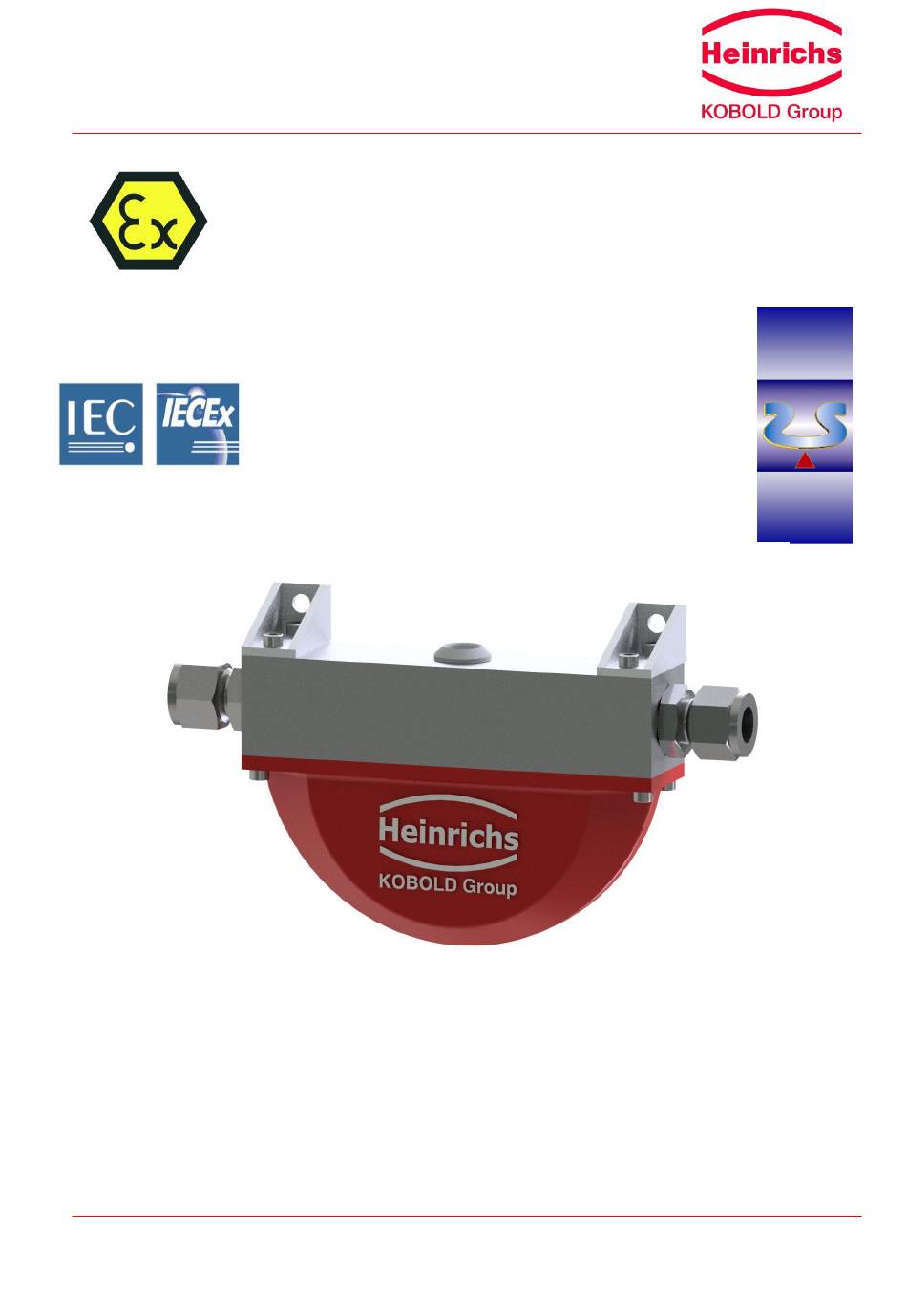

- Page 1 Coriolis mass flow sensors Supplementary Operating Manual for explosion-proof Flow-sensors Please read the instructions carefully and store them in a safe place OPERATING MANUAL FOR Page 1 of 21 HPC EXPLOSION-PROOF FLOW METERS...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ......................3 STEPS PRIOR TO OPERATION ................4 Installation, mounting, commissioning and maintenance..........4 Hazard warnings ......................4 1.2.1 Danger ........................5 1.2.2 Warning ........................5 1.2.3 Caution ........................5 1.2.4 Note ......................... 5 Proper use of the device ....................5 IDENTIFICATION ......................6 Version / date ......................... -
Page 3: Introduction
Introduction Shipping and storage The device is to be safeguarded against moisture, dirt, impact and damage. Product inspection Upon receipt of the product, the consignment should be checked for completeness. The data of the device have to be compared with the packing slip and the order documents Notify us of any shipping damage immediately upon receipt of the product. -
Page 4: Steps Prior To Operation
Steps prior to operation Prior to installation and operation, it is essential that the operator familiarizes himself with all of the instructions and information contained in the manual for non-explosion proof Coriolis flow meters as well as the present instructions. If any part of either manual is missing, contact Heinrichs Messtechnik GmbH to request a new manual. -
Page 5: Danger
1.2.1 Danger Means that failure to take the prescribed precautions will result in death, severe bodily injury, or substantial material damage. 1.2.2 Warning Means that failure to take the prescribed precautions could result in death, severe bodily injury, or substantial material damage. 1.2.3 Caution Means that light bodily injury or damage to assets can occur if the precaution is ignored. -
Page 6: Identification
Identification Manufacturer Heinrichs Messtechnik GmbH Robert-Perthel-Strasse 9 D-50739 Cologne Phone: +49 221 49708-0 Fax: +49 221 49708-178 Internet: http://www.heinrichs.eu E-mail: info@heinrichs.eu Product type Mass flow Sensor for liquid and gaseous products Product name HPC-0x Coriolis mass flow sensors Version / date Version: HPC_EX_BA_02_EN Dated: 17/01/2020 (dd.mm.yyyy) Page 6 of 21... -
Page 7: Specifications
Specifications Description of the HPC Mass-Flow Sensor The HPC sensor has an “Intrinsic safety” type of protection and is equipped with the following four independent potential-free and isolated circuits: Excitation circuit Sensor circuit 1 Sensor circuit 2 ... -
Page 8: Mounting And Installation
Mounting and Installation The mounting instructions for the standard sensor also apply to the explosion-proof sensor. 3.3.1 Thermally insulated sensor In explosive atmospheres the sensor may also be outfitted with thermal insulation. However, so not to impair the sensors thermal ratings, the sensors neck cooling ribs of the high- temperature version shall not be included in the insulation. - Page 9 3.3.3.1 Pin assignment of the Sensor cable Designation Terminal / Pin designation Type of protection Ex ia Sensor lines SENSOR1 + SENSOR1 - SENSOR2 + SENSOR2 - TIk- Temperature sensor - Temperature sensor + TIk+ EXCITER Coil EXCITER Coil Shield Shield Note: Sensor and transmitter are always mounted separately.
-
Page 10: Ec Type-Examination
EC Type-Examination The sensors are certified with the following examination certificates: ATEX CML 19ATEX2096X Standard Version High Temperature Version II 1G Ex ia IIC T4 Ga II 1G Ex ia IIC T4 Ga II 1D Ex ia IIIC T135°C Da II 1D Ex ia IIIC T135°C Da II 2D Ex ia IIIC T190°C/T240°C Db IECEx... -
Page 11: Ambient Temperature Range Ta
3.4.1.3 Temperature sensor circuits (Pins 5 to 8) Voltage 30 V Current 10 mA Power 0.04 W Effective internal capacitance negligible Effective internal inductance negligible 3.4.2 Ambient temperature range Ta The equipment’s temperature class, surface temperature and equipment protection level are dependent upon the connection type, process temperature and ambient temperature as follows: Table1: Temperature Classes Connection via... -
Page 12: Installation And Commissioning
Installation and commissioning Mounting The mounting instructions for the standard sensor also apply to the explosion-proof sensor. This handbook complements that of the standard sensor. The sensor may only be separately installed and connected with a special sensor cable, whereby the maximum CL and LL of the connection cable must be observed. Refer to the standard operating manual for the connection scheme of the sensor General conditions for safe operation a) If the conditions described in this document are not adhered to or if there is any... -
Page 13: Requirements For Installation Dust Environments
h) The operational wall thickness of the stainless steel flow tubes are < 1 mm. Therefore, in cases where the sensor is operated in zone 1 atmospheres and where zone 0 may be present in tubes, the operator is to ensure that in the area of these tubes, no risk of damage through the medium or mechanical assertion shall occur. -
Page 14: Maintenance And Repair Work
Maintenance and repair work Definition of terms according to IEC 60079-17: Maintenance: defines a combination of any actions carried out to retain an item in, or restore it to, conditions in which it is able to meet the requirements of the relevant specification and perform its required functions. -
Page 15: Fault Elimination
Recommended inspection intervals Detailed Visual inspection Close inspection inspection Activity 3-month interval 6-month interval 12-month interval Visual inspection of equipment for intactness, If necessary, at shorter intervals removal of dust settlements Check of electrical system for intactness and functionality Check of entire system User's responsibility Fault elimination No repairs or modifications may be performed on equipment that is operated in conjunction... -
Page 16: Model Code
Model Code The following table depicts the model-code of the HPC sensor. The Ex relevant positions of the model code are marked yellow: HPC- A B C - D E F G - H I J K - L M - N O - P - Q Pos. -
Page 17: Relevant Standards For Hazardous Locations
Relevant Standards for Hazardous Locations ATEX • DIN EN 60079-0:2012 + A11:2013 Explosive atmospheres – Part 0: General Requirements • DIN EN 60079-11:2012 Explosive atmospheres – Part 11: Equipment protection by intrinsic safety “i” IECEx • IEC EN 60079-0:2011 Edition 6, modified Cor. 2012 + Cor. 2013 Explosive atmospheres –... -
Page 18: Declaration Of Conformity
Declaration of Conformity EU-Konformitätserklärung EU-Declaration of Conformity 19.4142.02 Hersteller: Heinrichs Messtechnik GmbH Manufacturer: Robert-Perthel-Strasse 9 50739 Köln Produktbeschreibung: Coriolis Durchflussmessgerät UMC4 für Verwendung mit Product description: den Sensorreihen TM* und HPC Coriolis Flowmeter UMC4 for use with the Sensor series TM* and HPC Hiermit erklären wir, in alleiniger Verantwortung, dass das oben genannte Messsystem den Anforderungen der folgenden EU-Richtlinien, einschließlich allen bis heute veröffentlichten Änderungen... - Page 19 Anhang N zur EU-Konformitätserklärung Annex N of the EU-Declaration of Conformity . 19.4142.02 Produktbeschreibung: Coriolis Durchflussmessgerät UMC4 für Verwendung mit Product description: den Sensorreihen TM* und HPC Coriolis Flowmeter UMC4 for use with the Sensor series TM* and HPC Die Konformität mit den auf Seite 1 genannten Richtlinien diese Erklärung wird nachgewiesen durch die Einhaltung folgenden Normen (abhängig von Gerätvariant): Conformity to the Directives referred to on Page 1 of this Declaration is assured through the application of the following standards (depending on version of device):...
- Page 20 Anhang X zur EU-Konformitätserklärung Annex X of the EU-Declaration of Conformity . 19.4142.02 Produktbeschreibung: Coriolis Durchflussmessgerät UMC4 für Verwendung mit Product description: den Sensorreihe TM* Coriolis Flowmeter UMC4 for use with the Sensor series Gerät Zulassungen / Device certification EG-Baumusterprüfbescheinigung Nachtrag Kennzeichnung EC-type examination certificate...
- Page 21 Version / Printed: 17.01.2020 / 17.01.2020 Dimensions, weights and other File: HPC_EX_BA_02_EN Heinrichs Messtechnik GmbH technical data are subject to change Robert-Perthel-Strasse 9 without notice. D 50739 Cologne Telephone: +49 (221) 4 97 08 - 0 Telefax: +49 (221) 4 97 08 - 178 Internet: http://www.heinrichs.eu Email :...
