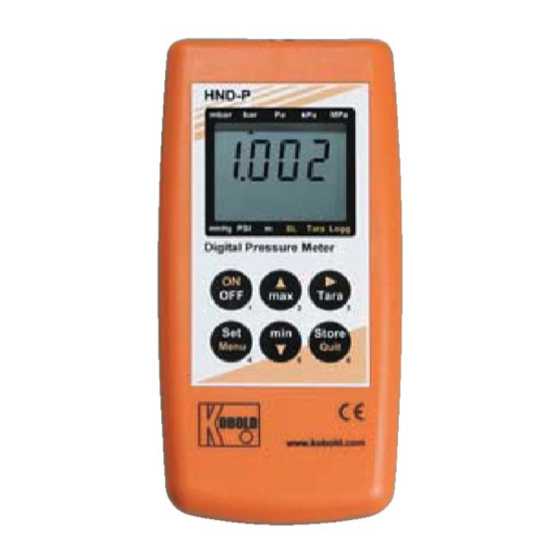

Hand-held pressure measurind devices for external pressure sensors

Advertisement

Quick Links

Operating Instructions
for
Hand-held Pressure Measuring Devices
for External Pressure Sensors
Model: HND-P210

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HND-P210 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kobold HND-P210

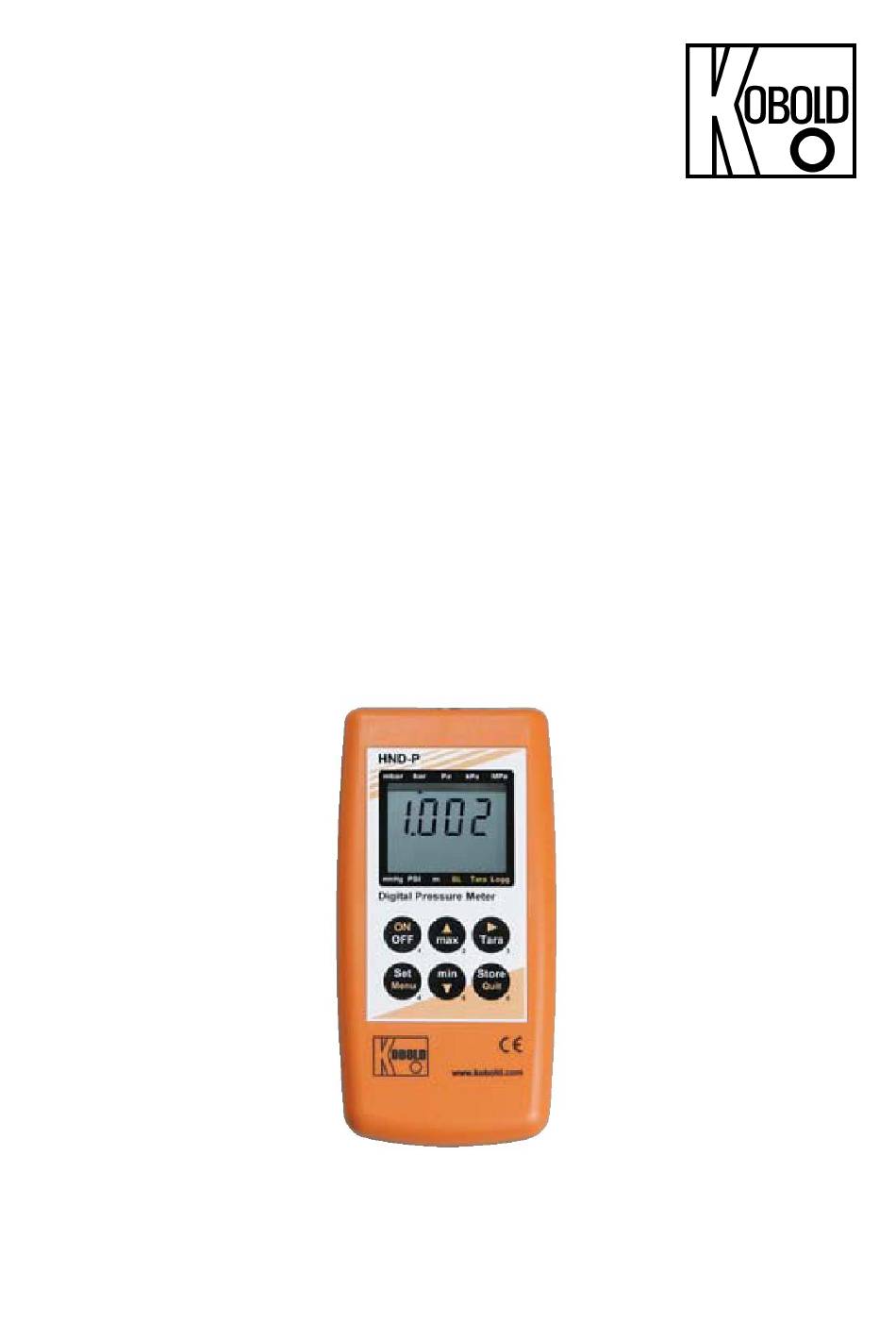

  • Page 1 Operating Instructions Hand-held Pressure Measuring Devices for External Pressure Sensors Model: HND-P210...
  • Page 2: Table Of Contents

    Pressure sensors ................20     11.2 Accessories ..................21     EU Declaration of Conformance ..............22     Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 HND-P210 K08/0422...
  • Page 3: Note

    Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.
  • Page 4: Operating Principle

    The HND-P210 types also have a logger function, a peak value memory, or a minimum/maximum alarm. 6. Electrical Connection Mains Operation With Power Supply Warning: When using a power supply please note that operating voltage has to be 10.5 to 12 V .
  • Page 5: Operation

     the device is not working as specified  the device has been stored under unsuitable conditions for a longer period of time. In case of doubt, please return device to manufacturer for repair or maintenance. HND-P210 K08/0422 page 5...
  • Page 6: Start Of Operation

    When tara function is activated, the arrow "Tara" appears in the display. To deactivate tare function press ´Tara´ for >2 seconds. Please Note: Activating/deactivating tara clears the max- & min- memories. page 6 HND-P210 K08/0422...
  • Page 7: Configuration

    The parameters can be changed with  (key 2) or  (key 5). Pressing Menu again jumps back to the main configuration menu and saves the settings. Quit (key 6) finishes the configuration and returns to standard measuring operation. HND-P210 K08/0422 page 7...
  • Page 8 CYCL Store: logger function ‚individual value logger‘ Stor no logger function Cycle time of cyclic logger [seconds] CYCL 1..3600 Low-power logger with very low power consumption Lo.Po on/oFF only for cyclic logger and slow measuring rate) page 8 HND-P210 K08/0422...
  • Page 9 (slow, fast, peak detect). As long as not enough values are collected (selected averaging time) to calculate a average value, the upper display shows “----“, the lower display a ‘countdown‘. During an active low-power-logging procedure the averring is always deactivated Function of min/max-value memory during averaging: HND-P210 K08/0422 page 9...
  • Page 10 The real time clock is used for the logger function: Recorded values are also containing the point of time, when they were measured. Please check the settings when necessary. If the battery was replaced the refering menu ‚CLOC‘ will automatically be started. page 10 HND-P210 K08/0422...
  • Page 11: Measuring Of Water Level - Display Unit [M]

    For the read out of the logger the sensor has to be kept connected! Max. number of measurings: A measuring contains: - current measuring value at the time of recording - min peak, max peak since the last recording - max peak since the last recording HND-P210 K08/0422 page 11...
  • Page 12 - current measuring value at the time of recording - min peak, max peak since the last recording rAtE FASt,P.dEt - arithmetic mean value since the last recording - min peak, max peak since the last recording page 12 HND-P210 K08/0422...
  • Page 13 When “Store” is pressed, the choice for clearing the logger memory will be displayed: Clear the last Clear all Clear nothing recording recordings (cancel menu) sequence The selection can be made by  (key 2) and  (key 5). "Quit" (key 6) enters the choice. HND-P210 K08/0422 page 13...
  • Page 14: The Serial Interface

    Read min display range Read logger filepointer Read max display range Read logger file info Read display range - unit Reset Read display range – decimal point Program version Logger: read data of STOR Logger Read logger channel info page 14 HND-P210 K08/0422...
  • Page 15: Pressure Connection To The Sensors

    Connect plastic tube with an internal dia of 4 mm to pressure port "A". (Port "B" is not used.) Stainless steel pressure sensors: For measurements of over-, under- or absolute pressure screw sensor to G1/4" pressure terminal or plug plastic tube to a suitable adapter. HND-P210 K08/0422 page 15...
  • Page 16: Error And System Messages

    If device should be certificated for its accuracy, it is the best solution to return it with the referring sensors to the manufacturer. Only the manufacturer is capable to do efficient recalibration if necessary, to get results of highest accuracy! page 16 HND-P210 K08/0422...
  • Page 17: Maintenance

    The measuring values can be monitored constantly for the min. and max. rails set Alarming is done by integrated horn, display and interface Real time clock: Integrated clock with date and year Logger: 2 Functions: individual value logger (“Func-Stor”) HND-P210 K08/0422 page 17...
  • Page 18 Additional fault: <1% Scope of functions Minimum/maximum value memory Hold function: »freezing« of the current value Automatic-off function: 1...120 min (can be deactivated) Zero point adjustment for connected sensor Tare function: display-, minimum/maximum values are set to zero page 18 HND-P210 K08/0422...
  • Page 19: Order Codes

    HND-P210 11. Order Codes Order-no. Housing design 1 x pressure sensor input with HND-P210 additional functions HND-P210 K08/0422 page 19...
  • Page 20: Pressure Sensors

    ** Pressure sensors HND-PS01 up to HND-PS08 are only suitable for air and non-corrosive/non-ionizing gases and liquids. Accessories for HND-PS19…PA23 Model and Code 1.2 m PVC-cable with 6-pin Mini-DIN plug and M16 socket (IP 54) HND-K31 page 20 HND-P210 K08/0422...
  • Page 21: Accessories

    PU-hose (9 bar), 6 mm external / 4 mm internal HND-Z087 PA-hose (25 bar), 6 mm external / 4 mm internal HND-K31 1.2 m PVC-cable with 6-pin Mini-DIN plug and M16 socket (IP 54) *Pay attention to instrument dimensions Additional accessories on request HND-P210 K08/0422 page 21...
  • Page 22: Eu Declaration Of Conformance

    HND-P210 12. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Hand-held Pressure Measuring Devices with External Pressure Sensors Model: HND-P210 to which this declaration relates is in conformity with the standards noted below:...
