Summary of Contents for Kobold Heinrichs KDS-K

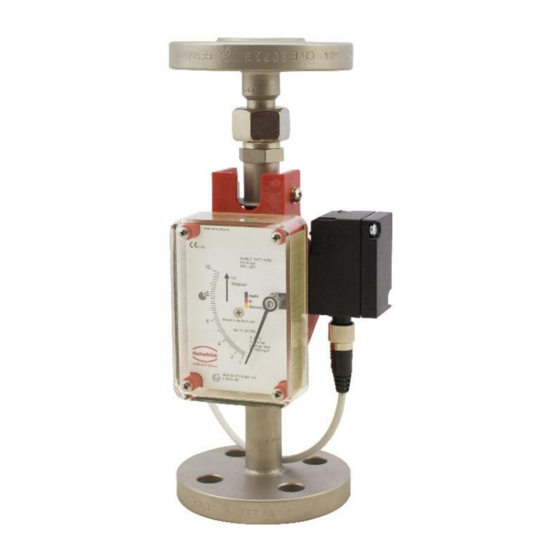

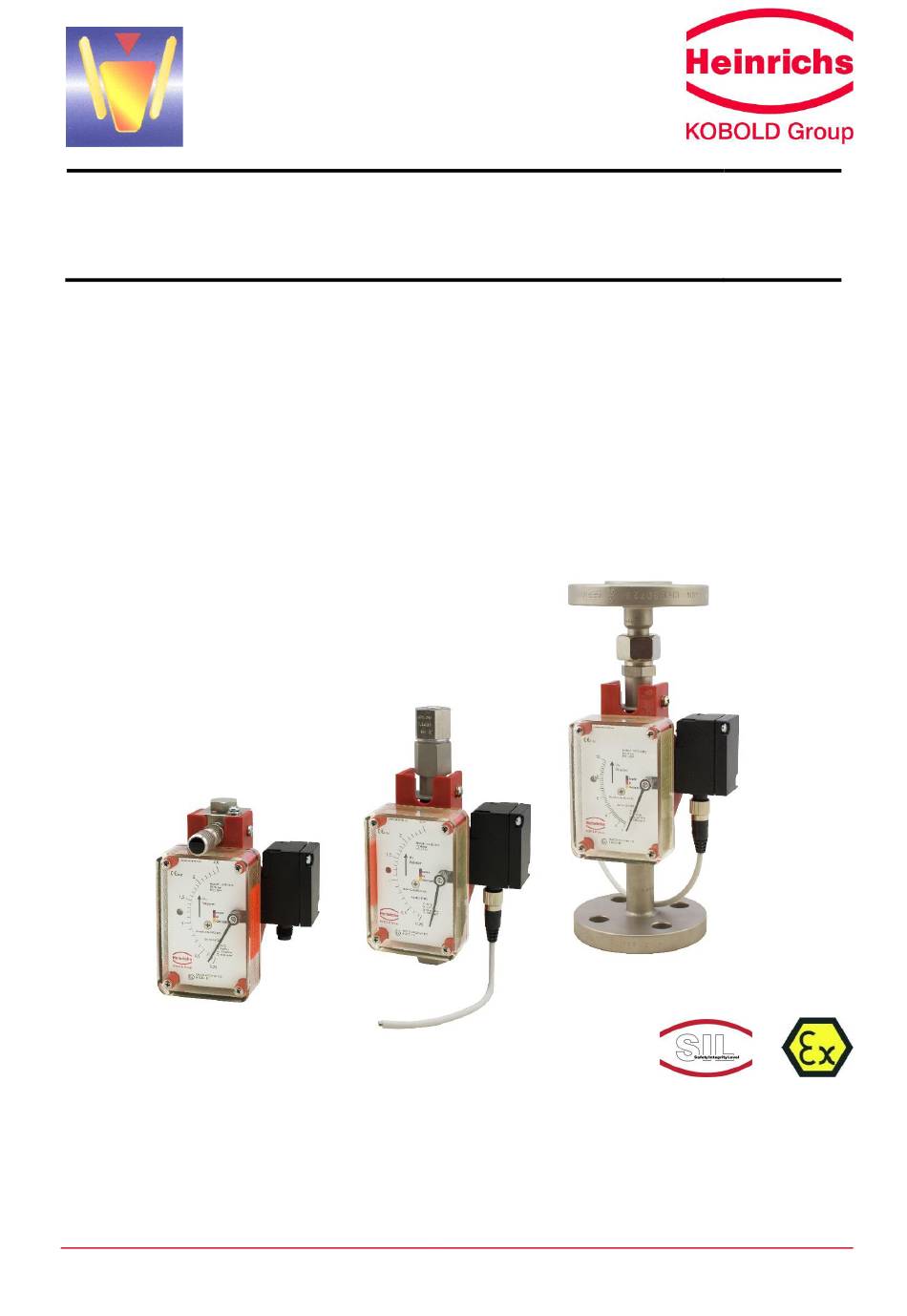

- Page 1 Variable-Area Flowmeters Operating Instructions KDS-K/C/S KDS-R KDS-(E) analogue output Betriebsanleitung bitte durchlesen und an einem sicheren Ort aufbewahren! Operating manual KDS/BGK Heinrichs Messtechnik GmbH January 2021...
-
Page 2: Table Of Contents
Heinrichs Messtechnik GmbH Contents Introduction ............................... 4 Safety instructions ............................ 4 Installation, start-up and operating personnel ..................4 Intended use .............................. 4 Packaging, mounting and shipment ......................5 Returning devices for repair and service ....................5 Identification ............................. 6 Applications ............................... 7 KDS und BGK .............................. - Page 3 Heinrichs Messtechnik GmbH 10.8 Materials ..............................20 10.9 Process connection ..........................20 Available accessories ..........................20 Electrical connection ..........................21 12.1 Wiring diagram for limit transducer ..................... 21 Connection M12 plug socket ..........................21 12.1.1 M12 standard configuration 1 x inductive sensor NJ 1.5-6.5-N ......................21 12.1.2 M12 standard configuration 2 x inductive sensors NJ 1.5-6.5-N ......................
-
Page 4: Introduction
Heinrichs Messtechnik GmbH Introduction This installation and operating manual explains how to operate, install and perform maintenance on the flowmeter. Please read the manual carefully before installing the device and putting it into operation. The manual does not apply to non-standard versions or applications. All devices are thoroughly tested and checked for order compliance prior to shipping. -
Page 5: Packaging, Mounting And Shipment
Heinrichs Messtechnik GmbH Packaging, mounting and shipment Carefully unpack the device to avoid damaging it. With the help of the delivery note enclosed in the packaging, check whether all technically relevant data coincide with your requirements. Storage and installation must be done in a clean and dry room so that contamination – especially of the interior of the fitting –... -
Page 6: Identification
Heinrichs Messtechnik GmbH Identification Manufacturer: Heinrichs Messtechnik GmbH Robert-Perthel-Str. 9 D-50739 Cologne Germany Phone: +49 221 49708-0 Fax: +49 221 49708-178 Internet: www.heinrichs.eu E-Mail: info@heinrichs.eu Product type: KDS-K/C/S and BGK: Miniature flowmeter in full-metal design based on the float principle KDS-R: Miniature flowmeter in all-metal design based on the float principle with differential pressure regulator... -
Page 7: Applications
Heinrichs Messtechnik GmbH Applications KDS und BGK The KDS and BGK flowmeters are used for measuring the flow of liquid and gaseous products in pipes as well as dosing, monitoring, adjusting and controlling them. They show the current flow quantity in volume or mass per unit in time. -
Page 8: Operational Mode And System Design
Heinrichs Messtechnik GmbH Operational mode and system design Measuring principle for BGK and KDS-K/C/S flowmeters Float principle: The product flows through the meter vertically from the bottom to the top, lifting the float until the buoyancy force and the weight of the float establish equilibrium. The height of the float is a measure of the flow quantity. KDS-K/C/S and BGK system design The meter consists of a conical fitting pipe with a float that can move vertically. -
Page 9: Input
Heinrichs Messtechnik GmbH Input Measured variable Volume flow Measuring range The lower range value is considered 10 % of the upper range value. Measuring range span: 10-100 % Smallest measuring range: 0.1-1.0 l/h water Largest measuring range: 10-100 l/h water (KDS-K/C) 20-200 l/h water (KDS-S and BGK) Regulator range Largest regulator range:... -
Page 10: Electrical Output
Electrical output Limit switches 1 or 2 limit switches: Manufacturer: Pepperl & Fuchs Type: NJ1.5-6.5N, Connection: M12 plug Ex-Marking: PTB 00 ATEX 2048 X II 2G Ex ia IIC T6-T4 Gb II 2D Ex ib IIIC T 135°C Db 1 limit switch (safety technology): Manufacturer: Pepperl &... -
Page 11: Measuring Accuracy
Heinrichs Messtechnik GmbH 8 Measuring accuracy Reference conditions: Water 20°C (air 20 °C) Measured error: ± 3 % qG 50 acc. VDI/VDE 3513 System deviation for KDS-R: ± 5.0 % of URV Repeatability: ± 1.0 % of URV KDS-R regulator: ±... -
Page 12: Conditions Of Use
Heinrichs Messtechnik GmbH 9 Conditions of use The VDI/VDE guidelines must be observed. The meter is suitable for liquid products with sufficient flowability that are free of solids, do not bond and do not tend to settle and gases with linear flow behavior and an adequate inlet pressure. -
Page 13: Switch Point Setting
Heinrichs Messtechnik GmbH 9.1.2 Switch point setting Set pointer to the desired switch point and adjust scale. Turn up switch cam so that the edge of the switch cam is located in the center of the diameter of the proximity switchAmbient conditions Ambient conditions Ambient temperature ranges... -
Page 14: Fluid Conditions
Heinrichs Messtechnik GmbH Fluid conditions Fluid temperature ranges KDS-S/C/K and BGK without limit transducer: - 40°C to + 130°C with limit transducer : - 25°C to + 100°C Fluid temperature range KDS-R Membrane: - 10°C to + 100°C Fluid pressure limit KDS-K/C: PN 40, special version up to PN 160 KDS-S... -
Page 15: Construction Details, Type Of Construction/Dimensions
Heinrichs Messtechnik GmbH 10 Construction details, type of construction/dimensions 10.1 KDS-K/C The meter consists of a conical measuring tube with a vertically movable float. All metallic wetted parts are made of 1.4404 (316L) stainless steel. The measured values are transmitted magnetically to the analog indicator unit mounted on the device. KDS-K –... -
Page 16: Kds-S
Heinrichs Messtechnik GmbH 10.2 KDS-S Process connections vertically at the top/at the bottom, mounting dimension: 180 mm (NPT ¼ " F connection) Page 16 Betriebsanleitung KDS/BGK... -
Page 17: Kds-R With ¼" Npt (F) Connection As Outlet Pressure Regulator Version
Heinrichs Messtechnik GmbH 10.3 KDS-R with ¼“ NPT (F) connection as outlet pressure regulator version The unit consists of a variable-area flowmeter with a setting valve and a differential pressure regulator mounted on the meter. The measured value is displayed on the scale of the analog indicator unit. The desired flow rate can be set using the built-in valve. -
Page 18: Kds-R With ¼" Npt (F) Connection As Inlet Pressure Regulator Version
Heinrichs Messtechnik GmbH 10.4 KDS-R with ¼“ NPT (F) connection as inlet pressure regulator version Page 18 Betriebsanleitung KDS/BGK... -
Page 19: Bgk With Flange Connection
Heinrichs Messtechnik GmbH 10.5 BGK with flange connection 10.6 KDS / BGK with M12 plug connection All KDS / BGK devices equipped with electrical contacts are connected via an M12 plug socket. 20,5 58,1 35,5 Operating Manual KDS/BGK Page 19... -
Page 20: Weights
Heinrichs Messtechnik GmbH 10.7 Weights KDS-K/C: 650 g KDS-R: 1400 g KDS-S: 620 g BGK: 2400 g 10.8 Materials - Measuring tube, float, connections: 1.4404 (316L) stainless steel - Indicator unit: Polyamide - Indicator cover: Ultramide - Setting valve: 1.4404 (316L) stainless steel - Valve sealing: KDS-K/C/R) PTFE - Tube sealing:... -
Page 21: Electrical Connection
Heinrichs Messtechnik GmbH 12 Electrical connection 12.1 Wiring diagram for limit transducer Connection M12 plug socket 12.1.1 M12 standard configuration 1 x inductive sensor NJ 1.5-6.5-N Electrical Output Function KEI 1 (NJ 1,5-6,5-N) Switch (K1) L+ to (K1) L- (Pin2) Namur Switch (K1)L+ (8,2 V (R ~ 1KΩ... -
Page 22: M12 Standard Configuration 1 X Inductive Sensor Nj 2-11 Sn
Heinrichs Messtechnik GmbH 12.1.3 M12 standard configuration 1 x inductive sensor NJ 2-11 SN Electrical Output Funktion KEI 1 (NJ 2-11-SN) Switch (K1) L+ to (K1) L- (Pin2) Namur Switch (K1) L- (K1)L+ (8,2 V (R ~ 1KΩ ) Ausgan Not used Not used 12.1.4... -
Page 23: Indicator Unit
Heinrichs Messtechnik GmbH 13 Indicator unit Analogue indicator approx. 160° with pointer Customized product scale 14 Auxiliary power for limit switch Inductive sensor NJ 1.5-6.5 N: 8.2 V (R approx. 1 kΩ ) Inductive sensor NJ 2-11 SN: 8.2 V (R approx. -
Page 24: Electrical Connection
Heinrichs Messtechnik GmbH 15.5 Electrical connection The transmitter is connected by a reverse polarity protected 4-pole M12 plug (A coding). Not used VDC (+) VDC (-) Not used 16 Use in hazardous areas Only devices with ex marking may be operated within explosive atmospheres areas. Ambient temp. -
Page 25: Atmospheric Conditions
Heinrichs Messtechnik GmbH 16.1 Atmospheric conditions In accordance with DIN EN 1127-1, a “potentially explosive atmosphere“ is defined as a mixture of air and combustible gases, vapors, mist or dust under atmospheric conditions. Such conditions are defined in DIN EN ISO 80079-36, para. 1, with values Tatm = -20 °C to +60 °C and Patm = 0.8 to 1.1 bar. Outside this range, safety parameters for most ignition sources are not available. -
Page 26: Mechanical Stability
Heinrichs Messtechnik GmbH 16.4 Mechanical stability The flow meters have undergone an impact test to DIN EN ISO 80079-36.for a low level of mechanical hazard. Additional protective measures are required if there is a higher mechanical hazard level. 16.5 Without electrical equipment The basic version of the flow meter is a non-electrical device without its own ignition source and meets DIN EN ISO 80079-36 requirements. -
Page 27: Analog Output 4-20Ma
Heinrichs Messtechnik GmbH 16.6.2 Analog output 4-20mA Parameters and Markings: Manufacturer Heinrichs Messtechnik BVS 12 ATEX E 093 X Type KDSE, 4-20 mA current loop IECEx BVS 12.0061X passive; 14-30 V DC II 2G Ex ib IIC T4 G Load max. 500Ω , ; connection with M12 plug II 2D Ex ib IIIC T135°C Db When using the device in hazardous areas please read the explosion supplementary instructions of the electronic module type KDSE. -
Page 28: Standards And Directives
Heinrichs Messtechnik GmbH 18 Standards and directives Directive 2014/68/EU (PED directive - Pressure Equipment) Production in accordance with AD 2000 guidelines and HPO approval (TRB200/TRD201) TÜV approval for welding requirements in accordance with EN ISO 3834-3: Measuring range rated and converted to other products according to guidelines VDE/VDI 3513 Directive 2014/34/EU (ATEX Directive) DIN EN ISO 80079-36 Non-electrical equipment for use in potentially explosive atmospheres –... -
Page 29: Trouble Shooting
Heinrichs Messtechnik GmbH 21 Trouble shooting Device shows incorrect values: Compare process data, density, viscosity, temperature and pressure with the values on the scale. If they deviate, convert the scale values using the VDE/VDI 3513 standard. Pointer does not react in spite of varying flow: The pointer may have gotten stuck; remove the cover and move the pointer;... -
Page 30: Decontamination Certificate For Device Cleaning
Heinrichs Messtechnik GmbH 22 Decontamination certificate for device cleaning Company name: ................Address: ..................Department: ................Contact person: ............... Phone: ................... The enclosed variable-area flowmeter, Model ..........................was operated using the following fluid: ............................................In as much as this fluid is water-hazardous / toxic / corrosive / combustible / a health hazard / environmentally hazardous we have performed the following steps: ... -
Page 31: Declaration Of Conformity
Heinrichs Messtechnik GmbH 23 Declaration of conformity Operating Manual KDS/BGK Page 31... - Page 32 Heinrichs Messtechnik GmbH Page 32 Betriebsanleitung KDS/BGK...
- Page 33 Heinrichs Messtechnik GmbH Operating Manual KDS/BGK Page 33...
