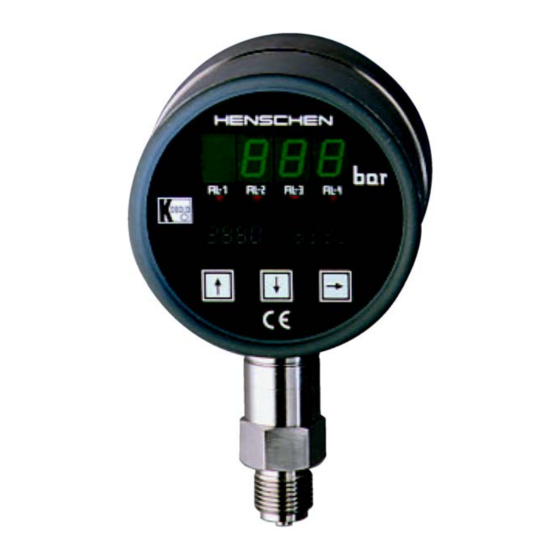

Digital pressure gauge
Hide thumbs
Table of Contents

Advertisement

Quick Links

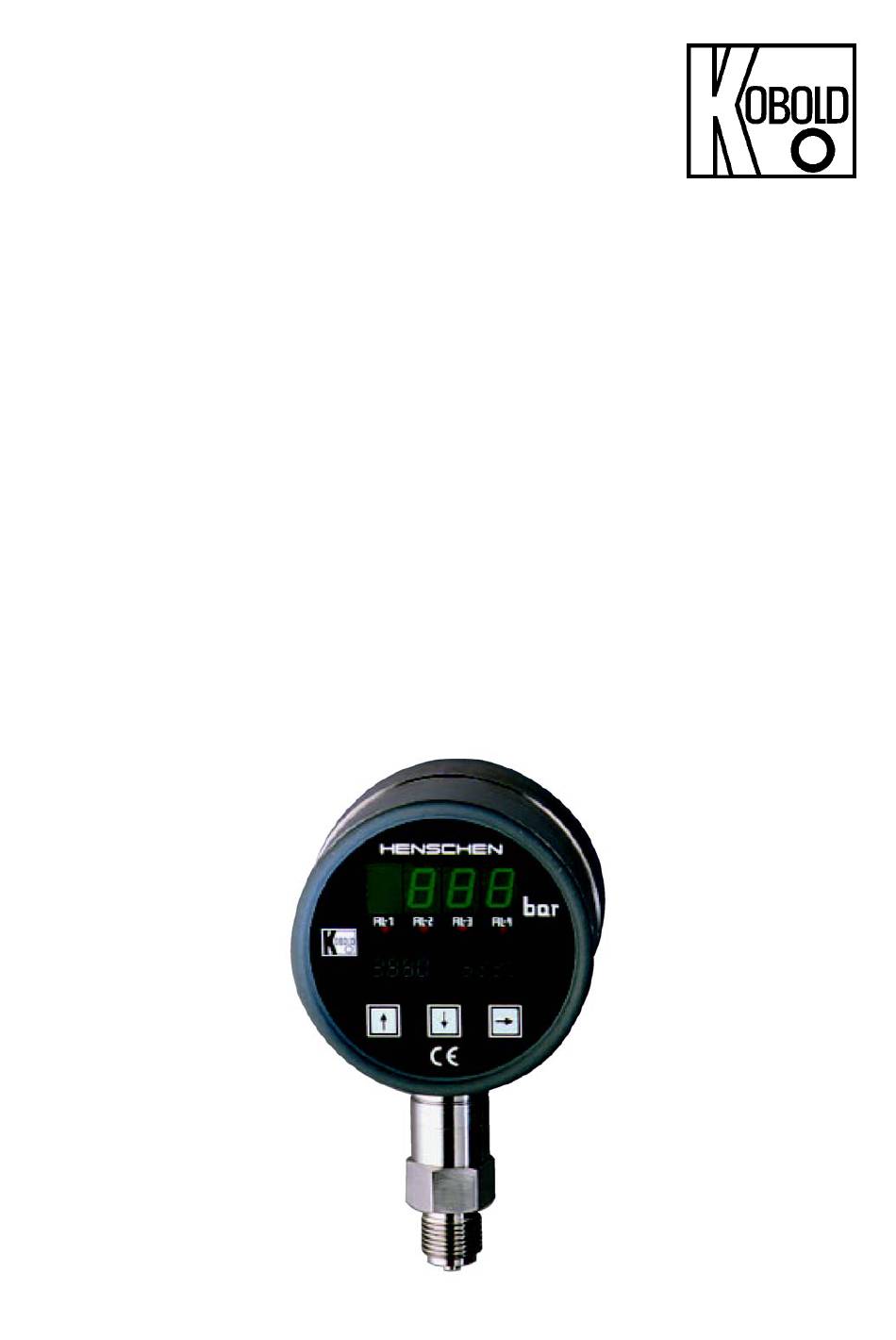

Operating Instructions
for
Digital Pressure Gauge
Model: MAN-SF...
MAN-BF..

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Henschen MAN-SF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold Henschen MAN-SF Series

Summary of Contents for Kobold Henschen MAN-SF Series

  • Page 1 Operating Instructions Digital Pressure Gauge Model: MAN-SF... MAN-BF..

  • Page 2: Table Of Contents

    14. Maintenance ....................28 15. Communication with RS 232 Interface ............29 16. Technical Information .................. 31 17. Declaration of Conformance ............... 32 Manufactured and sold by: KOBOLD Instruments Inc. 1801 Parkway View Drive Pittsburgh PA, 15205-1422 Tel.: 412-788-2830 Fax: 412-788-4890 E-Mail: info@koboldusa.com...

  • Page 3: Note

    MAN-SF (-BF) 2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &...

  • Page 4: Regulation Use

    MAN-SF (-BF) 3. Regulation Use The model MAN-SF devices are used to display, monitor and transmit pressure- dependent production processes in machines and plants. MAN-SF relative pressure measurement (option: absolute) MAN-BF differential pressure measurement The devices comprise the following components: 4-digit display The devices are fitted with a 4-digit, 14 mm high LED to display the measured pressure.

  • Page 5: Instrument Inspection

    MAN-SF (-BF) 5. Instrument Inspection Instruments are inspected before shipping and sent out in perfect condition. Should damage to a device be visible, we recommend a thorough inspection of the delivery packaging. In case of damage, please inform your parcel service / forwarding agent immediately, since they are responsible for damages during transit.
  • Page 6 MAN-SF (-BF) Installation • Ensure that the line is de-pressurised. • The Digital Pressure Gauge is mounted like a mechanical pressure gauge. • For standard threaded connection: sealing is with a suitable gasket (22.5 x 25.7 x 1.3 flat gasket, or sealing washer according to DIN 16258). •...

  • Page 7: Electrical Connection

    MAN-SF (-BF) 7. Electrical Connection Attention! Make sure that the voltage values of your system correspond with the voltage values of the Digital Pressure Gauge. Make sure that the supply wires are powerless during installation. • Remove the plastic cap at the rear of the device.

  • Page 8: Operation

    MAN-SF (-BF) 8. Operation Functions and parameters are divided into three levels. LEVEL 0 User Level This level may be accessed by any user (a password is not required). The following functions are available. • Zero-point adjustment of the display (inPUt ↓ S-ZEro) •...

  • Page 9: Function Of Key Button

    MAN-SF (-BF) 9. Function of Key Button In measuring mode • Access to user levels In the levels • Access to menu items • Access to functions in menu items • Escape from the level and return to the operating mode In the functions •...

  • Page 10: Functions Settings

    MAN-SF (-BF) 10. Functions Settings Note! Each digit is individually set in the setting mode. Each digit has a particular significance: the first digit from the right has a significance of 1; the second digit 10; the third 100; and the leftmost digit 1000.

  • Page 11: Serial Number Indications

    MAN-SF (-BF) 10.2. Serial Number Indications The device serial number may be read here for service purposes; it may be read but not altered. 10.3. Setting the Limit Contacts (optional) (May not be visible, if disabled in Level 1) As an option, the devices may be fitted with up to four independently adjustable limit contacts.
  • Page 12 MAN-SF (-BF) Switching value 2...4 for relay 2...4 Note: When adjusting the set-points, remember that the hysteresis may be above the new set-point, and may be enabled until the relay set-point is accepted. The hysteresis is only loaded when accepted. MAN-SF(-BF) 01/1006 page 12...
  • Page 13 MAN-SF (-BF) Limit-contact hysteresis Delay time for limit contacts Adjustable between 0.03 and 99.99 seconds. 2...4 for relay 2...4 MAN-SF(-BF) 01/1006 page 13...

  • Page 14: Access To Level 1 (Master Level)

    MAN-SF (-BF) 10.4. Access to Level 1 (Master Level) All above menu items may be set in Level 0 and Level 1, as well. This is necessary if the menu item in Level 0 has been disabled. Access to Level 1 is with password entry via Level 0.

  • Page 15: Enabling / Disabling The Menu Items In Level 0

    MAN-SF (-BF) 11. Enabling / Disabling the Menu Items in Level 0 11.1. Enabling/Disabling the Zero-Point Adjustment Enter the password and go to Level 1 (see section 10.4) 11.2. Setting the user display Enter the password and go to Level 1 (see section 10.4) The set-points and hysteresis display in the operating mode may be set in Level 1.

  • Page 16: Changing The Password For Level 1

    MAN-SF (-BF) 11.3. Changing the password for Level 1 Enter the password and go to Level 1 (see section 10.4) Password factory setting is "0001" 11.4. Disabling the optional limit contacts Enter the password and go to Level 1 (see section 10.4) 2...4 for relay 2...4 MAN-SF(-BF) 01/1006 page 16...

  • Page 17: Adjustment Of The Additional Option

    MAN-SF (-BF) 12. Adjustment of the Additional Option All following menu items may be set in Level 2. In addition, some of the menu points respective functions can be enabled for Level 0. Access to Level 2 is via Level 0 and Level 1 with password entry. The unit automatically returns to the operating mode after three incorrect entries.

  • Page 18: Adjustment Of The Maximum Peak Memory (Optional)

    MAN-SF (-BF) 12.2. Adjustment of the Maximum Peak Memory (optional) 12.2.1. Reset Time of the Maximum Peak Memory (Pdut) (Adjustable in LEVEL 2 or if enabled in LEVEL 0) The reset time of the maximum peak memory can be adjusted with an internal timer.
  • Page 19 MAN-SF (-BF) 12.2.3. Initial Value for Minimum or Maximum Peak Memory (Adjustable in LEVEL 2 or if enabled in LEVEL 0) 12.2.4. Enabling/Disable of the Menu Item in LEVEL 0 (PdurEL) (Adjustable only in LEVEL 2) The functions 12.1.1 to 12.1.4 can be enabled or disabled for LEVEL 0. PdurEL on = enabling in LEVEL 0 PdurEL off = disabling in LEVEL 0 MAN-SF(-BF) 01/1006...
  • Page 20 MAN-SF (-BF) 12.2.5. Direction of Action of the Maximum Peak Memory (PduSEL) (Adjustable only in LEVEL 2) 000 = Maximum peak memory non-active 001 = affects on display 010 = affects on the output signal 100 = affects on the relay multiple selection is possible e.g.: 011 = affects on display and output signal press several times –...
  • Page 21 MAN-SF (-BF) 12.2.6. Reset of the Maximum Peak Memory (PdurES) (Adjustable only in LEVEL 2) 000 = Maximum peak memory will not be reset 001 = Reset internal via Pdut adjusted timer 010 = Reset with button "↑" of the foil console 100 = Reset external via RS 232 interface (if installed) multiple selection is possible e.g.: 101 = Reset via timer and RS 232 interface...

  • Page 22: Rs 232 Interface (Optional)

    MAN-SF (-BF) 12.3. RS 232 Interface (optional) 12.3.1. Baud Rate of the RS 232 Interface (bAud) (Adjustable only in LEVEL 2) The following Baud rates 1200, 2400, 4800, 9600, 19200 or 38400 can be adjusted. Standard setting is 9600. 12.3.2. Parity of the RS 232 Interface (PAr) (Adjustable only in LEVEL 2) The following parities can be adjusted none, even or odd.

  • Page 23: Scaling Of The Analogue Signal (Optional)

    MAN-SF (-BF) 12.3.3. Enabling / Disabling of the RS 232 Interface for Level 0 (Adjustable only in LEVEL 2) 12.4. Scaling of the Analogue Signal (optional) 12.4.1. Zero-Point Adjustment of the Analogue Output (outZP) (Adjustable only in LEVEL 2) MAN-SF(-BF) 01/1006 page 23...
  • Page 24 MAN-SF (-BF) 12.4.2. End Point Adjustment of the Analogue Output (outEP) (Adjustable only in LEVEL 2) 12.4.3. Delay Time Adjustment of the Analogue Output (outdEL) (Adjustable only in LEVEL 2) MAN-SF(-BF) 01/1006 page 24...

  • Page 25: Scaling Of The Display (Optional)

    MAN-SF (-BF) 12.4.4. Enabling / Disabling of the Menu Points in LEVEL 0 (outrEL) (Adjustable only in LEVEL 2) 12.5. Scaling of the Display (optional) 12.5.1. Zero-Point Adjustment of the Display (dPLZP) (Adjustable only in LEVEL 2) MAN-SF(-BF) 01/1006 page 25...
  • Page 26 MAN-SF (-BF) 12.5.2. End Point Adjustment of the Display (dPLEP) (Adjustable only in LEVEL 2) 12.5.3. Delay Time Adjustment of the Display (dPLdEL) (Adjustable only in LEVEL 2) MAN-SF(-BF) 01/1006 page 26...
  • Page 27 MAN-SF (-BF) 12.5.4. Decimal Point Adjustment (dPLdP) (Adjustment only in LEVEL 2) dPLdP dP0 = Indication without decimal point dPLdP dP1 = Decimal point between the first and second digit (000.0) dPLdP dP2 = Decimal point between the second and third digit (00.00) dPLdP dP3 = Decimal point between the third and fourth digit (0.000) 12.5.5.

  • Page 28: Dimensions

    MAN-SF (-BF) 13. Dimensions 14. Maintenance The device requires no maintenance if the measured medium is not contaminated. MAN-SF(-BF) 01/1006 page 28...

  • Page 29: Communication With Rs 232 Interface

    MAN-SF (-BF) 15. Communication with RS 232 Interface COMMUNICATION OPERATION SEQUENCE TYPE "A" communication definition 1. protocol definition followed by ANSI X3.28-1976 used subcategory 2.3 two-way alternate, non-switched point-to-point with message transfer subcategory A3 message-oriented, with replies and without longitudinal checking (BCC) upper and lower case allowed limitations reply request is not implemented in the system 900 communication system...
  • Page 30 MAN-SF (-BF) 5. error messages ## error no. description expression E_001 communication already open wait for command E_002 communication not open wait for "ENQ" ("$"=open com´s) E_003 frame error wrong frame at this time E_004 command error command not available E_005 time out error time out (slave exit from com´s)

  • Page 31: Technical Information

    MAN-SF (-BF) 16. Technical Information Accuracy class 0.50 Overrange 0-60 bar – x3; 60-250 bar – x2, above 250 bar – x1,5 Stainless Steel 1.4571, ceramic Wetted parts Stainless Steel 1.4301 (case, adapter) Material in contact with environment Polycarbonate (cap) Polyester film, polyamide Output signal 4–20 mA, 0–20 mA, or 0–10 V...

  • Page 32: Declaration Of Conformance

    MAN-SF (-BF) 17. Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Digital Pressure Gauge Model: MAN-SF... to which this declaration relates is in conformity with the standards noted below: EN 50081-1...
