INSTALLATION INSTRUCTIONS for
RDL Lever Lock with Simplí
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 / www.sargentlock.com

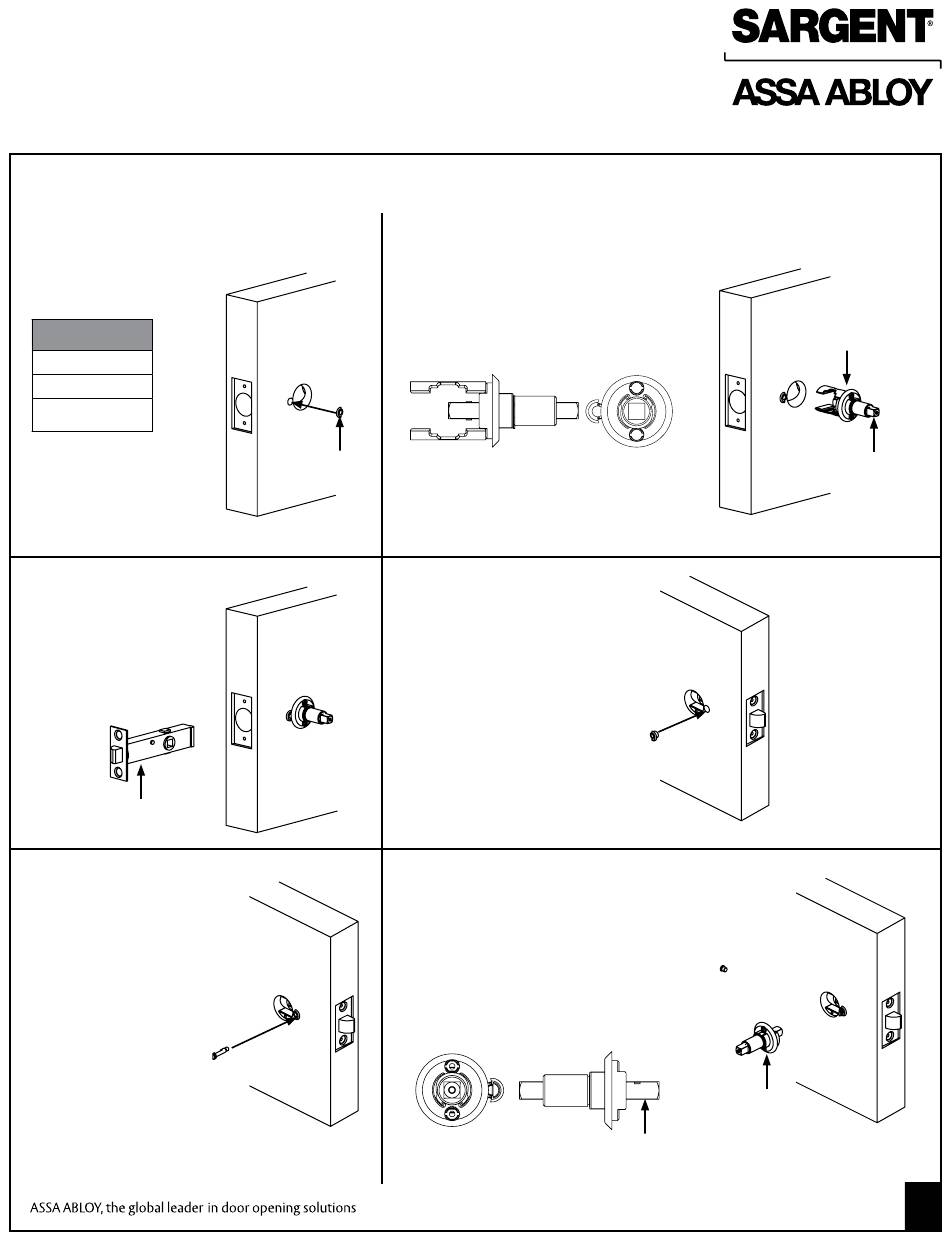

Installing an RDL Lock

STEP 1

Insert outside bushing as shown
(65 function only)

Tools Required:

Phillips Screwdriver
T20 Torx Wrench
Lever Base Tool
(Provided)

STEP 3

Insert latch assembly
• Position the threaded
hole on the latch
assembly towards the
inside of the door
(65 function only)
Latch
Assembly

STEP 5

Assemble privacy button
to latch assembly
(65 function only)
• Thread the privacy
button into the threaded
hole of the latch assembly
through the inside bushing
Note: Loosening the pre assembled #6-32 screws on
the outside mounting plate may improve alignment for
thicker doors.
Roseless Trim
™

STEP 2

Insert outside mounting plate assembly
• Ensure that the spindle is pre-assembled
to the mounting plate assembly
• Orient the bushing to avoid interference
Outside
as shown (65 function only)
of Door
Outside
Bushing

STEP 4

Insert inside bushing as shown
(65 function only)

STEP 6

• Verify the spindle is assembled to the
mounting plate assembly
• Position and secure inside mounting
plate assembly with two #6-32 screws
provided (not shown)
• Orient the bushing and privacy pin
as shown to avoid interference
(65 function only)
(Patents Pending)
Spindle
Copyright © 2010, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission
of Sargent Manufacturing Company is prohibited.
Outside Mounting
Plate Assembly
Spindle of
Outside
Mounting
Plate
Assembly
Mounting
Plate
Assembly
1
A8046:B 9-01-10
