Sargent EK Exit Device Retrofit Kit Installation Instructions Manual

Series p1/p2
Hide thumbs

Advertisement

Quick Links

Download this manual

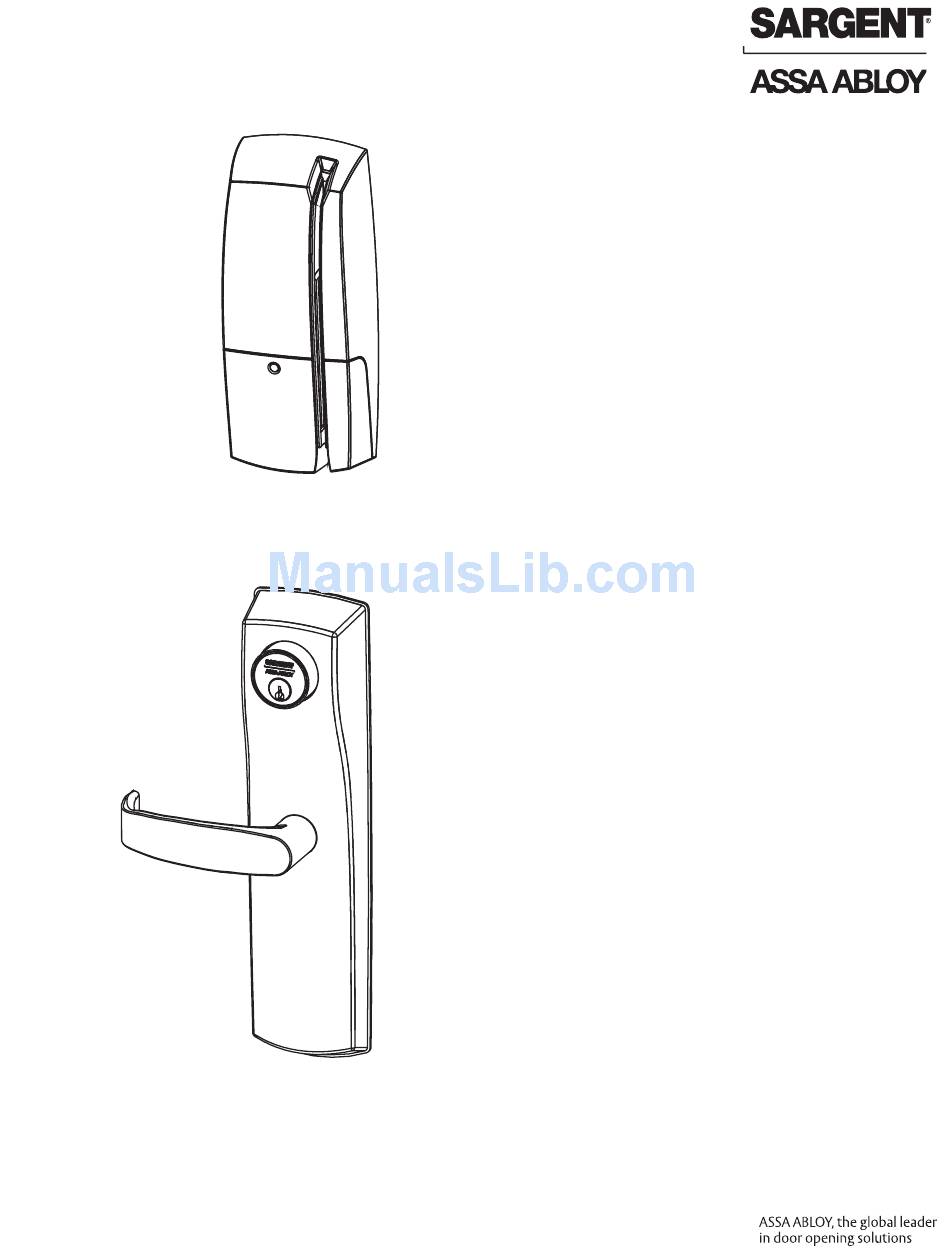

A8112C
04/16
Copyright © 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission
of Sargent Manufacturing Company is prohibited.
EK Exit Device
Retrofit Kit
Passport 1000
for
Installation Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the EK Exit Device Retrofit Kit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sargent EK Exit Device Retrofit Kit

Summary of Contents for Sargent EK Exit Device Retrofit Kit

  • Page 1 EK Exit Device Retrofit Kit Passport 1000 Installation Instructions A8112C 04/16 Copyright © 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

  • Page 3: Table Of Contents

    To comply with “Fire Listed” doors, the batteries must be replaced with alkaline batteries only. Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and SARGENT makes no representations or warranties concerning what such impact may be in any specific ®...

  • Page 4: General Description

    EK Exit Device Retrofit Kit for Passport 1000 General Description The EK Exit Device Retrofit Kit is designed to link the SARGENT Passport 1000 Series P1/P2 product line with non-SARGENT rim exit devices. The EK Retrofit Kit is designed specifically to link to the Von Duprin ®...

  • Page 5: Installation Instructions

    EK Exit Device Retrofit Kit for Passport 1000 Installation Instructions *For mechanical (dummy) trim installation, refer to Steps 4, 5, and 7 only. Major Component Assembly Breakdown Item Description EK Kit Existing Hardware Outside Escutcheon Assembly Outside Trim Assembly Replacement EK Retrofit...
  • Page 6 EK Exit Device Retrofit Kit for Passport 1000 1 Remove All Von Duprin 98/99 Exit Hardware from Door ® See diagram and part description on page 4 showing existing assemblies to be removed. 2 Door Preparation Inside A. Verify Hand and Bevel of Door •...
  • Page 7 EK Exit Device Retrofit Kit for Passport 1000 C. Install Door Position Switch (DPS) 1. Insert connector end of DPS through the raceway on the latch edge of the door (Fig. 2C). Note: For metal doors, use DPS Collar. 2. Push DPS firmly into place by hand.
  • Page 8 EK Exit Device Retrofit Kit for Passport 1000 3 Von Duprin 98/99 Series Rim Exit Hardware Preparation ® A. Installing and Wiring the Request to Exit - RX Switch (not included) The RX kit must be installed in order for the product to operate as intended. The RX kit can be ordered from an authorized distributor.
  • Page 9 EK Exit Device Retrofit Kit for Passport 1000 4 Installing the Cylinder 1. Remove existing rim cylinder from trim previously removed from door. 2. Measure the cylinder length (see Fig. 4B). 3. There are three (3) collars (see Table 4C below) provided to accommodate the various cylinder lengths.
  • Page 10 Attach gasket to the outside escutcheon (Fig. 5A). Fig. 5A 6 Installing the EK • The SARGENT EK Exit Device Retrofit Kit requires installation of the NL (Night Latch) Drive Screw (Fig. 6A) and is included with the EK Exit Device Retrofit Kit. •...
  • Page 11 EK Exit Device Retrofit Kit for Passport 1000 7 Mounting the EK Route wires and cables as shown in Fig. 7A. Grounding Exit Trim Cable Cable Door Position Switch (DPS) Orange Fig. 7A Wire Nut Blue 1. Connect Exit Device Retrofit Kit (EK) Orange wire to NC (normally closed) wire of RX chassis wire.
  • Page 12 EK Exit Device Retrofit Kit for Passport 1000 P1 (PoE) Installation and Wiring Instructions PoE frame harness assembly (From McKinney) PoE door harness* (From McKinney) PoE data hinge (Patent Pending) (From McKinney) Passport 1000 P1 PoE Lock * Order of installation may vary.
  • Page 13 EK Exit Device Retrofit Kit for Passport 1000 Installation Wiring (Continued) Frame Harness Installation Components and wire harness supplied by McKinney, Suggested installation: Supplied by CI Cut end / ceiling-side PoE harness: TIA/EIA 568-B Standard Wiring B-Splice Wire Pair Crimp Connector...
  • Page 14 EK Exit Device Retrofit Kit for Passport 1000 Installation Wiring (Continued) PoE Door Harness Order of installation may vary. Refer to appropriate sections for instructions. Hinge-side harness connectors: • 4-pin male Molex connector • 6-pin male Molex connector with ground wire Lock-side harness connectors: •...
  • Page 15 EK Exit Device Retrofit Kit for Passport 1000 9 Install Outside Escutcheon and (Optional) Gasket For exterior non-fire rated door applications, a gasket must be installed as a weatherseal between the escutcheon and the outside door surface. Attach gasket to the outside escutcheon (Fig. 9).
  • Page 16 EK Exit Device Retrofit Kit for Passport 1000 If you are installing P2 (Wireless) continue here 11 Install Outside Escutcheon and Mounting Plate Assembly 1. On the inside of the door, position the mounting plate over the indicated holes (Fig. 10A).
  • Page 17 EK Exit Device Retrofit Kit for Passport 1000 12 Installation of Connectors CAUTION - Do not touch or allow debris to enter connector contacts. Secure the following connectors to their respective terminals (Fig. 11A ): A. Secure the 10-pin exit trim body assembly connector.
  • Page 18 EK Exit Device Retrofit Kit for Passport 1000 13 Install Inside Module Component Assembly 1. Insert top tabs of controller into slots on mounting plate (Fig. 12). 2. Ensure proper alignment of board-to-board connectors while pivoting bottom of controller toward door until tab on bottom snaps securely into place on mounting plate.
  • Page 19 EK Exit Device Retrofit Kit for Passport 1000 14 Install Battery Pack Before installing batteries for the first time: Remove pull tab from its position beneath the coin cell by pulling Inside of Door on tab in direction of arrows printed on tab (Fig. 13).
  • Page 20 EK Exit Device Retrofit Kit for Passport 1000 16 Installation of Connectors (PoE) DPS (4-pin) CAUTION - Do not touch or allow debris to enter connector contacts. Secure the following connectors to their respective terminals (Fig. 15A, B): A. Secure the 4-pin DPS connector.
  • Page 21 EK Exit Device Retrofit Kit for Passport 1000 17 Installation of Inside Module Component Assembly (PoE) 1. Insert top tabs of controller into slots on mounting plate (Fig. 11A, B). 2. Ensure proper alignment of board-to-board connectors while pivoting bottom of controller toward door until tab on bottom snaps securely into place on mounting plate.
  • Page 22 EK Exit Device Retrofit Kit for Passport 1000 18 Install Inside Escutcheon 1. Position inside escutcheon as shown (Fig. 12). Verify that all wires are positioned within the escutcheon to avoid pinching. 2. Attach escutcheon with (2) #8-32 x 1/2” T-20 Torx pan head screws.

  • Page 23: Operational Check

    EK Exit Device Retrofit Kit for Passport 1000 Operational Check IMPORTANT : Be sure to test functions prior to closing door. In all cases, perform the following checks: 1. Ensure that inside exit bar retracts latch. • To test cylinder, the following checks apply: Insert key into cylinder and rotate: a.
  • Page 24 Copyright © 2016, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited. HID and iCLASS are registered trademarks of HID Global Corporation. Von Duprin is a registered trademark of Von Duprin LLC.
