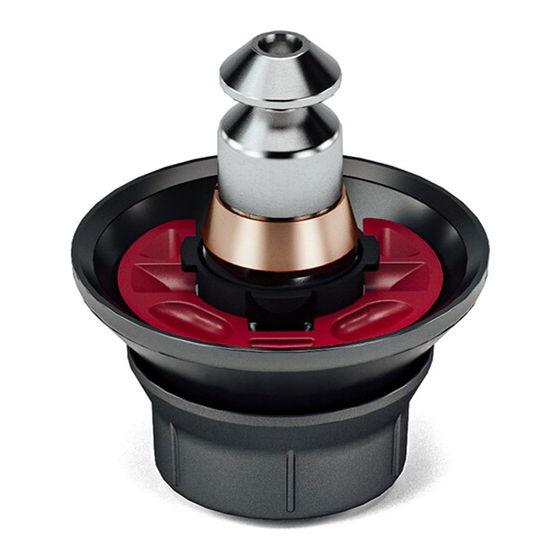

aktiv bowl connector 75 mm / 100 mm
Part No.S2080-0001 (75 mm) / S2080-0002 (100 mm)
Please refer to the aktiv fluid head user guide S2068-4980 for safety instructions.

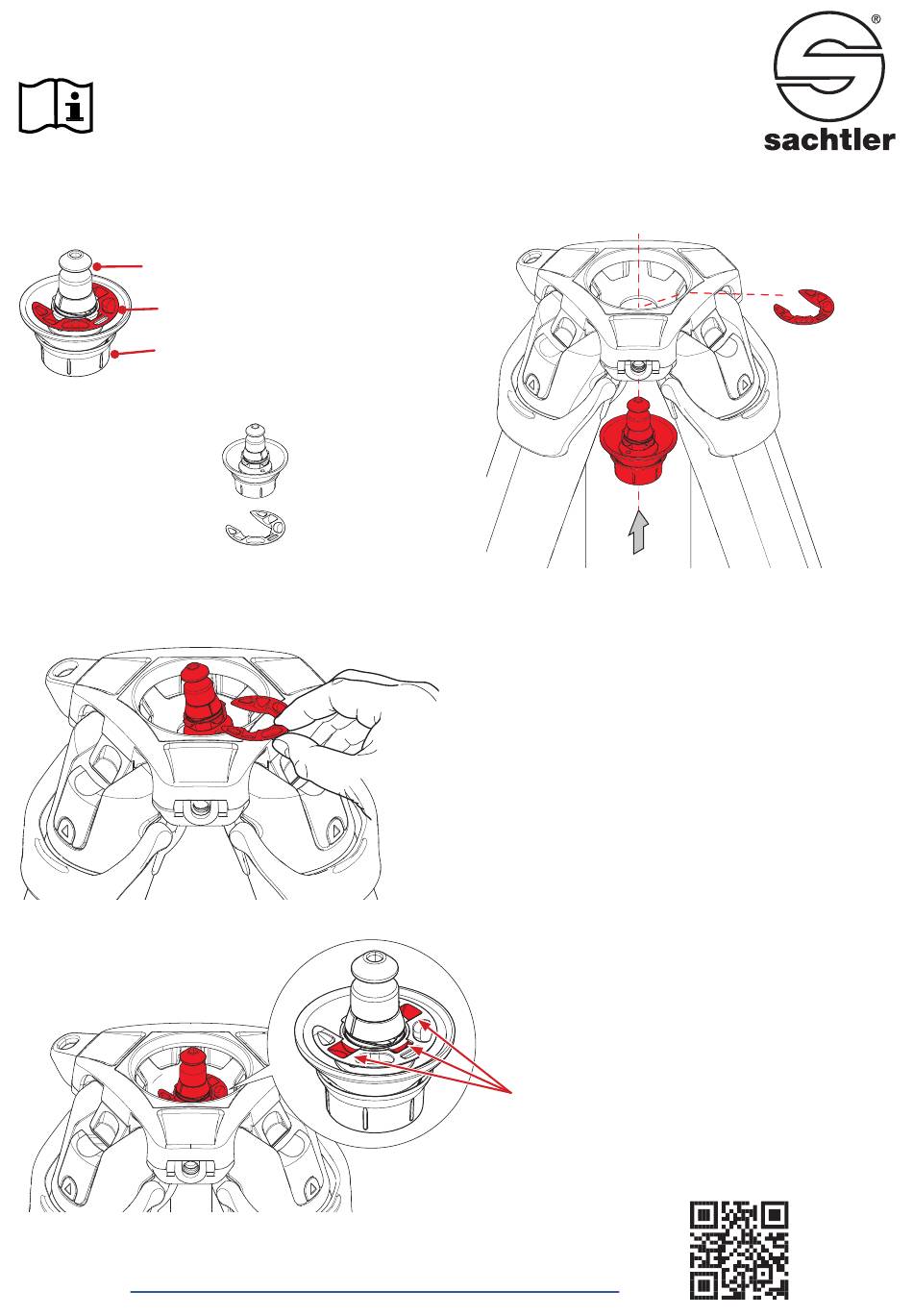

Fitting Bowl Connector For The 1st Time
Note! Fitting and adjusting the Bowl Connector to the tripod is a one time effort, once set, it is left on the tripod and
remains ready without further adjustment required.
Connector Stud
Retaining Clip
Connector Adjustment Knob
The Bowl Connector comes in 2 parts:
•
Bowl Connector Body
•
Retaining Clip
Scan the QR Code to see installation video or type into browser:
https://www.sachtler.com/en/product-support/aktiv-installation/
TM
1. Insert the Bowl Connector through the underside of the
tripod bowl.
2. Holding the Bowl Connector in place with one hand,
slide the Retaining Clip under 3 of the 4 positioning lugs
on the Bowl Connector and snap into place.
3. Check that 3 lugs are correctly located in the
Retaining Clip indents.
Advertisement
Related Manuals for Sachtler S2080-0001
Summary of Contents for Sachtler S2080-0001
- Page 1 75 mm / 100 mm Part No.S2080-0001 (75 mm) / S2080-0002 (100 mm) Please refer to the aktiv fluid head user guide S2068-4980 for safety instructions. Fitting Bowl Connector For The 1st Time Note! Fitting and adjusting the Bowl Connector to the tripod is a one time effort, once set, it is left on the tripod and remains ready without further adjustment required.
- Page 2 60° Approximately 45° to 60° from the body (30 mm to 50 mm 45° (1 in to 2 in)) from the body. CAUTION! Push the SpeedLevel Lever fully closed against the head before use. www.sachtler.com Publication Part No. S2080-4980/0...
