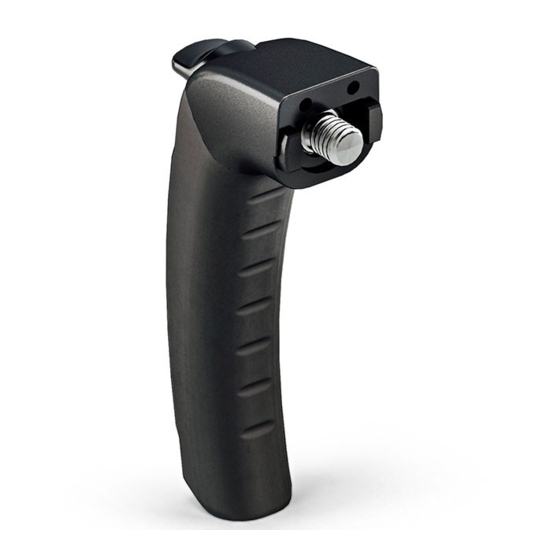

flowtech Rotating Carry Handle 75 mm / 100 mm
Part No. S2051-1062

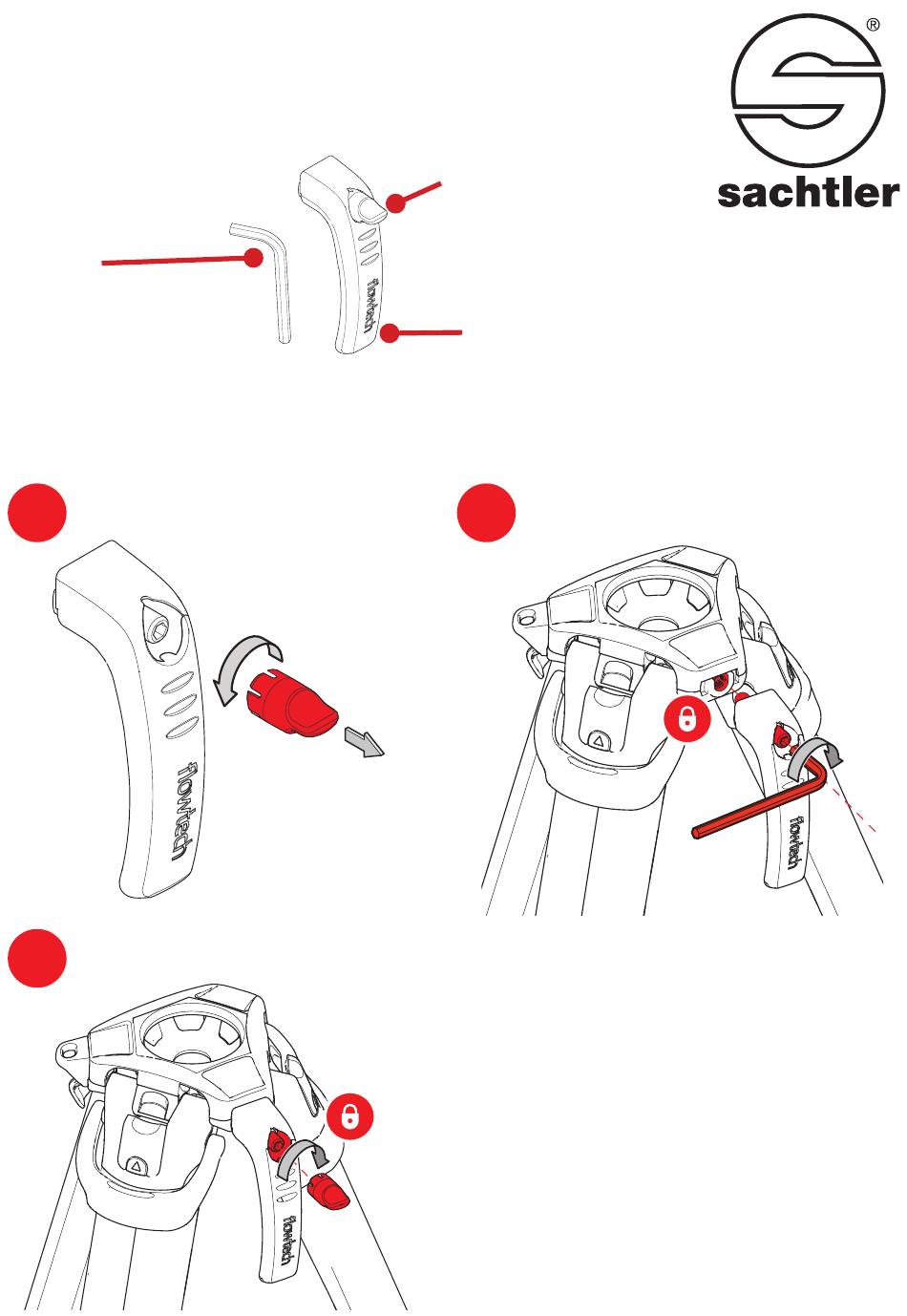

Supplied Parts
Hex Key
7/32" (5.5mm)
Fitting Handle
Note! Take care to align threads properly whilst fitting to avoid causing damage to parts.
1
Unscrew the Lock Knob and remove from
the handle.
3
Screw the Lock Knob back onto the handle turning clockwise.
Lock Knob
New: Carry Handle
2
Use the supplied Hex key to screw the handle to
the tripod mount. Firmly tighten.
Advertisement
Related Manuals for Sachtler S2051-1062
Summary of Contents for Sachtler S2051-1062
- Page 1 Rotating Carry Handle 75 mm / 100 mm Part No. S2051-1062 Supplied Parts Lock Knob Hex Key 7/32” (5.5mm) New: Carry Handle Fitting Handle Note! Take care to align threads properly whilst fitting to avoid causing damage to parts.
- Page 2 The handle will remain in place under spring pressure. The tripod may now be used in the lowest position. To place the handle back into the carry position: Rotate the handle back into the lock position and tighten the Lock Knob. www.sachtler.com Publication Part No. S2051-4985/0...
