Sachtler Adaptor Aktiv Slider S2080-0005 Quick Start Manual

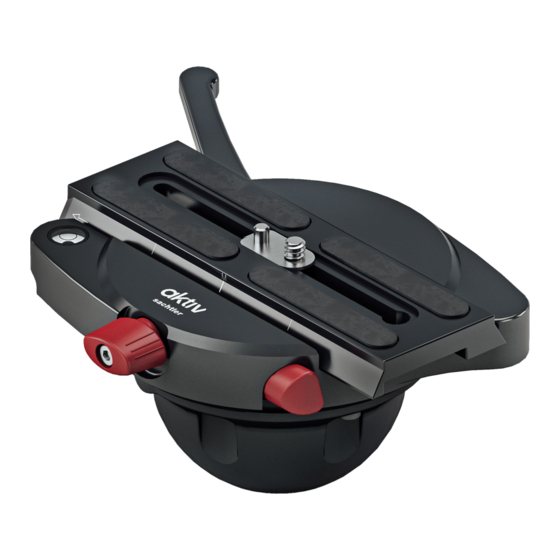

Adaptor aktiv slider / tripod 75 mm - 100 mm

Part No.S2080-0005 (75 mm) S2080-0006 (100 mm)

Refer to aktiv system manual S2068-4980 for safety

instructions, and information regarding adjusting the aktiv bowl

connector

Max. payload: 10 kg (22 lb) for slider with 60 cm (23.6 in) length.

Please check the maximum payload specified by the slider manufacturer.

Attach the sideload plate to the underside of the slider using the screws provided and

tighten the screws firmly.

Hold the adaptor firmly with both hands. Pull the lever all the way back

towards the level bubble.

Lower the Adaptor onto the aktiv bowl stud and release the lever, the lever

should return to the locked position as shown below.

Locked Position

a. Loosen the red clamp knob

b. Press the red release button

c. Lift out the sideload plate

Table of Contents

Need help?

Do you have a question about the Adaptor Aktiv Slider S2080-0005 and is the answer not in the manual?

Page 1 Adaptor aktiv slider / tripod 75 mm - 100 mm Part No.S2080-0005 (75 mm) S2080-0006 (100 mm) Refer to aktiv system manual S2068-4980 for safety instructions, and information regarding adjusting the aktiv bowl connector Max. payload: 10 kg (22 lb) for slider with 60 cm (23.6 in) length. Please check the maximum payload specified by the slider manufacturer.
Page 2 When head is fitted to the slider you may use the same procedure to fine adjust and check the level. When fitting an aktiv head onto the the slider, adaptor S2080-0003 (75mm head) or S2080-0004 (100 mm head) will be required. www.sachtler.com Publication Part No. S2080-4982/0...
