NETWORK ANALYZER
MPR-53CS
Technical Data
Operating Voltage (Un)
Operating Frequency (f)
Auxiliary supply Power Consumption
Measuring Input Power Consumption
VIn
I
In
Measuring Range
Class
Voltage Transformer ratio (Vtr)
Current Transformer Ratio (Ctr)
Max. Ctr x Vtr
Hour SP
Demand Time
Serial Interface
Baud Rate
Address
Parity
Relay Output
Pulse Output
Switch Period
Operatimg Current
Operating Voltage
Input
Ambient Temperature
Display

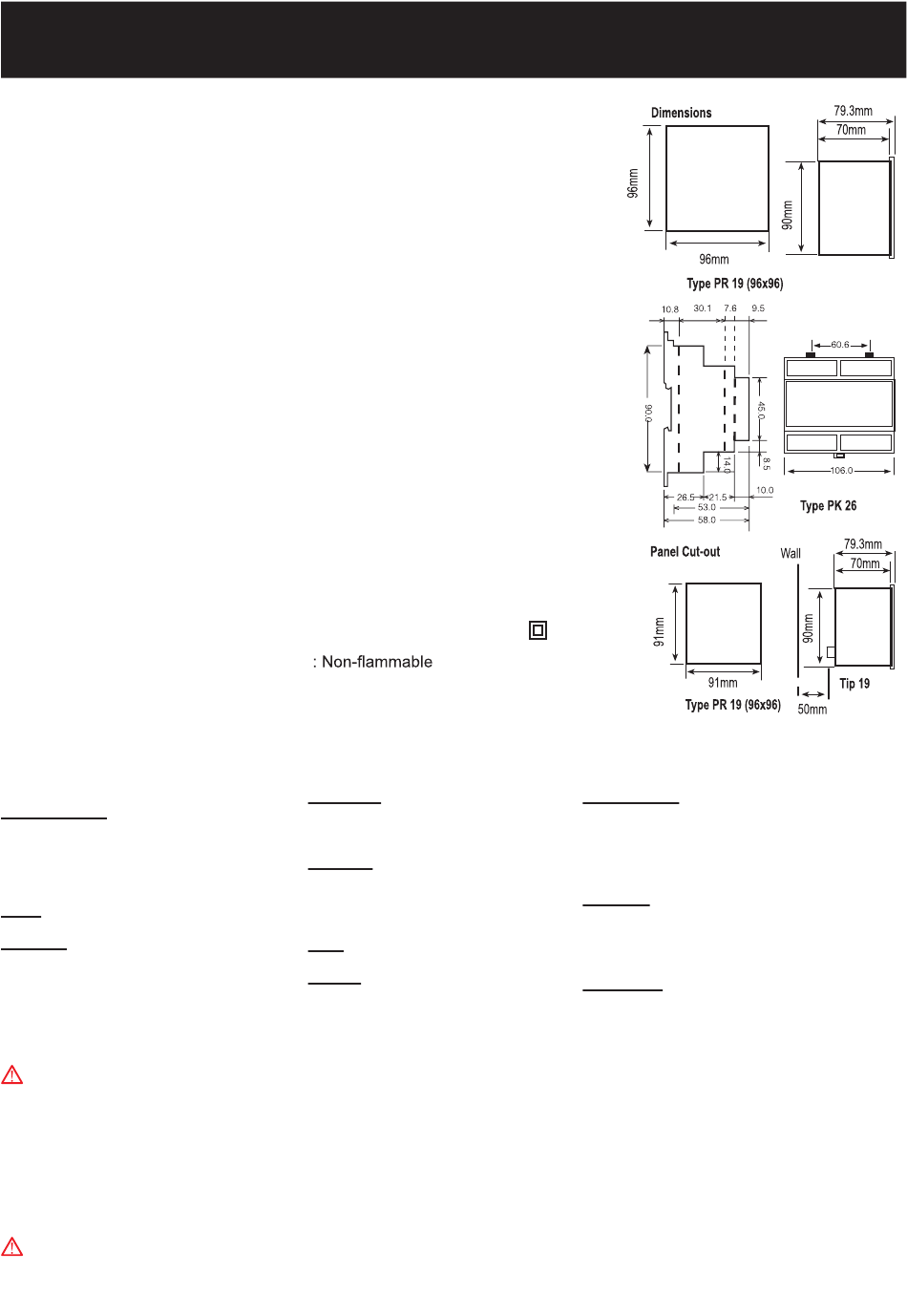

Dimensions
Equipment Protection Class
Box Protection Class
Box Material
Installation
Wire Crossection For Terminal Block
Weight
Installation Class
Panel Size
Factory Settings
Transformer :
Ctr (Current Transformer Ratio) : 0001
trn (Turn number for CT-25): 01
Utr (Voltage Transformer Ratio) : 0001.0
CAL (Calculation Method) : 1
Pin : 0000 (Not Activated)
RS-485 :
Adr (Address) : 1
Bau (Baud Rate) : 9600
PAr (Parity) : no
PRECAUTIONS FOR INSTALLATION AND SAFE USE
In CT-25 (120A) compliant models, only CT-25 current transformer must be used.
Other type of CT's have a high risk to damage to device.
Failure to follow those instructions will result in death or serious injury.
- Disconnect all power before working on equipment.
- When the device is connected to the network, do not remove the front panel.
- Do not try to clean the device with solvent or the like.Only clean with dry cloth.
- Verify correct terminal connections when wiring.
- Electrical equipment should be serviced only by your component seller.
- Only for rack panel mounting.
- The type of cı̇ rcuı̇ t breaker must be F and current lı̇ mı̇ t value must be 1A
- No responsı̇ bı̇ lı̇ ty ı̇ s taken on by manufacturer or any its subsidiories for any conditions about the wrong using of this device
No responsibility is assured by the manufacturer or any of its subsidiaries for any consequences
arising out of the use of this material.
: Please look behind the device.
: 45-65 Hz
: < 4 VA
: < 1 VA
: 10-300 V AC 45-65 Hz. (L-N)
: 10-500 V AC 45-65 Hz. (L-L)
: 0.05 - 5.5 A~
1-120 A~ (for CT-25)
: 10V...200 kV AC
: 0...215 M (W,VAr,VA)
: 99999999999.9 kWh, kVArh
: 1% ± 1 digit [(10%-110%) xFull Scale]
: 0,1 ... 4000,0
: 1 ... 2000
: 40.000
: 1-9999 hour (programmable)
: 1-60 min. (programmable)
: MODBUS RTU (RS 485)
Optically Isolated, programmable
: 2400-38400 bps
: 1-247
: No, Odd, Even, 8 Data Bits, 2 Stop Bits
: 2 NO, 5 A, 1250 VA
: NPN Transistör
: Min. 100 msec. pulse period
80 msec. pulse width
: Max. 50 mA
: 5.....24 V DC, max. 30 VDC
: 12...48 V AC / DC
: -5°C; +50°C
: Red LED Display
: PR-19, PK-26
: Double Installation-Class II (
: IP 40 (front panel)
: Panel Mounted (PR-19)
Rail Mounted (PK-26)
: 2.5 mm
2
: 0.45 kg (PR-19, PK-26)
: Class III
: 91x91 mm (PR-19)
46x107 mm (PK-26)
Eng Cnt :
E-1 (Energy Counter 1) : on
E-2 (Energy Counter 2) : on
PULSE :
rAt (Ratio) : 1k
o-1 (Output 1) : A-I
o-2 (Output 2) : r-L
dEtı (Delay Time) : 15
hoU r :
hoU r SP (Setpoint) : 0000
ACt : on
out : 1
8
)
PULSE Cnt :
C-1 ACt (Pals Counter 1) : on
C-2 ACt (Pals Counter 2) : on
C-1 rAt ıo (Ratio) : 0001
C-2 rAt ıo (Ratio) : 0001
LAT Ch :
bUt ton : on
ın PUT : oFF
AUT o : oFF
Set point :
SP -01....-16 ACt : oFF
