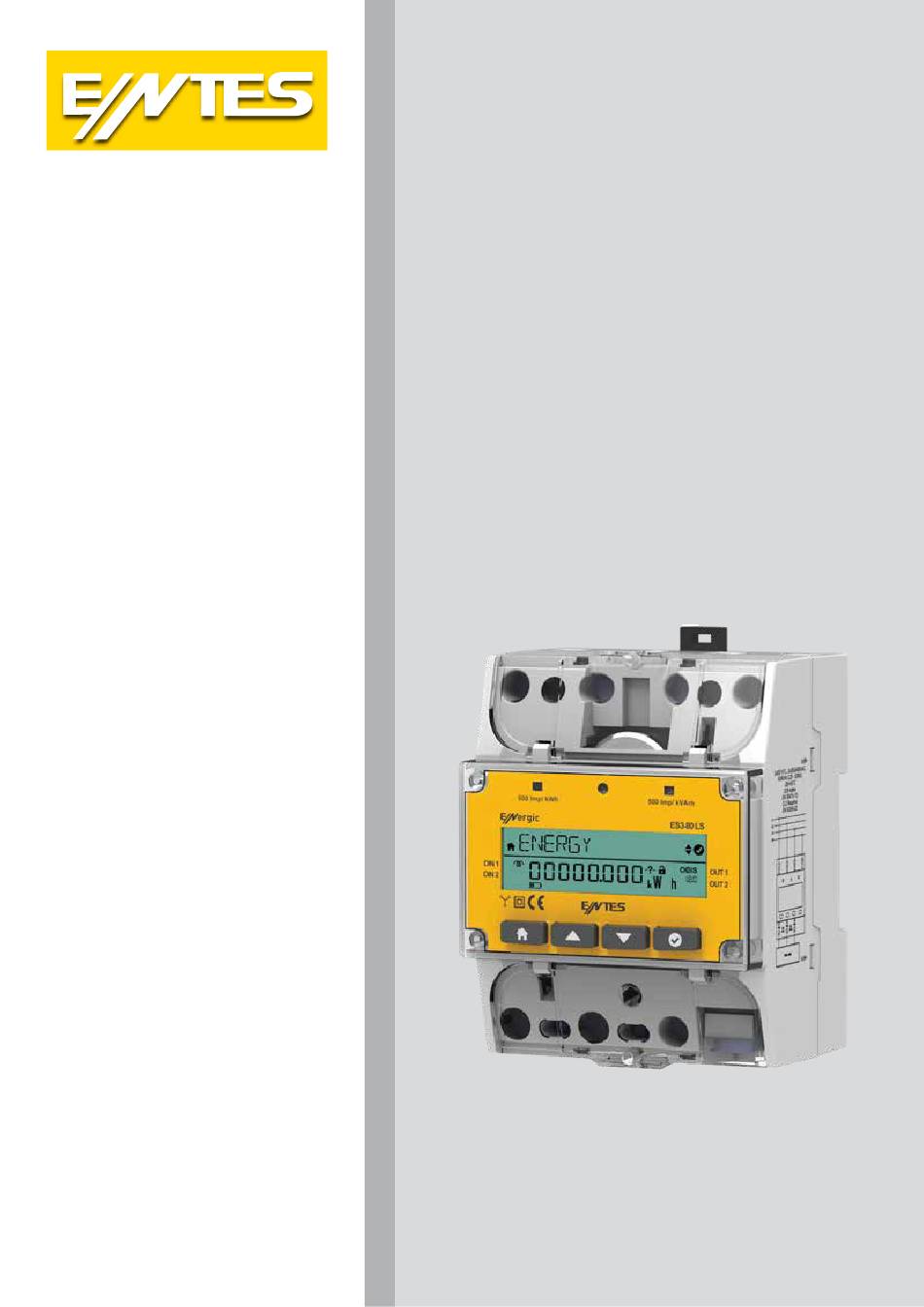

ES3 Series
3 Phase Energy Meter
User Manual
www.entes.eu
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Entes ES3 Series

Summary of Contents for Entes ES3 Series

  • Page 1 ES3 Series 3 Phase Energy Meter User Manual www.entes.eu...

  • Page 2: Table Of Contents

    Contents Safety Warnings ......................3 1.Introduction ........................4 1.1 General Specifications ..................4 1.2 Mechanical and Environmental Conditions ............5 1.3 Standards ......................5 1.4 Technical Specifications: ..................5 1.5 Technical Drawing ....................7 1.6 Connection Diagram ................... 7 1.7 Terminal Structure ....................7 1.8 Display and GUI design ..................

  • Page 3: Safety Warnings

    Safety Warnings Caution Failure to follow the instructions below may result in serious injuries or even death.. • Disconnect all power when installing the device. • Do not remove the front panel while the device is connected to the mains. •...

  • Page 4: Introduction

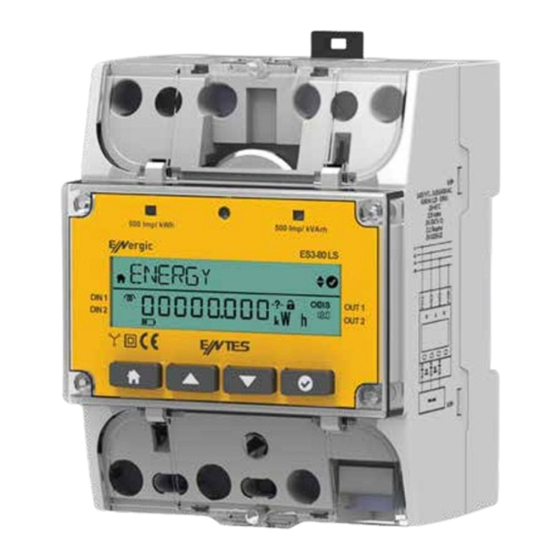

    • RS-485 / Ethernet / M BUS communication options ES Series ENTES is a new generation 3-phase electricity meter. It is designed to measure active, reactive and apparent energy in 3 phase and 1 neutral connected system. It also shows the ener- gy produced and supplied to the network together with the energy consumed in separate endexes.

  • Page 5: Mechanical And Environmental Conditions

    1.2 Mechanical and Environmental Conditions Operating Conditions Value Range Dimensions DIN4 Installation Rail IP protection IP51 Display Segment LCD Button 4 x Universal Interface Storage Temperature -25/+55 °C Operating Temperature -30/+80 °C Maximum Humidity 95% (noncondensing) 1.3 Standards EN 50470-1 EN 50470-3 EN 62053-23 EN 62053-61...
  • Page 6 Baud Rate Adjustable 2400/ 4800/ 9600/19200/38400/57600/115200 Adress Adjustable 1-247 Parity Adjustable Single / Double / None Internal Memory 16 MB Demand Time Adjustable 1-60 minute(s) Log Time Adjustable 1/2/5/10/15/20/30/60 minute(s) Backlight Duration Autoscroll Time Autoscroll Window Transition Adjustable 1-60s Time Dimensions 35mm rail installation DIN-4 Button...

  • Page 7: Technical Drawing

    1.5 Technical Drawing 1.6 Connection Diagram B Gnd B Gnd In1 In2 InC In1I n2 InC O1 OC O2 OC O1 OCO 2 OC YÜK / LOAD YÜK / LOAD 1.7 Terminal Structure Modbus Ethernet Main Terminal Cable Section 2,5 – 25mm 2,5 –...

  • Page 8: Display And Gui Design

    1.8 Display and GUI design 1.8.1 Front Panel View Notification Reactive Active Energy Energy Pulse Pulse LED Input 1 & 2 Output 1 & 2 1.8.2 Key Functions Button Description Home Down...

  • Page 9: Icons

    1.9 Icons Icon Description Icon Picture Settings Home Up and down Capacitive Inductive Tariff Battery Level (When the battery runs out, the icon lights up) Critical Connection Error Seal Cover Auto Scroll Obis Codes Total Active Import Energy= “1.8.0” Total Active Export Energy = “2.8.0” L1 Voltage = “32.7.0”...

  • Page 10: Menus

    3. Menus Your device has 4 main menus. These main menus are as follows; • Measurements • Power • Energy • Settings 3.1 Menu Functions You can see the menu related functions in this section. 3.1.1 Measurement Measurement menus appear on this screen. You can enter the detail menu by pressing the OK button. 3.1.1.1 Voltage Phase-Neutral 1 voltage values of the phases are displayed in this menu.
  • Page 11 Phase-Phase 1-2 voltage values are displayed in this menu. You can switch between the Minimum Voltage (Phase-Phase) and Maximum Voltage (Phase-Phase) menus with the up&down buttons by pressing the OK button. Phase-Phase 2-3 voltage values are displayed in this menu. You can switch between the Minimum Voltage (Phase-Phase) and Maximum Voltage (Phase-Phase) menus with the up&down buttons by pressing the OK button.

  • Page 12: Frequency

    3.1.1.2 Frequency You can view the Frequency menu by pressing the up&down buttons. You can switch between the minimum and maximum menus with the up&down buttons by pressing the OK button. 3.1.1.3 Current This screen displays the current values measured instantaneously for each Phase. You can see the values of Min Current (Phase-Neutral), Max Current (Phase-Neutral), Demand (Phase-Neutral) and Max Demand (Phase-Neutral) by pressing the OK button.

  • Page 13: Power Menu

    You can switch between the Minimum, Maximum, Demand and Maximum Demand menus with the up&down buttons by pressing the OK button. Below you can see the current value in phase L 3. You can switch between the minimum, maximum, demand and maximum demand menus with the up&down buttons by pressing the OK button.

  • Page 14: Reactive Power

    You can switch between the Minimum, Maximum, Demand and Max Demand menus with the up& down buttons by pressing the OK button. You can switch between active powers belonging to phases with up&down buttons. 3.1.2.2 Reactive Power You can access Reactive Power menu with up&down buttons in the power menu. You can switch between the Minimum, Maximum, Demand and Max Demand menus with the up&down buttons by pressing the OK button.

  • Page 15: Apparent Power

    You can switch between reactive powers belonging to phases with up&down buttons. 3.1.2.3 Apparent Power You can access the Apparent Power menu with the up&down buttons in the power menu. You can switch between the Minimum, Maximum, Demand and Max Demand menus with the up& down buttons by pressing the OK button.

  • Page 16: Energy Menu

    3.1.3 Energy Menu Energy menus can be seen on this screen. You can enter the detail menu by pressing the OK button. 3.1.3.1 Active Import Energy You can view the Active Import Energy screen by pressing the OK button. You can switch between tariffs by pressing the OK button. 3.1.3.2 Active Export Energy You can access Active Export Energy menu with up&down buttons in the energy menu.

  • Page 17: Export Inductive Energy

    3.1.3.4 Export Inductive Energy You can access the Generator Export Energy menu with the up&down buttons in the energy menu. 3.1.3.5 Import Capacitive Energy You can access the Capacitive Energy menu with up&down buttons in the energy menu. 3.1.3.6 Capacitive Export Energy You can access the Capacitive Export Energy menu with up&down buttons in the energy menu.

  • Page 18: Export Apparent Energy

    3.1.3.8 Export Apparent Energy You can see the Export Apparent Energy menu with up&down buttons in the energy menu. 3.1.3.9 Generator Active Energy You can access the Generator Active Energy menu with up&down buttons in the energy menu. 3.1.3.10 Generator Apparent Energy You can access the Generator Apparent Energy menu with the up&down buttons in the energy menu.
  • Page 19 3.1.4.1.2 Screen Light Setting This is a sub-menu where you can adjust the Display Light for your device. You can make the changes you want to make regarding the device screen light in Settings- User Settings- BACKLIGHT submenu. When you enter the menu, the device will offer you the Yes, No and Automatic options. If you want the background light to be lit continuously, select Yes, if you want the background to be turned off No, if you want the background light to flash for a certain time and then turn off the automatic option.
  • Page 20 3.1.4.1.4 User Password Settings You can make changes to your current password by entering Settings- User Settings- USER PASSWORD submenu. On this screen, you can create the password you will use for the security of the device. On the first screen, the current password is entered. If it is entered correctly, the ENTER NEW PASSWORD screen appears.

  • Page 21: Setlog

    3.1.4.2 Installation Settings It is the screen where the setup settings are selected. You can operate in the menu with up&down buttons. 3.1.4.2.1 Nominal Voltage Setting In this menu you can configure the Nominal Voltage setup settings. 3.1.4.2.2 Nominal Frequency Setting In this menu you can configure the Nominal Frequency settings.

  • Page 22: Set Scroll

    After pressing the OK button, you can set the period minutes from this menu. After pressing the OK button, you can configure the settings of the Energy, Power, Voltage, Current and Pulse logs and get the desired values in adjustable periods. 3.1.4.4 SET SCROLL You can set the Auto Scroll mode in this menu.
  • Page 23 Please select the seconds between screens and press the OK button to set the scroll time. When you activate the Auto Scroll mode,the screens you will see after 45 seconds are shown below.

  • Page 24: Rs485

    3.1.4.5 RS485 This menu is the section where RS485 communication protocol settings are made. Communication settings of the device are made through this menu. Modbus address, bit rate, parity (parity rate) settings of the device are made through this menu. You can view RS 485 screen by pressing the OK button.

  • Page 25: Ethernet Settings

    3.1.4.5.1 485 Status You can view the status of your communication protocol on this screen. It indicates whether communication has been made with the device within 60 seconds. 3.1.4.6 Ethernet Settings You can configure the Ethernet settings of your device in this menu. You can set the Ethernet ad- dresses received by your device in this menu.
  • Page 26 3.1.4.6.2 DHCP Setting While the Client or Server mode is selected, you can configure your device’s DHCP settings as ON and OFF as follows. You can proceed by pressing the OK button. 3.1.4.6.3 IP Setting On this screen, you can view your device’s Ethernet IP information in 4 octets alternately. You can proceed by pressing the OK button.

  • Page 27: I/O

    3.1.4.6.4 DNS Setting You can view the Ethernet DNS information on this screen. You can proceed by pressing the OK button. 3.1.4.6.5 Port Setting You can configure the port settings of your device in this menu. Click the OK button to configure your port settings.
  • Page 28 After pressing the OK button, you can change the settings of the inputs in Input 1 as follows. In this option it is set to digital Input. This option is set as generator input. This option is set as pulse input. 3.1.4.7.2 Output 1 You can see the Output 1&Output 2 settings with the up&down buttons on this screen.

  • Page 29: Alarms

    3.1.4.8 Alarms In this menu, you can set your device’s alarm. 3.1.4.8.1 Alarm Snoozing Press the OK button to set the delay time. You can specify how many hours you would like to snooze your alarm on this screen. 3.1.4.8.2 Custom Alarm Setting Please press the OK button to program a special alarm.

  • Page 30: Time

    You can specify whether to activate or not by using up&down buttons. After you press the Yes option, you can see the screen where you can make P demand or S demand choices. You can enter the Limit value in this menu. In this menu, you can specify which output you want to use with up&down buttons.
  • Page 31 3.1.4.9.1 Time Zone The user can change the time zone of the device on this screen. The time range can be selected between -12:00 and 14:00 in half-hour intervals. 3.1.4.9.2 Select Region The user enters the region information from this screen. 3.1.4.9.3 DST Settings User can change DST Setting from this screen.

  • Page 32: System

    3.1.4.9.5 Clock Settings The user sets the time of day from these screens. After pressing the OK button, you can enter the current hour, minute and second values. 3.1.4.10 System In the System Settings menu, you can view the software, hardware, serial number information of your device.

  • Page 33: Reset

    3.1.4.10.2 System Hardware This is the menu where you can view the hardware version of your device. 3.1.4.10.3 System Model No This is the menu where you will view the model no of your device. 3.1.4.11 Reset If your user security setting is active, you must first enter the password to enter the sub-menus. If you have entered a password before entering one of the sub-menus in the Reset menu, the device will not ask you for a password when entering other sub-menus.
  • Page 34 3.1.4.11.2 Reset Meter On this screen, you can reset the meter of your device by using the OK button and the up&down buttons. Indexes that you cannot reset will not be deleted. After pressing “Yes” to the question “Are You Sure?” on your screen, you can complete your transaction by receiving the “DELETED”...
  • Page 35 ENTES Elektronik Cihazlar Imalat ve Ticaret A.S. Adr: Dudullu OSB; 1. Cadde; No:23 34776 Umraniye - ISTANBUL / TURKIYE Tel: +90 216 313 01 10 Fax: +90 216 314 16 15 E-mail: contact@entes.eu Web: www.entes.eu Call Center Technical Support: 0850 888 84 25...
