DC AMMETER
DCA-10 / 10A / 10C / 10S / 10CS / 11 / 11A / 11C / 11S / 11CS
User Manual and Menu Map
www.entes.com.tr
A4741 / Rev.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCA-10 and is the answer not in the manual?

Questions and answers

Related Manuals for Entes DCA-10

Summary of Contents for Entes DCA-10

  • Page 1 DC AMMETER DCA-10 / 10A / 10C / 10S / 10CS / 11 / 11A / 11C / 11S / 11CS User Manual and Menu Map www.entes.com.tr A4741 / Rev.1...
  • Page 2 Warnings ATTENTION - Disconnect all power before connecting the device. - Connect a button or a circuit breaker between the grid and the supply inputs of the device. - Don’t remove the front panel while the device is connected to the network. - This button or circuit breaker must be in close proximity of the device.

  • Page 3: Table Of Contents

    600 s. - The device provides flexible usage with wide supply voltage range. 85-265 V AC/DC (DCA-10/10A/10C/10S/10CS), 10-56V DC (DCA-11/11A/11C/11S/11CS ) - The device settings can be protected from changes by unauthorized personnel by specifying a 4 digit user password.

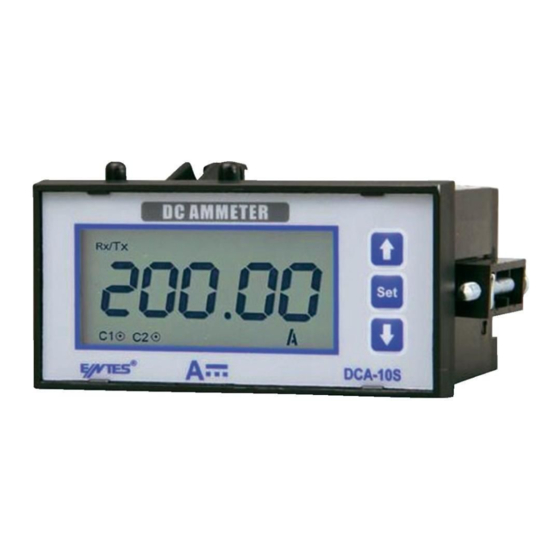

  • Page 4 Usage of Front Panel and Buttons 1.3 FRONT PANEL 1. Up button The device has a back-lit 2.5” LCD which contains two lines as numeric and alpha-numeric, warning 2. Set button, for entry to menu and value entry symbols and notification signs. There are three buttons for programming the device. Explanations 3.

  • Page 5: Usage Of Device

    Note: In order for a change that you committed in the menu to be in effect, you must give approval - RS-485 connector (4-Pin)(DCA-10S/10CS/11S/11CS) for those changes when exiting the menu. Otherwise, changes will not be in effect. - 2 Relay connectors ( 4-pin)(DCA-10C/10CS/11C/11CS) - Supply input (2-pin) (85-265V AC/DC (DCA-10/10A/10C/10S/10CS), 10-56V DC (DCA-11/11A/11C/11S/11CS))
  • Page 6 MAIN MENU FLOW 2.2.1 SHUNT MENU Current and voltage values of the external shutn resistor which will be connected to the device to measure the current is set in this menu. There are 2 submenus under SHUNT menu. “SHUNT C”, “SHUNT V”. 001.00 Only valid for Only valid for...
  • Page 7 “SHUNT V” Shunt Voltage Setting Menu The voltage value of the shunt resistor which will be connected to the device is entered in this menu. Shunt voltage can be entered between 50mV and 150mV. When this parameter is changed, maximum ALARMS ALARM 1 ALARM 2...
  • Page 8 "ALRM STAT" Alarm Status Setting Menu “ALRM TYPE” Alarm Type Setting Menu Alarm function of the relay is activated in this menu. If "OFF" option is selected in this menu, alarm Operating mode of the alarm is set in this menu. Alarm has 3 operating modes which are High, Low and parameters of the corresponding relay can’t be accessed.
  • Page 9 “H ON DEL” When the alarm type is selected as Low Alarm, first contact output opens after an on-delay time (“L It is the delay time for the high current alarm to activate. The value is entered as seconds. It can be ON DEL”) if the measured current becomes less than the entered minimum current value (“LOW entered between 000.0 and 999.9 seconds.
  • Page 10 “LOW HYS” “TRIP” Return value (to the normal operation) from the low current fault which is the hysteresis current value If the measured current value becomes more than 1.5 times of set maximum current value when the is entered in this menu. A value between 0...Shunt Current/2 can be entered. “TRIP”...

  • Page 11: Analog Output Setting Menu

    2.2.4 “ANLG OUT” Analog Output Setting Menu “HIGHEST” “ANLG OUT” The current value corresponding to the maximum value of the selected analog output type is set in The device can give a voltage or current output with respect to the measured current according to your this menu.
  • Page 12 2.2.5 “RS-485” Serial Communication Setting Menu “BAUDRATE” Baudrate Settings All measured parameters can be transferred via RS485 line with MODBUS protocol and menus can be Enter one of the 2400 bps, 4800 bps, 9600 bps, 19200 bps, 38400 bps values as stated in the set remotely.
  • Page 13 MODBUS RTU PROTOCOL Preset Single Register (06H) function is used for change device settings (shunt voltage/current etc.) and Standart MODBUS RTU message is shown below. resetting the measured minimum/maximum values. For example; below message can be sent to set the shunt voltage value to 100: ADDRESS FUNCTION DATA...

  • Page 14: Reset Menu

    2.2.6 “RESET” Reset Menu “RESET MAX” Maximum Value Reset Menu Minimum and maximum values among measured current values are stored on the device. Reset menu It is the menu where stored maximum current value is deleted. is used in order to delete these values. There are 2 sub-menus under Reset menu: “RESET MIN”, “RESET RESET MAX MAX”.

  • Page 15: Language Setting Menu

    BACKLIGHT Selected 2.2.9 “FCTRY SET” Factory Setting Menu parameter Factory settings are loaded in this menu. A 4 digit password is asked when entering this menu. If password displayed. protection is active, the password isn’t asked again when entering this menu because it was entered during BACKLIGHT BACKLIGHT entering the main menu.

  • Page 16: Security Setting Menu

    2.2.10 “SECURITY” Security Setting Menu “CHNG PASS” Change Password Menu Device password settings are done in this menu. There are 2 sub-menus under SECURITY menu. Password is changed in this menu. “PASS ACTV”, “PASS CHNG”. Password activation and changing operations are done under these menus.

  • Page 17: Installation

    Control Panel Area Dimensions Wall 54mm 500 A 60 mV LOAD SOURCE ENTES Cl 0.5 Only for DCA-10C/10CS/11C/11CS 50mm 63mm Only for DCA-10A/11A Only for DCA-10S/10CS/11S/11CS TYPE PR 20 (48x96) **** Only for DCA-11/11A/11C/11S/11CS ***** DCA-10/10A/10C/10S/10CS 85-265V AC/DC, DCA-11/11A/11C/11S/11CS 9-56V DC...

  • Page 18: Pc Connection

    3.3. PC CONNECTION 4. FACTORY DEFAULT VALUES: Alarms:(DCV-10C/10CS/11C/11CS) MAX. 31 DEVICES CAN BE CONNECTED ON THE SAME LINE 1.Alarm: Alarm Status : Passive MAX. 1200 mt. RS-485 / RS-232 Latch : Off Converter Trip : Off Contact Position (Output Inverse) : Off Alarm Type : High Alarm...

  • Page 19: Technical Features

    High Alarm Off Delay (d_off_time) : 10s 10-56V DC (DCA-11/11A/11C/11S/11CS) Low Alarm On Delay (d_on_time) : 20s Frequency :50/60 Hz (DCA-10/10A/10C/10S/10CS) Low Alarm Off Delay (d_off_time) : 10s Supply Input Power Consumption :< 4 VA Shunt Parameters: Measuring Input Power Consumption :<...

  • Page 20: Register Table

    Ambient Temperature : -20 ... 70°C 6. REGISTER TABLE: Display : 2.5 inches Backlit LCD 16 Bit Register Table Dimensions : PR-20 Device Protection Class : Double Insulation - Class II ( ) Unit Description Range Multiplier Format Casing Protection Class : IP 40 Terminal Protection Class : IP 00...
  • Page 21 Description Range Unit Multiplier Format Range Unit Multiplier Format Description Alarm 1 Alarm 1 Low Alarm Contact Position second ON Delay Normal Alarm 1 Inverted Low Alarm OFF Delay second Alarm 1 Alarm Type Alarm 2 Activation High Protection Active Protection Inactive Low Protection Active Protection Active...
  • Page 22 Description Range Unit Multiplier Format Range Unit Multiplier Format Description b0: 0 Relay 1 open Alarm 2 High Warning Value b0: 1 Relay 1 closed Shunt Current b2: 0 Relay 1 High Alarm Fault Alarm 2 Shunt Current b2: 1 Relay 1 Low Alarm Fault Low Warning Value b3: 0 Relay 1 High Alarm ON delay doesn’t count Alarm 2...
  • Page 23 Description Range Unit Multiplier Format Description Range Unit Multiplier Format Backlight Status Analog Output Type/Range Backlight Off 0 OUTPUT INACTIVE Backlight On continuously 1 OUTPUT TYPE VOLT RANGE = 0-10 V Backlight On for 30 seconds 2 OUTPUT TYPE VOLT RANGE = 2-10 V Backlight On for 1 minute 3 OUTPUT TYPE CURRENT RANGE = 0-20 mA Backlight On for 5 minutes...

  • Page 24: Menu Map

    7. MENU MAP DEVICE ID DEVICE ID && If password is displayed if password is active. VERSION NO is wrong. PASSWORD PASSWORD PASSWORD 024.00 ERROR SERIAL NO If password If password is inactive. is correct. DEVICE ID DEVICE TYPE DEVICE ID DEVICE TYPE DEVICE ID DEVICE TYPE DEVICE ID DEVICE TYPE...
  • Page 25 Only valid for DCA-10C/10CS/11C/11CS. ALARM STAT ALARM STAT ALARM STAT ALARM1 BACK MENU Selected parameter is displayed. ALARM 2 CNTCT POS CNTCT POS CNTCT POS It returns to one from which alarm setting is returned. ALRM TYPE ALRM TYPE ALRM TYPE ALRM TYPE HIGH Selected parameter is displayed...
  • Page 26 Sadece DCA-10A/11A için geçerlidir. Only valid for DCA-10S/10CS/11S/11CS. RS 485 ADDRESS BACK MENU BAUDRATE PARITY ANLG OUT ANLG OUT NONE 9600 0-20 ANLG OUT Last entered value is displayed. ADDRESS BAUDRATE PARITY HIGHEST HIGHEST HIGHEST ANLG OUT Last entered value is displayed. LOWEST LOWEST LOWEST...
  • Page 27 Selected parameter is displayed RESET RESET MIN RESET MAX BACK MENU LANGUAGE LANGUAGE LANGUAGE RESET MIN RESET MAX If password is inactive. If password is wrong. ENTR PASS ENTR PASS FCTRY SET ENTR PASS ERROR If password is correct. If password is active. FCTRY SET SETTINGS DONE...
  • Page 28 If password is correct. SECURITY PASS ACTV PASS CHNG BACK MENU OLD PASS OLD PASS NEW PASS NEW PASS If password is wrong. If password is wrong. If password is wrong. ENTR PASS OLD PASS AGAIN ENTR PASS ENTR PASS ERROR ERROR ERROR...
