- Page 1 EMK-01 Class A Quality Analyzer...
-
Page 2: Table Of Contents
7.5. RS485 ..............................8 7.6. Ethernet...............................8 7.6.1. Connection of EMK-01 to LAN ....................8 7.6.2. Connection of EMK-01 to Wi-Fi ....................8 7.6.3. Connection of EMK-01 to LAN with NAT server ...............9 7.7.USB ..............................10 7.8. Temperature Sensor ..........................10 7.9. Digital Inputs / Outputs ........................10 8. -
Page 3: Introduction
1. Introduction EMK-01 Class A quality analyzer is designed for measurement of network quality in LV and MV according to the norm EN 50160. Technology of measurement is performed according to the norm “IEC 61000-4-30: Electromagnetic compatibility (EMC) – Part 4-30: Testing and measurement methods – Power quality measurement method “, measurement class “Class A”. -
Page 4: Device Description

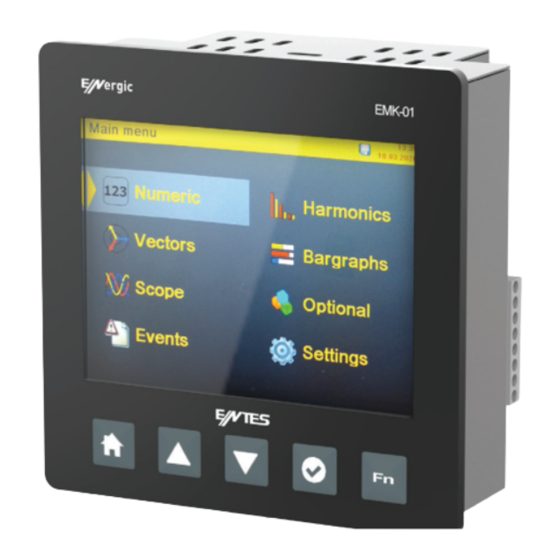

4. Device Description 4.1. Front Panel Main menu 00:30 01.01.2000 Numeric Harmonics Vectors Bargraphs Scope Optional Events Settings Picture 1. Front panel label Exit key for canceling or return Cursor key for moving up in the menu and increasing parameter value Cursor key for moving down in the menu and decreasing parameter value OK key for entering the menu and parameters Fn (zoom) key for changing function of other buttons... -
Page 5: Measured Parameters
EMK-01 Class A quality analyzer is designed for measurement and monitoring of electrical parameters in 2, 3 and 4 conductor networks in TN and TT grids. EMK-01 quality analyzer architecture is based on fast 32 bits RISC microprocessor which provides high computing power... -
Page 6: Installation
20 mm at the sides.. Picture 3. Dimensions EMK-01 is fixed into switchboard wall by two clips that are placed on the device at the bottom and top. 7. Connection The level and type of used power supply voltage has to be the same as it is written on the terminal plate label. -
Page 7: Grounding Conductor
3 mm diameter and it is marked by symbol 7.2. Supply Voltage Supply voltage is required to operate EMK-01. The type and level of necessary supply voltage is written on the rear label. Before applying the supply voltage, make sure that the voltage level and system frequency match the details on the label. -
Page 8: Rs485
A and B. Shielding is not required Notice İ EMK-01 does not have built in termination resistor. If the device is at the end of RS485 bus, it should be terminated by 120 Ω resistor. RS485 interface is fully galvanic insulated. -
Page 9: Connection Of Emk-01 To Lan With Nat Server
7.6.3. Connection of EMK-01 to LAN with NAT server If there is request for remote access (from Internet) to EMK-01 which is placed in the local network behind the router with active NAT server, the following parameters configuration to be defined on the router. -
Page 10: Usb
7.7.USB The device has one USB interface of type B for direct connection of EMK-01 to the PC. After connection of EMK-01 via USB cable to the PC, it is necessary to select correct communication interface at software. 7.8. Temperature Sensor Temperature sensor is connected directly to EMK-01 inputs 20 and 21 according to the picture 2. -
Page 11: Device Settings
8. Device Settings EMK-01 device can be configured from panel screen for most of essential parameters. All settings available at the device screen and several others are available also in software. In this chapter the settings of the device will be completed by appropriate settings via software. -
Page 12: Connection Type
Connection setting defines the types of network system in which EMK-01 is connected. The main connection diagram of EMK-01 is shown in chapter 7.3. In the following tables are shown all possible connection variants that can be defined in the device menu.. -
Page 13: Nominal Voltage
Both voltage levels (primary and secondary) are set in Volts. 8.2.7. Current Transformers EMK-01 device has 4 current inputs for indirect measurement via current transformers with secondary current 5A or 1A. In case of current transformer usage, the primary and secondary... -
Page 14: Averaging
8.2.9. Energy It provides setting of recording interval for historical values for energy counters available in EMK-01. 8.3. Communication Settings The device is equipped by one Ethernet interface 10/100Mbit/s and RS485. All communication settings are adjusted from Communication section in the software. -
Page 15: Web Server
FTP password Password for access to EMK-01 device FTP server 1234 8.3.5. TCP Converter EMK-01 is equipped by function of Modbus TCP converter so it can provide access to devices connected on RS485 bus of EMK-01. Parameter Description Factory setting... -
Page 16: Analyser
8.6. E-mail EMK-01 can notice several events and alarms by sending an e-mail up to 4 different e-mail addresses. The e-mail notification setting is available only from software. In the software, obtain the SMTP server address from your provider for correct setting. If the SMTP server requires authentication enter the user name and password. -
Page 17: Transient
Transients of current - > EMK-01 quality analyzer detects two types of transients: absolute transient and differential transient. ● Absolute transients are detected according to override of defined voltage level. The trigger for detection of the absolute transients is defined by absolute threshold (percentage of Udin). -
Page 18: Events
Memory space for capturing of the particular transients is fixed on the maximum 8000 samples. Definition of number pre and post samples is limited by this maximum samples memory space. 8.8. Events The events captured by EMK-01 can be adjusted with the parameters given in the table below. Parameter Description... -
Page 19: Voltage Dip
Memory for capturing the samples of RMS curves is fixed on the maximum 4000 samples. Definition of number pre and post samples is limited by this maximum samples memory space. 8.8.1. Voltage Dip The dip threshold is a percentage of either Udin or the sliding voltage reference. The user should declare the reference voltage in use. -
Page 20: Inputs / Outputs
8.9. Inputs / Outputs EMK-01 quality analyzer has two user configurable inputs / outputs. Connection of the inputs / outputs is displayed in the chapter 7.9. The following input / output settings are configured through the software. Parameter Description Factory... - Page 21 Comparators C1, C2 and C3 belong to output K1 and comparators C4, C5 and C6 belong to output K2. From the picture is visible that there are logical functions between first two comparators of the group and between their result and last comparator of the group. There are two logical operators available, logical conjunction –...
-
Page 22: Data Storage
8.14. About Information about the vendor and device firmware version. 9. Operation EMK-01 allows comfort operation by easy graphic main menu which is divided to groups of related features and functions. For the navigation in the menu, cursor buttons are used. -
Page 23: Numeric
9.1.Numeric Numeric menu contains measured parameters in numeric form. Parameters are displayed on Summary menu in batches or grouped to separate screens according to logical order. Phase voltage 00:30 00:30 01.01.2000 01.01.2000 216.0 Max: Min: Avg: Current 216.0 Max: THDU Min: THDI Avg:... -
Page 24: Bar Graphs
40.0 50.0 60.0 [kW] 9.5. Scope EMK-01 shows scope of measured signal for voltage and current in all four phases. It is possible to select displayed phase or phases by pressing button and selecting the appropriate phase HOME or phases. Escaping back from the phase selection is by pressing button. -
Page 25: Rapid Voltage Change (Rvc)
RVC event. It is a dip or a swell. 9.6.3. List of Transients EMK-01 captures transient of voltage as short as 25 μs and keeps last 50 transients of each type in the non-volatile memory. Type of event... -
Page 26: Web Interface
10. Web Interface EMK-01 has built in web server to show measured parameters in the Internet browser. For enabling the web server, please check chapter 8.3.2 and configure web server settings. Web server is designed web browsers compatible with HTML5 specification. -
Page 27: Technical Specifications
12. Technical Specifications Parameter Value Supply voltage 230 VAC, 50/60 Hz (+%10,-%15) Power consumption < 8 VA Voltage measurement range V L-N 2 ... 600 VAC Voltage measurement range V L-L 4 ... 1000 VAC Current measurement range 0,001 ... 6 A (8,5 A) Frequency measurement range 40 ... - Page 28 ENTES Elektronik Cihazlar Imalat ve Ticaret A.S. Adr: Dudullu OSB; 1. Cadde; No:23 34776 Umraniye - ISTANBUL / TURKIYE Tel: Fax: +90 216 314 16 15 +90 216 313 01 10 E-mail: contact@entes.eu Web: www.entes.eu 01.02.2020...
