lift side panels and set aside in a safe place...

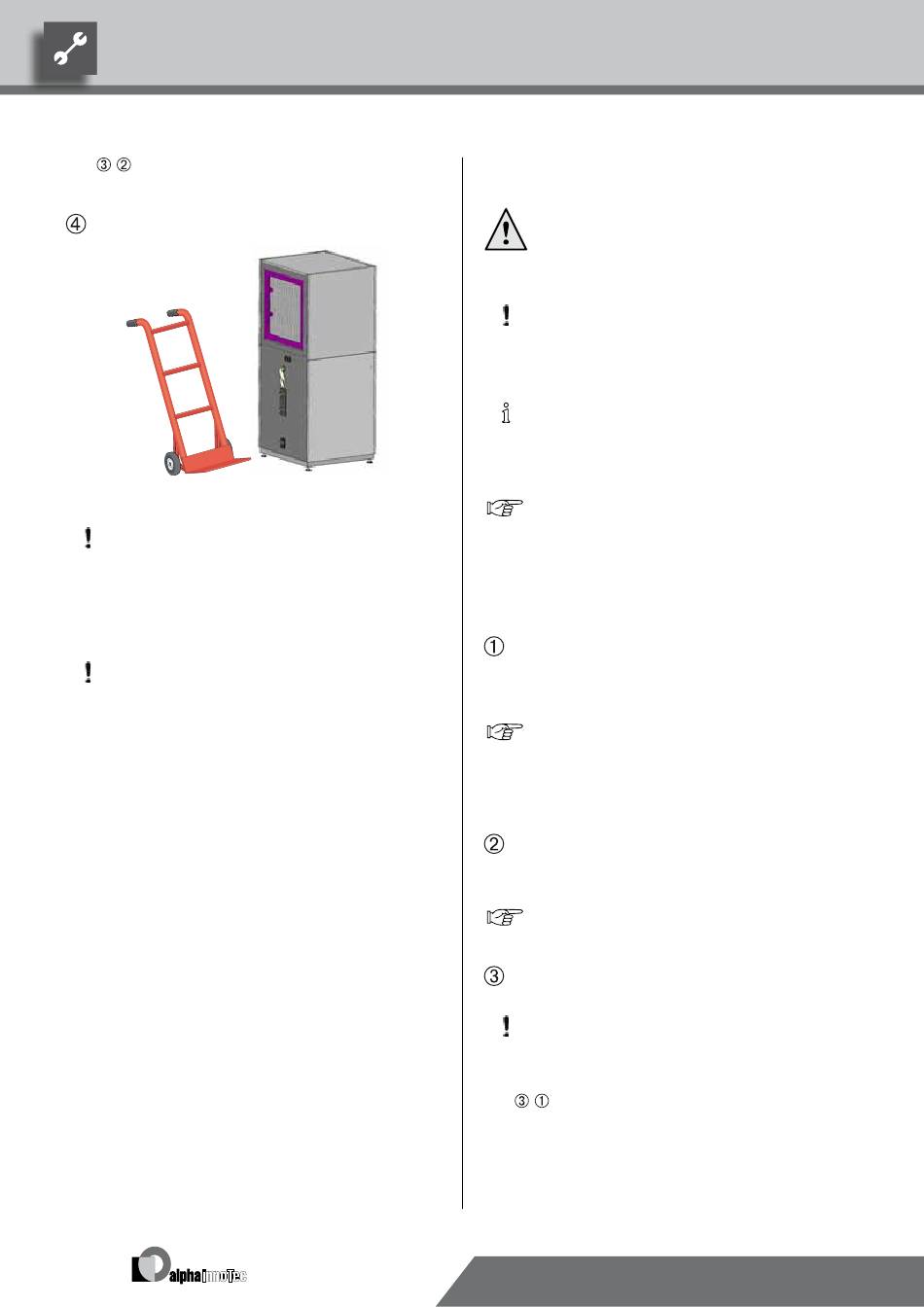

push hand truck under the unit (= rear side of unit).
Alpha InnoTec GmbH
CautIon.
If the hand truck is pushed under the unit
on the back side of the unit, make sure
not to damage any connections during
transport.
CautIon.
transport with a hand truck on the front
side of the unit is not permitted.
10
EPP-Isolationshülle 31.01.2008

installation

Danger!
several people are required to install the
unit.
CautIon.
Do not tilt the unit more than a maximum
of 45° (in any direction).
notICe.
always observe the installation plan for
the respective model. note the size and
minimum clearances.
Installation plan for respective model.
Set up the unit so that the switch cabinet side
(= operating side) is accessible at all times.
proceed as follows:
If you have not already done so, remove angle
bracket, transport and packaging material from the
unit. Set the extra box to the side and lift the unit
from the wooden pallet...
"Transport with a hand truck".
dispose of angle bracket, transport and packaging
material properly and in accordance with ecological
principles...
Set unit on a stable, solid and level, preferably sound-
insulated surface. make sure that the foundation is
designed for the weight of the heat pump...
overview "Technical data/scope of delivery",
"General unit data" section.
mount feet...
CautIon.
Moving the unit without the feet mounted
can damage the floor.
•
Tip the unit slowly and carefully to one side...
Secure unit in raised position so that it cannot
accidentally tip back into the original position.
