Alpha-InnoTec LWC Series Operating Manual page 12

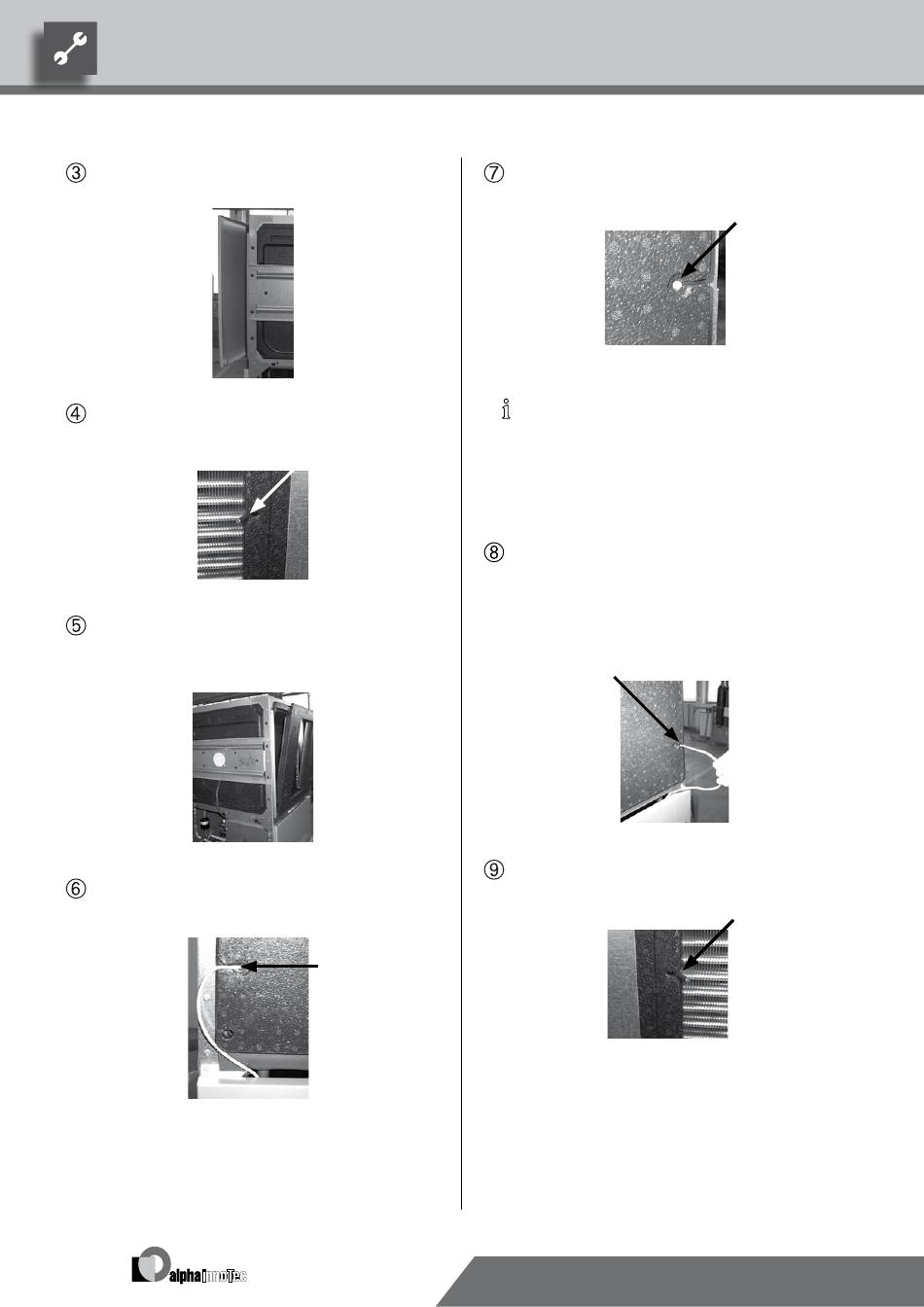

Slightly turn both side panels to the side and remove
the side panel by pushing it to the back...
Remove the sensor head from the bracket on the
left and let the wires dangle...
pull out the insulation panels on the left and right
by pulling at the marked points (abrupt, jerky
movements facilitate the process)...
proceed by carefully routing the sensor wire
through the insulation panel on the left...
12
Seal the hole you created using the dummy plug
included in the extra box...
notICe.
If necessary, you can fixate the epp
insulation using a hot-melt glue gun or
solvent-free adhesive.
the sensor must always be installed on
the side facing away from the duct.
flip over the two components on the right and
arrange them on the left, while flipping over the two
components on the left and arranging them on the
right. Slide the sensor including the wire through
the pre-punched hole on the right after punching
through the hole with a screwdriver...
clamp the sensor head into the bracket on the
right...
