notICe.
after the other end of the air duct has
been secured to the heat pump, close the
opening between the wall duct and the air
duct using the betonite waterstop tape
included with delivery.

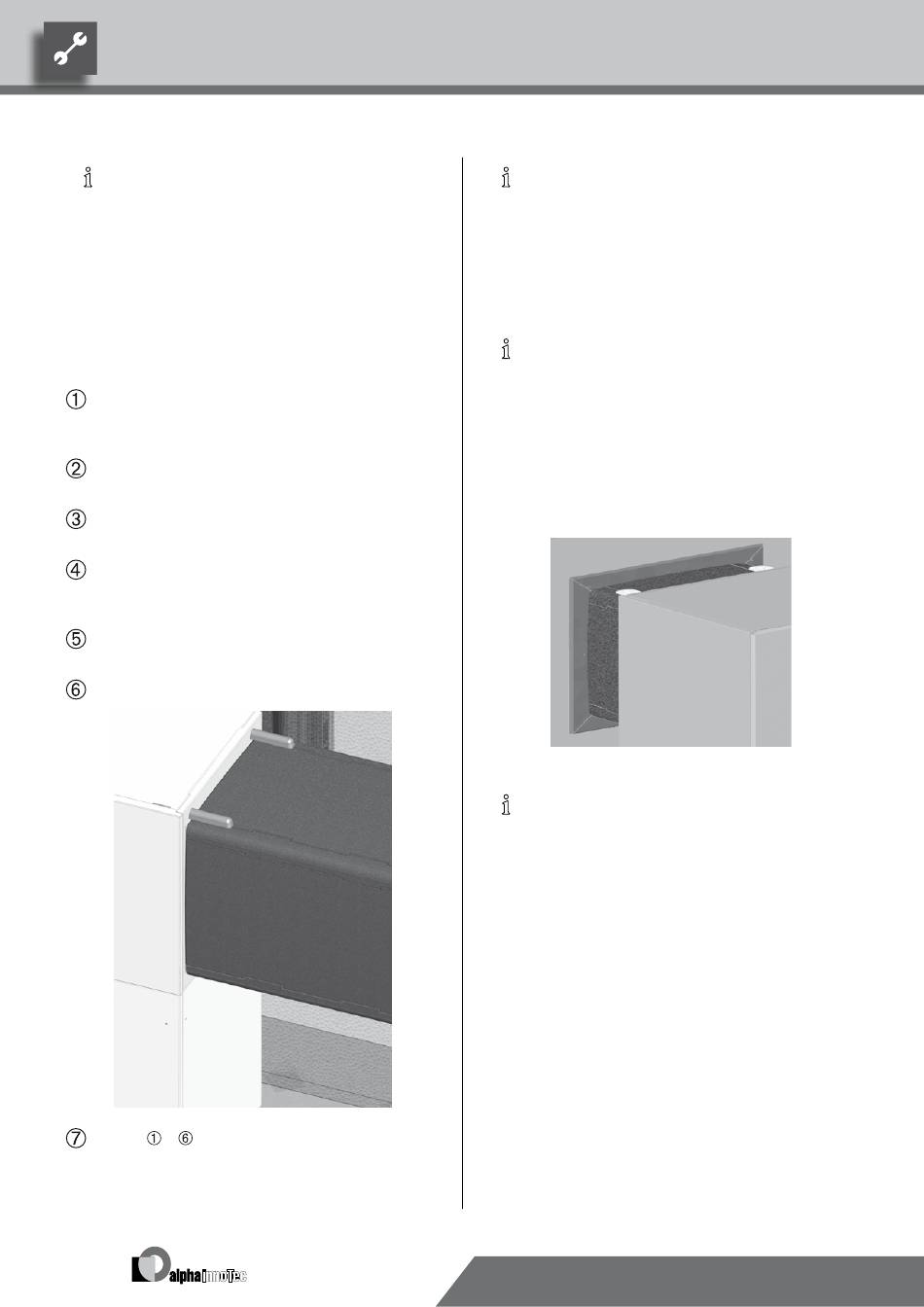

seCuring the air duCt on the heat pump
proceed as follows:
clip on the assembly rail and secure it using special
screws to the spot on the air duct designated as the
air intake side...
Stick the adapter base included with delivery on the
edge of the air duct...
position the air duct on the respective opening of
the air intake side...
Hook the tension springs included with delivery
into the holes provided for them on the air intake
side of heat pump 4...
Hook the tension springs into the assembly tail that
has been screwed on to the air duct...
Secure a protective cap over the assembly rail...
Repeat – the process on the air output side.
16
notICe.
Don't forget:
after the air ducts have been secured to
the heat pump, close the opening between
the wall duct and the air duct using the
betonite waterstop tape included with
delivery.
notICe.
secure the air ducts to the cover using
appropriate measures.
sCreen frame assembly
Screw the screen frame to the wall ducts on both the air
intake and output sides.
notICe.
the screen frame serves no technical
purpose; it is present solely to create a
seamless transition to the wall duct.
