power ConneCtion
If unit is closed, open front panel...
"Transport with a hand truck"

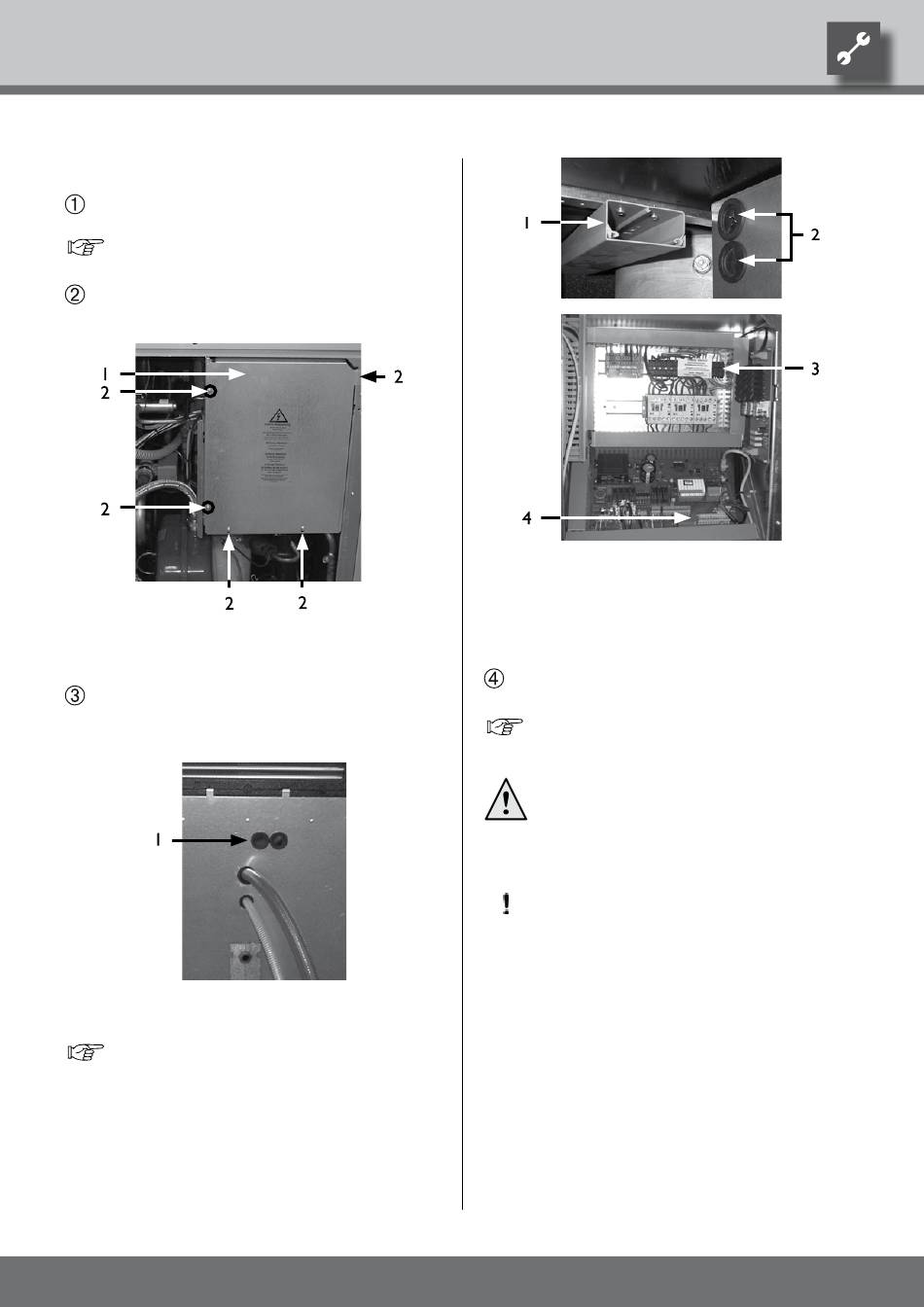

open electrical switch cabinet of unit. To do so,
loosen cross-head screw and lift off cover plate...
1 electrical switch cabinet
2 cross-head screw
Insert the power line and the sensor wires into the
unit through the rubber sockets on the back of the
unit...
1 Rubber sockets
for positioning of the rubber sockets for
inserting the wires, see "dimensional drawing"
for the respective model.
The wires inside the unit are guided in a closed wire
duct to the switch cabinet...
We reserve the right to modify technical specifications without prior notice.
UK830504/210627
© Alpha-InnoTec GmbH
1 Wire duct in unit
2 cable glands switch cabinet
3 connections for power
and control wires
4 connections for regulator board
Install electric connections according to the
terminal diagram that applies to your model...
Terminal diagram for respective model.
Danger!
Install electric connections only according
to the terminal diagram and the circuit
diagrams that apply to your model.
CautIon.
ensure clockwise rotary field of the load
power supply (compressor).
– an
incorrect
rotary
compressor
during
cause serious, irreparable damage to
the compressor.
field
of
the
operation
can
21
