Signal Connections - Measurement Computing PCIM-DDA06/16 User Manual

PCIM-DDA06/16 User's Guide
If your board has been powered-off for more than 10 minutes, allow your computer to warm up for at least
15 minutes before acquiring outputting analog data with this board. This warm-up period is required for the
board to achieve its rated accuracy. The high-speed components used on the board generate heat, and it takes
this amount of time for a board to reach steady state if it has been powered off for more than 10 minutes.

Signal connections

The table below lists the board connector, applicable cables, and compatible accessory products.
Connector type
Compatibility
Compatible cables
Compatible accessory products
with the C37FF-x cable or
C37FFS-x cable
Information on signal connections
General information regarding signal connection and configuration is available in the Guide to DAQ Signal
Connections (available for download from www.mccdaq.com/support/DAQ-Signal-Connections.aspx.)
The I/O connector is a standard 37-pin male connector that is accessible through the PC/AT expansion bracket.
Board connector, cables, and accessory equipment
37-pin male D connector
Pinout identical to CIO-DDA06/16
C37FF-x
C37FFS-x
DFCON-37 (D-connector, D-shell, and termination pins to construct your own
cable)
CIO-MINI37
CIO-TERMINAL
SCB-37
SSR-RACK24
ENC-MINI37

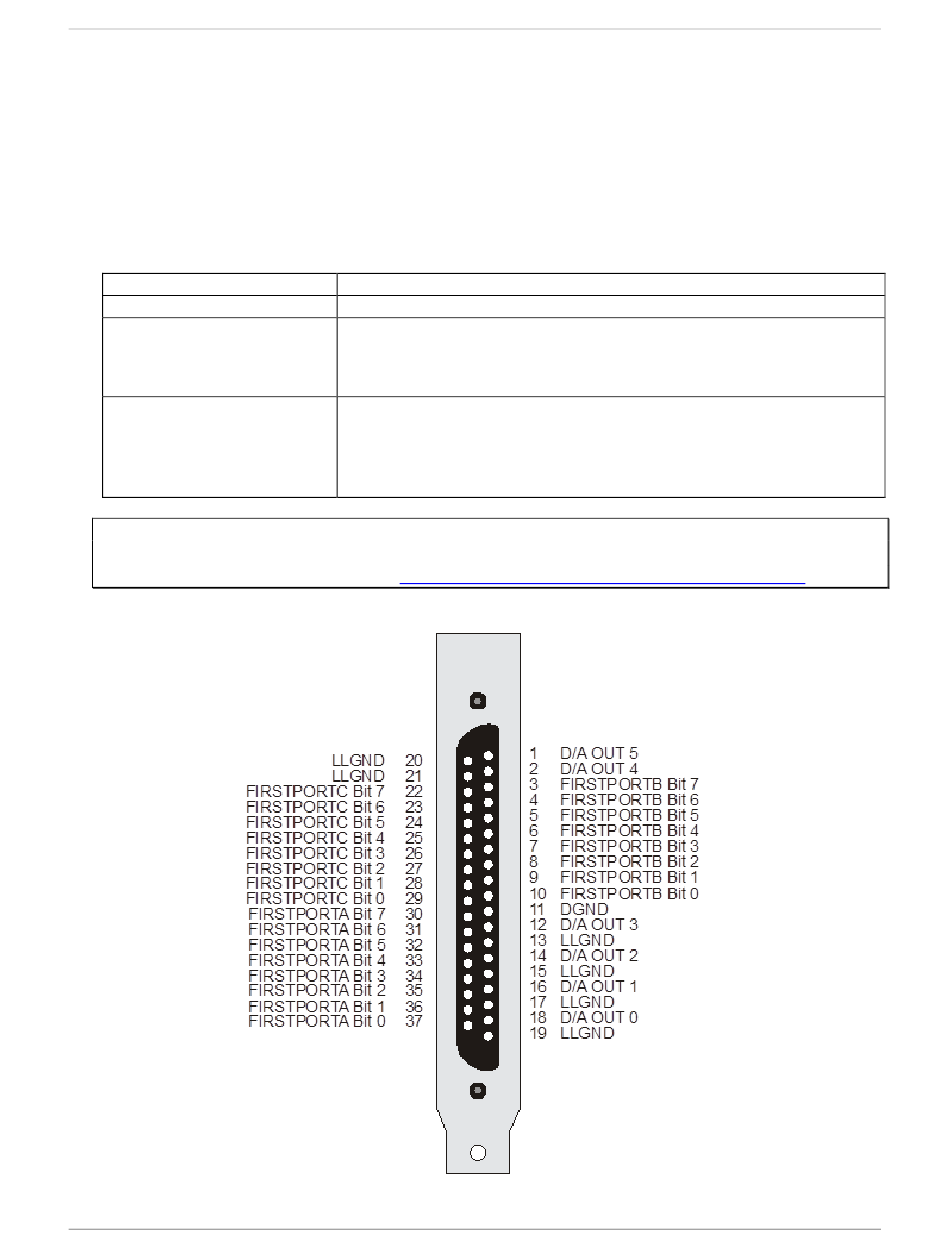

Figure 4. I/O connector pinout
8
