Bradley Express MG Series Installation Manual

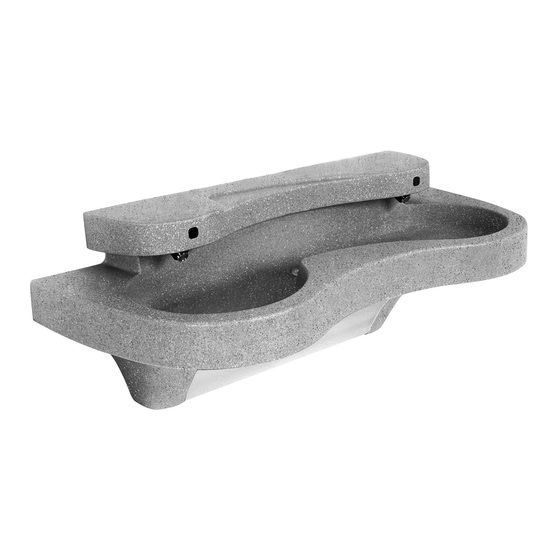

Lavatory system with touchtime control
Hide thumbs Also See for Express MG Series:

Advertisement

Quick Links

Download this manual
Read this entire installation manual to ensure proper
installation.
Flush all the water supply lines before making con nec tions.
Wall anchors used must have a minimum pull-out rating of
1,000 lbs.
File these instructions with the owner or maintenance
department.
Product warranties may be found under "Product
Information" on our web site at www.bradleycorp.com.
215-1480 Rev. G; ECN 13-08-025
© 2014 Bradley
Page 1 of 20
4/9/2014
Installation
MG-2/TT
Express
Lavatory
®
System - MG-Series
with TouchTime

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . 2
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Installation Instructions. . . . . . . . . . . . . . . 5-13
Cleaning and Maintenance . . . . . . . . . . . . . 14
Assembly of Components . . . . . . . . . . . .15-17
Navigator
Valve Maintenance. . . . . . . . . . . 20
®
IMPORTANT
P.O. Box 309, Menomonee Falls, WI 53052-0309
Phone: 800.BRADLEY (800.272.3539)
bradleycorp.com
Control
®
Fax: 262.253.4161

Advertisement

loading
Need help?

Need help?

Do you have a question about the Express MG Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bradley Express MG Series

Summary of Contents for Bradley Express MG Series

  • Page 1: Table Of Contents

    Product warranties may be found under “Product Information” on our web site at www.bradleycorp.com. 215-1480 Rev. G; ECN 13-08-025 P.O. Box 309, Menomonee Falls, WI 53052-0309 © 2014 Bradley Phone: 800.BRADLEY (800.272.3539) Fax: 262.253.4161 Page 1 of 20 4/9/2014...

  • Page 2: Pre-Installation Information

    • ½" Nominal copper tubing for hot and cold supplies and 1½" NPT drain piping • 110 volt electrical outlet for 110/24 VAC plug-in transformer (supplied) • 240/208-volt or 277-volt electrical outlet for optional electric tankless water heater Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 3 27" (686) 47" (1194) 22" (mm) (559) 9½" (241) 21½" (546) *39" (991) *33½" (851) *29½" *17½" (749) (445) *Subtract 4" from vertical dimensions for compliance with ADA guidelines for children’s use. Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...

  • Page 4: Dimensions

    30" Grades Pre-K thru 5 or 6 (762) FLOOR 14" 26" (356) (660) (mm) 37½" (952) TAS Juvenile Height 32" Grades 6 thru 8 or 9 (813) FLOOR 16" 28" (406) (711) Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...

  • Page 5: Installation Instructions

    TEMPERED SUPPLY – STUB OUT 2" ³⁄₈" WALL ANCHORS (8) PLACES MIN. PULL-OUT STRENGTH 1000 LBS. PER ANCHOR *Juvenile Height Mounting: Subtract 4" from vertical dimensions for compliance with ADA guidelines for children’s use. Figure 1 Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 6 (457) FLOOR ½" NOMINAL COPPER TUBING FOR HOT AND COLD SUPPLIES OR TEMPERED SUPPLY – STUB OUT 2" Figure 1b ³⁄₈" WALL ANCHORS (8) PLACES MIN. PULL-OUT STRENGTH 1000 LBS. PER ANCHOR Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 7 MG-2/IR bowl and frame to the wall. ® 1½" NPT DRAIN 110 VOLT GFCI STUB OUT 2” ELECTRICAL OUTLET ½" NOMINAL COPPER TUBING FOR HOT AND COLD SUPPLIES OR TEMPERED SUPPLY. STUB OUT 2” TRANSFORMER LOCATION Figure 2 Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 8 FRAME END CAP LEFT ³⁄₈" BOLTS AND WASHERS (6) PLACES TERREON ® END CAP RIGHT ¼" - 20 SCREWS STAINLESS STEEL AND FINISHING ACCESS PANEL WASHERS (5) PLACES FRONT VIEW Figure 3 Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 9 AND WASHER SPRAYHEAD ³⁄₈" BOLT AND WASHER BOWL ¼"-20 x ½" PAN HEAD SCREWS AND TERREON ® TERREON ® WASHERS END CAP (R) END CAP (L) (2) PLACES Figure 4 BACK VIEW Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 10 THERMOSTATIC SUPPLY MIXING VALVE SLOT IN FRAME FLEXIBLE SUPPLY Figure 5a Figure 5b HOSE Single FLEXIBLE SUPPLY HOSE Tempered (TO SOLENOID Supply BRACKET) TO SUPPLY LINE Figure 5c TEMPERED LINE ADAPTER (S39-804) Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 11 OUTLET COLD WATER Figure 6b INLET 2" (51mm) SUPPLY REF. ONLY COLD WATER SUPPLY OPTIONAL 240V/208V ELECTICAL BOX LOCATION, 2-1/2" x 4" RECOMMENDED 240V/208V Figure 6c ELECTICAL BOX LOCATION, 4" x 4" Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 12 Left Tube Gray Green A Black F Brown H Brown F Brown G Brown E Brown D Black C Black Right Button B Black A Black Right Right Gray Green Figure 7 Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 13 4. Reinstall panel to frame with the five Torx-head screws provided (see Figure 3 on page 8). NOTE: Push button activation takes place only when released, (prevents “hold open” activation). Figure 8 Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...

  • Page 14: Cleaning And Maintenance

    * Use of brand names is intended to indicate a type of cleaner and does not constitute an endorsement. ** It is emphasized that all products should be used in strict accordance with package instructions. • Repair kit: A repair kit is available from Bradley to repair/patch the Terreon bowl and shelf. Contact your ®...

  • Page 15: Assembly Of Components

    BRADLEY REP. FOR ASSISTANCE). SPRAYHEAD MOUNTING BOLTS (3) END CAP (RIGHT) (PART NUMBER VARIES WITH COLOR OF UNIT. CONTACT YOUR LOCAL BRADLEY REP. STAINLESS STEEL FOR ASSISTANCE). ACCESS PANEL 186-1263 Figure 9 Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 16 FRAME NAVIGATOR MIXING VALVE ⁵⁄₁₆" I.D. BRAIDED HOSE 269-1365 SOLENOIDS Figure 10 SPRAYHEAD AERATOR SPRAYHEAD BODY ASSEMBLY S05-166 MOUNTING LOCATION Figure 11 TO BOWL (3) PLACES Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 17 150-201 TOUCHTIME SWITCH ® (15-SECOND) S83-139B ACCESS PLATE/AERATOR ASSEMBLY S05-166 ¼" CONNECTOR 145-089 AERATOR/HOUSING-FLOW SCREW-ALLEN SOCKET #10-24 CONTROL Figure 12 160-138 S05-142A Other replacement parts 110-24 VAC CLASS II PLUG-IN TRANSFORMER S83-134 Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...

  • Page 18: Solenoid Valve Troubleshooting

    • reconnect to the adjacent valve and turn on the electrical and water supplies to the unit; • pass your hand in front of the sensor. If the station still fails to turn on, replace the sensor (see page 19). Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 19 118-307A VALVE BODY, 1/4" THRU 269-983 DIAPHRAGM 269-577 ARMATURE 269-578 SPRING 269-1729 ARMATURE HOUSING 269-1730 CLAMP, ARMATURE HOUSING 269-579 COIL, SOLENOID VALVE 160-447 SCREW, #8 X 5/8 125-165 O-RING, #2-013 Figure 13 Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
  • Page 20 198-014 Check Valve* 132-051 Retaining Ring* 118-319 Valve Body 146-079 U-Clip * Included with Prepack S65-326 Tempered Line Adapter Option Part no. S39-804 (replaces S59-4000 if tempered line is used) Strainer (173-028) Bradley • 215-1480 Rev. G; ECN 13-08-025 4/9/2014...
