Read this entire installation manual to ensure proper installation, then file these
instructions with the owner or maintenance department.
Flush all the water supply lines before making connections. Debris in supply
lines will cause the valves to malfunction.
Turn OFF electrical power to the outlet when installing the Express® Deck.
Wall anchors used must have a minimum pull-out rating of 1,000 lbs.
Product warranties may be found under "Product Information" on our web site at
www.bradleycorp.com.
215-1277 Rev. C; EN 03-817
© 2004 Bradley Corporation
Page 1 of 11
6/8/04

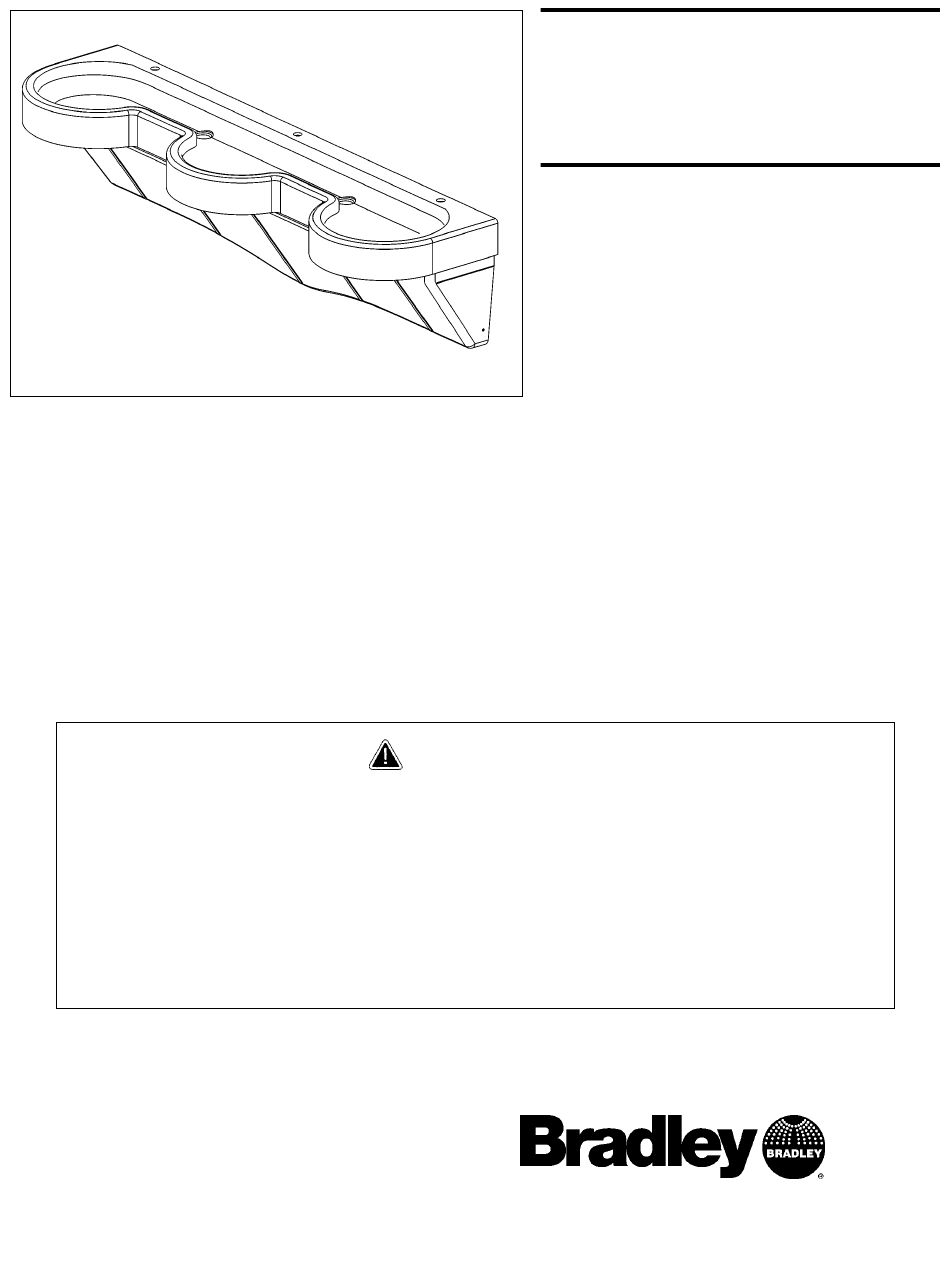

Installation
Instructions
For Service Only
EXD-3/WHTAS

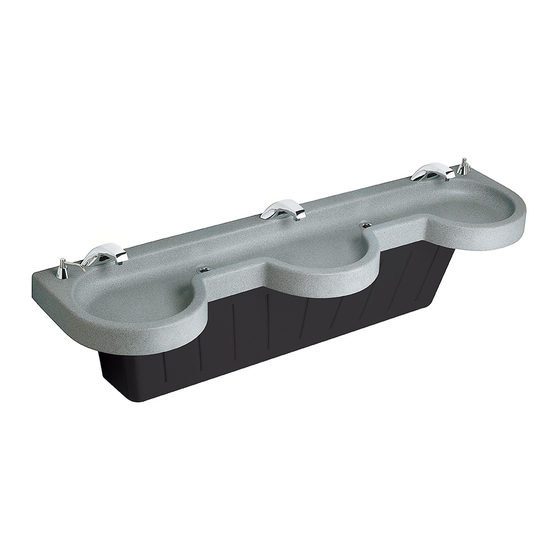

Express® Deck Lavatory
System EXD Series
Complies with Texas Accessibility
Standards (TAS) for Juvenile Height
applications.
Table of Contents
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3
Installation Instructions . . . . . . . . . . . . . . . . . 4-9
Cleaning and Maintenance . . . . . . . . . . . . . . . . .9
Assembly of Components . . . . . . . . . . . . . . . .10
Vernatherm™ Valve . . . . . . . . . . . . . . . . . . . . .11
IMPORTANT
P.O. Box 309, Menomonee Falls, WI 53052-0309
Phone: 1-800-BRADLEY Fax: (262) 251-5817
http:\\www.bradleycorp.com
Advertisement
Related Manuals for Bradley Express EXD-3/WHTAS
Summary of Contents for Bradley Express EXD-3/WHTAS
- Page 1 Product warranties may be found under "Product Information" on our web site at www.bradleycorp.com. P.O. Box 309, Menomonee Falls, WI 53052-0309 215-1277 Rev. C; EN 03-817 Phone: 1-800-BRADLEY Fax: (262) 251-5817 © 2004 Bradley Corporation http:\\www.bradleycorp.com Page 1 of 11...
- Page 2 Express® Deck Lavatory System EXD Series EXD-3/WHTAS Installation Instructions - For Service Only EXD-3/WHTAS Express® Deck Lavatory System Dimensions 6/8/04 Bradley Corporation • 215-1277 Rev. C; EN 03-817...
- Page 3 Express® Deck Lavatory System EXD Series Installation Instructions - For Service Only EXD-3/WHTAS Dimensions continued . . . Juvenile Height EXD-3/WHTAS Grades Pre-K thru 5 or 6 Juvenile Height EXD-3/WHTAS Grades 6 thru 8 or 9 Bradley Corporation • 215-1277 Rev. C; EN 03-817 6/8/04...
- Page 4 Figure 1a below or 1b on page 5. NOTE: The anchors will be used to mount the Express® Deck bowl and frame to the wall. EXD-3/WHTAS Juvenile Height (grades Pre-K thru 5 or 6) Figure 1a 6/8/04 Bradley Corporation • 215-1277 Rev. C; EN 03-817...
- Page 5 Express® Deck Lavatory System EXD Series Installation Instructions - For Service Only EXD-3/WHTAS EXD-3/WHTAS Juvenile Height (grades 6 thru 8 or 9) Figure 1b Figure 2 Bradley Corporation • 215-1277 Rev. C; EN 03-817 6/8/04...
- Page 6 3/8" bolts and washers to mount the frame to the wall (see Figure 3 below and Figure 4 on page 7). FRAME (10) 3/8" BOLTS AND WASHERS (9) TORX-HEAD SCREW PANEL Figure 3 6/8/04 Bradley Corporation • 215-1277 Rev. C; EN 03-817...
- Page 7 4. Tighten the screws installed in procedure #2 above to secure the bowl assembly to the frame. Do not overtighten. Figure 4 Bradley Corporation • 215-1277 Rev. C; EN 03-817 6/8/04...
- Page 8 INSTALLER HOT SUPPLY STOP/STRAINER CHECK VALVE 7-5/8" (S60-003) (194mm) THERMOSTATIC MIXING VALVE (S01-116) Figure 5a Figure 5b #8 SCREW PLUG BOWL DRAIN PLUG RUBBER WASHER WASTE TEE WASTE SHOE Figure 6 6/8/04 Bradley Corporation • 215-1277 Rev. C; EN 03-817...
- Page 9 • Repair kit: In the unlikely event your Terreon® surface becomes damaged, it can easily and expensively be repaired. Contact your Bradley representative to order a repair kit and be sure to specify color when ordering.
- Page 10 113-006DJ Vernatherm™ Thermostatic Mixing Valve Assembly TAILPIECE (129-007) NUT (110-005) COLD SUPPLY WASHER (124-001AF) 1/2"-14 NPT SUPPLIED BY INSTALLER HOT SUPPLY STOP/STRAINER CHECK VALVE 7-5/8" (S60-003) (194mm) THERMOSTATIC MIXING VALVE (S01-116) 6/8/04 Bradley Corporation • 215-1277 Rev. C; EN 03-817...
- Page 11 No Water Cold Valve shuts off or drips Correct Correct Cold Cold Cold Reversed Cold Cold/below 107° Hot/above 107° Reversed No Water Reversed No Water Cold Cold Reversed Reversed Cold Cold Cold Bradley Corporation • 215-1277 Rev. C; EN 03-817 6/8/04...
