IO-Link Master with AS-Interface Interface StandardLine 2 Ports IP 65 / IP 66 / IP 67
>

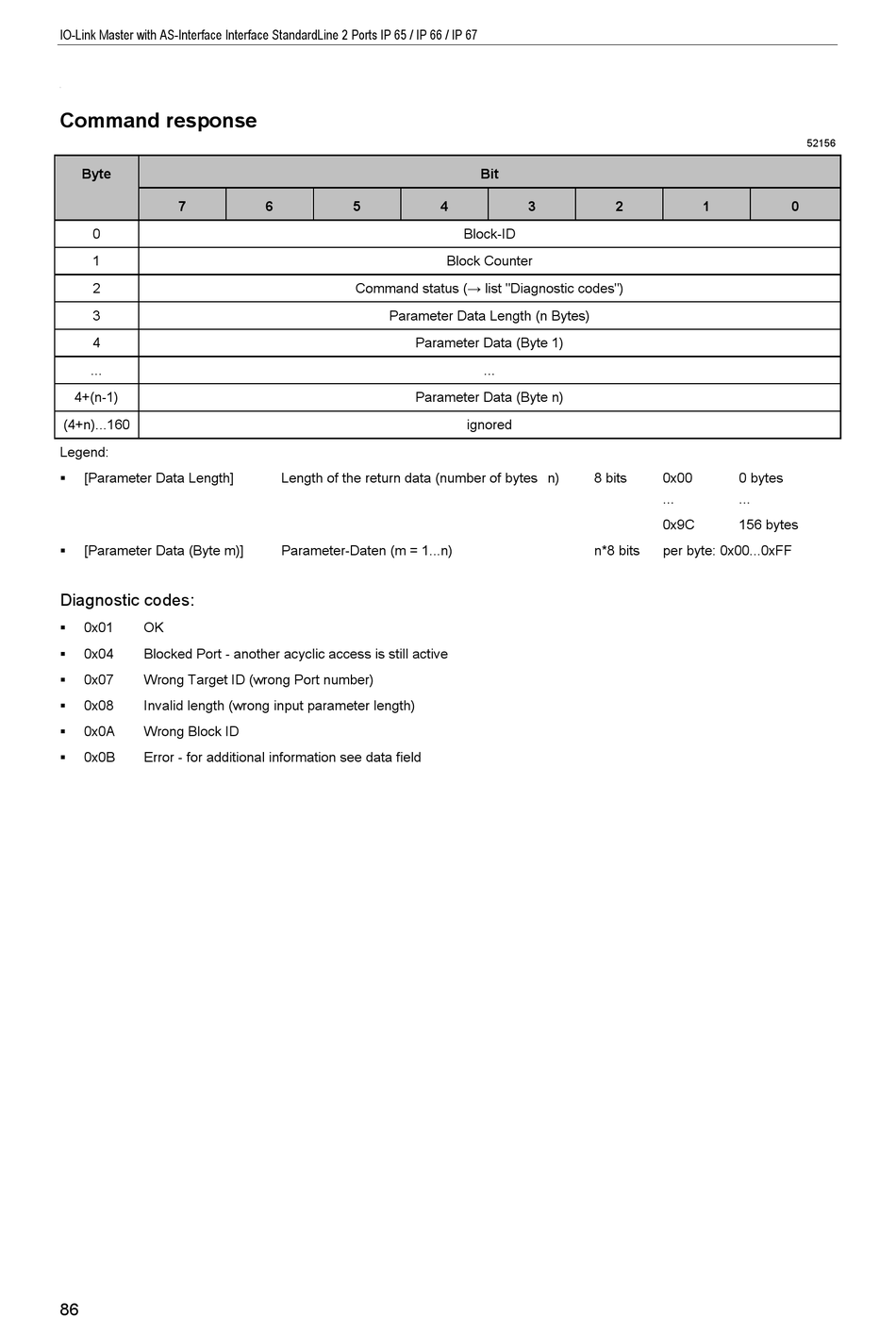

Command response
Byte
7
0
1
2
3
4
...
4+(n-1)
(4+n)...160
Legend:
[Parameter Data Length]

[Parameter Data (Byte m)]

Diagnostic codes:
0x01 OK

0x04 Blocked Port - another acyclic access is still active

0x07 Wrong Target ID (wrong Port number)

0x08 Invalid length (wrong input parameter length)

0x0A Wrong Block ID

0x0B Error - for additional information see data field

86
6 5
Command status (→ list "Diagnostic codes")
Parameter Data Length (n Bytes)
Parameter Data (Byte 1)
Parameter Data (Byte n)
Length of the return data (number of bytes n)
Parameter-Daten (m = 1...n)
Bit
4 3
Block-ID
Block Counter
...
ignored
8 bits
n*8 bits
2 1
0x00 0 bytes
... ...
0x9C 156 bytes
per byte: 0x00...0xFF
52156
0
