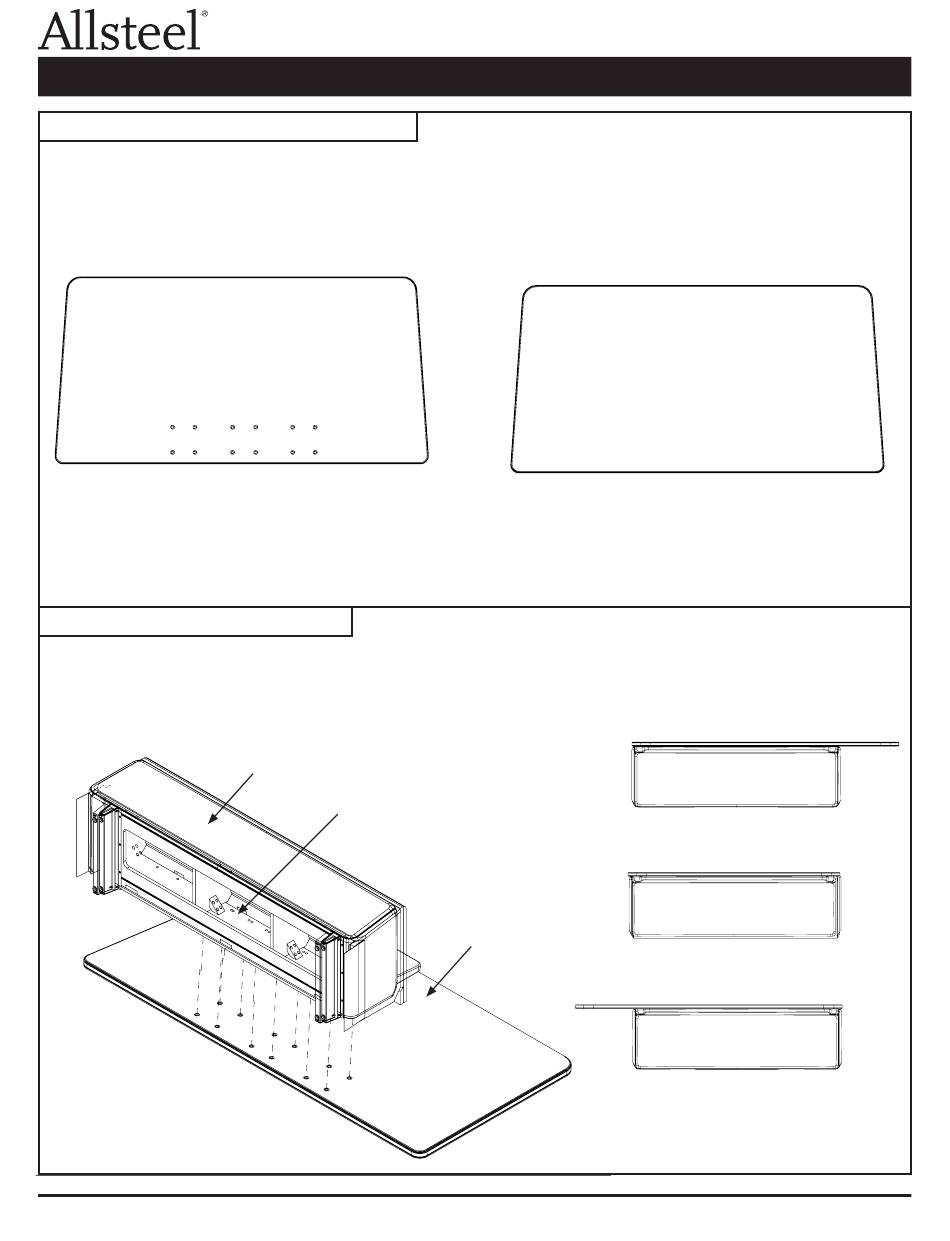

Illustration 1. Identify the front of the screen
Step 1: Locate hole cutouts on the screen.

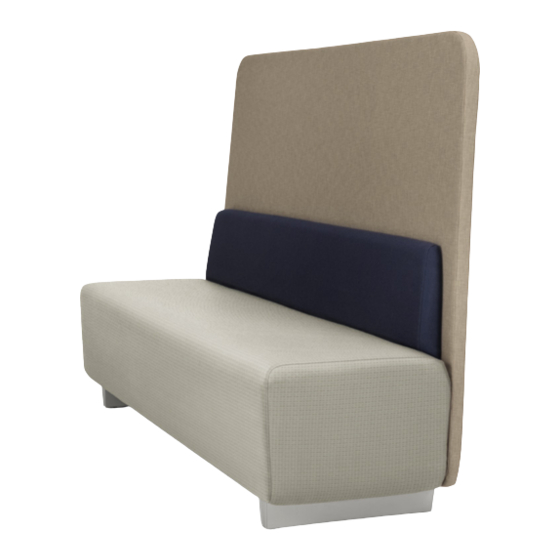

Illustration 2. Assemble seat to screen
Step 2: Lay screen down on the floor as shown. Align holes in seat to match the
desired hole position on the screen. Assemble the seat to the screen through the
bottom of the seat.
343-2896A
Page 1 of 2 (06/13)
Front
Seat
Assemble through
seat opening
Overhang to right
Screen
Centered
Overhang to left
Installation Packet
Back
