Allsteel Universal Screens Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Universal Screens
Installation Instructions
Tools Needed:
1/8" Allen Wrench
Drill
Tape Measurer
#2 Phillips Driver
1/4" Hex Driver
Driver Extension
Index
Screen Overview
U - Bracket Installation
1 . Side Mount Lateral (
2 . Front to Back Lateral (
3 . Top Mount Lateral (
4 . Further Center Beam (
5 . Elevated (
ADMBAH | ADMBAF)
6 . Sit on Surface (
Above/Below Installation
Further Modesty Screens-Fabric
Fabric Modesty Screens
Laminate Modesty Screens
Acrylic Modesty Screens
Glass Modesty Screens
Alignment Clip Installation
Hardware Chart
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
1430120200_A
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
ADMBFS | ADMBGS)
ADMBFF | ADMBGF)
ADMBGT | ADMBFT)
ABMBLF | ABMBLH)
ADMBSH | ADMBSF)
(ADMBDA | ALS27##DFS | AFS####DFS | AAS27##DFS)
(ABMBBM)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
(AFS13##MPD)
(ALS13##MPD)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
(ADMBMA)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
(ADMBDS)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
. . . . . . . . . . 7-8
Allsteel
Muscatine, Iowa 52761-0071
www.allsteeloffice.com
07/2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the Universal Screens and is the answer not in the manual?

Questions and answers

Related Manuals for Allsteel Universal Screens

Summary of Contents for Allsteel Universal Screens

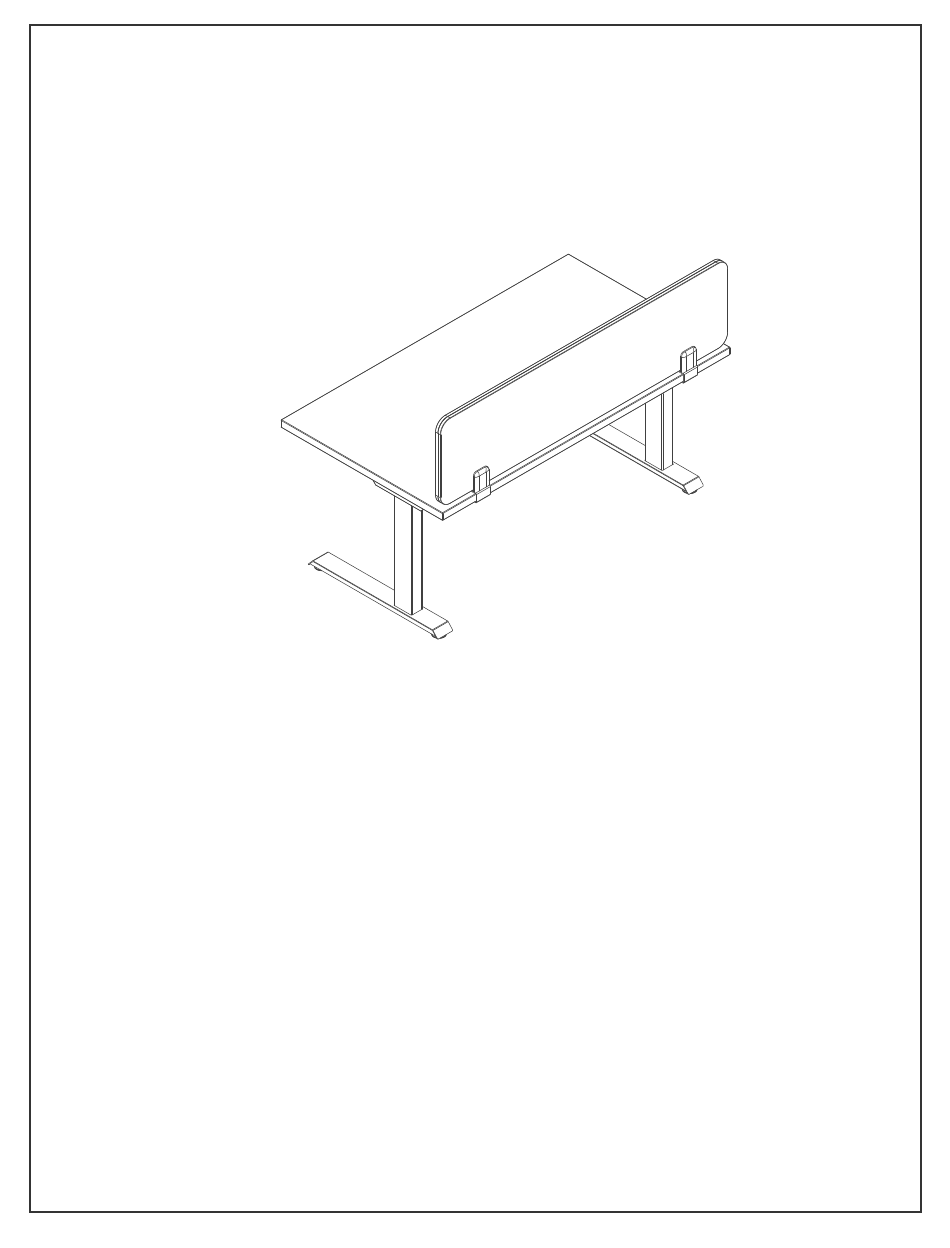

  • Page 1 Universal Screens Installation Instructions Tools Needed: 1/8” Allen Wrench Drill Tape Measurer #2 Phillips Driver 1/4” Hex Driver Driver Extension Index Screen Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 U - Bracket Installation .
