Anet A8 Plus User Manual page 17

1.Except that the electronic wire shown in step 5 passes through the jack at the upper
end of the main board, the remaining electronic wires are all pulled out from the holes
under the main board, and the machine is connected from below the machine to avoid
affecting the operation of the machine.
2.When all wiring is plugged in, please remove the zip ties on the black belt, plug in the
power line, turn on the machine for trial operation, and then install the mainboard mask
shell after everything is normal.

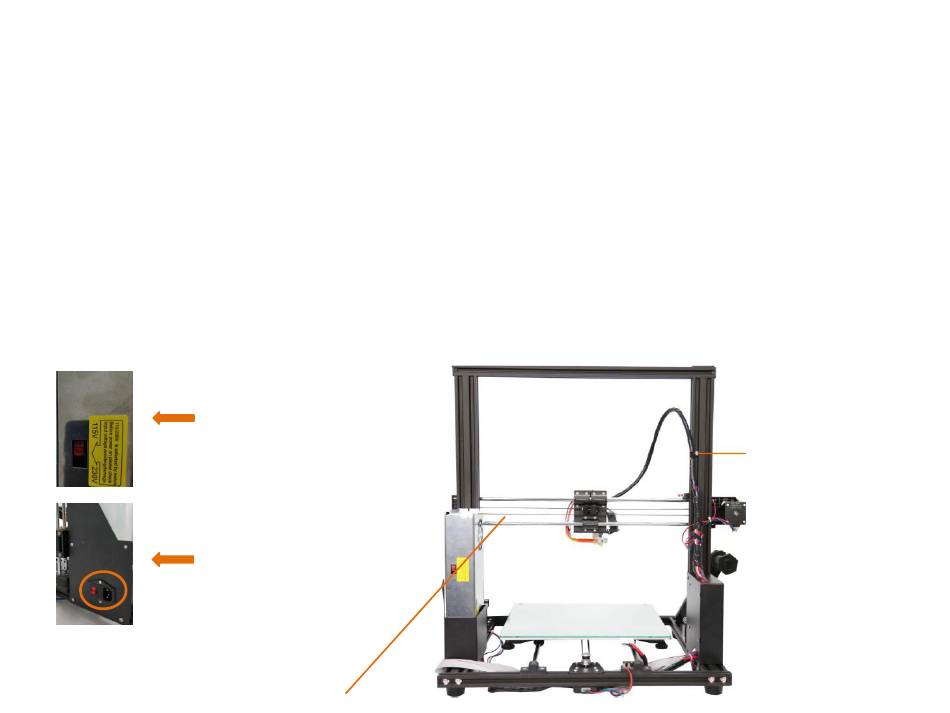

Toggle the red switch to
adjust the voltage according
to the voltage in different
countries.
Power supply line port
Winding and arranging the wire with a black winding pipe
page17of36
Fix the tied electronic wire
on the groove of Z1 axis
aluminum profile ( near the
mainboard side ) with the
hexagon socket round head
screw M4 * 8, the T nut and
the R clip
