Anet A8 Plus User Manual page 14

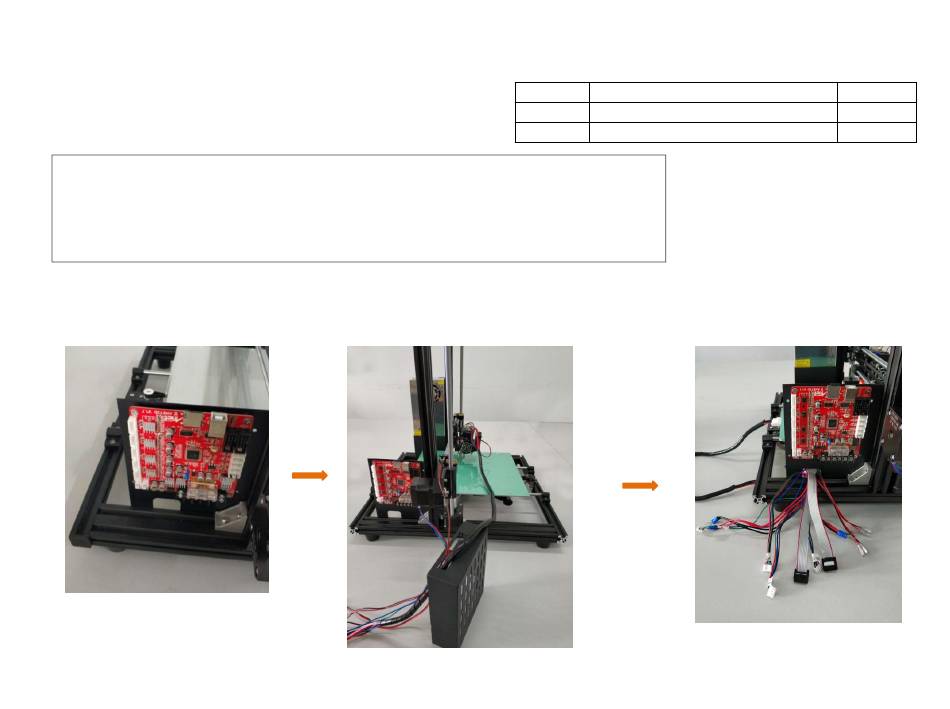

Step 5
1.Disassemble the mainboard kit shell and fixed it into the groove.
2.Machine wiring: the wire of the extruder is wrapped with winding pipe, then it
passes through the wire hole on the shell together with the left X axis limit switch
wire and the X axis motor wire(as shown below picture).
Fix mainboard
on the groove
Please pass the lines of extruder, X axis limit
switch and X axis motor through the square
hole on the mainboard mask. As shown in the
picture:
page14of36
No. Name
1 Step 3, Step 4
2 Cable bag
Pass all other wires through the holes
under the mainboard (pay attention to the
end that passes through matching the
mainboard socket)
Qty.
1
1
