5.3 Connection Status
The connection status (as indicated in the green box in
black status ribbon. At the left side of the status ribbon is a book icon that when selected, allows for the log
information to be displayed. Next to the book icon is a connection icon. This icon shows the visual representation
of the connection status also displayed as text. The icon shows as a connected link when the EVM and GUI
are connected, and appears as a broken link when not connected. Clicking on the icon will attempt to connect if
disconnected and will disconnect if the EVM is currently connected. The last icon shows as an arrow and clicking
the icon toggles the display of connection details.
SBAU362 – MARCH 2021
Submit Document Feedback
Figure
5-26) shows at the bottom of the GUI in the

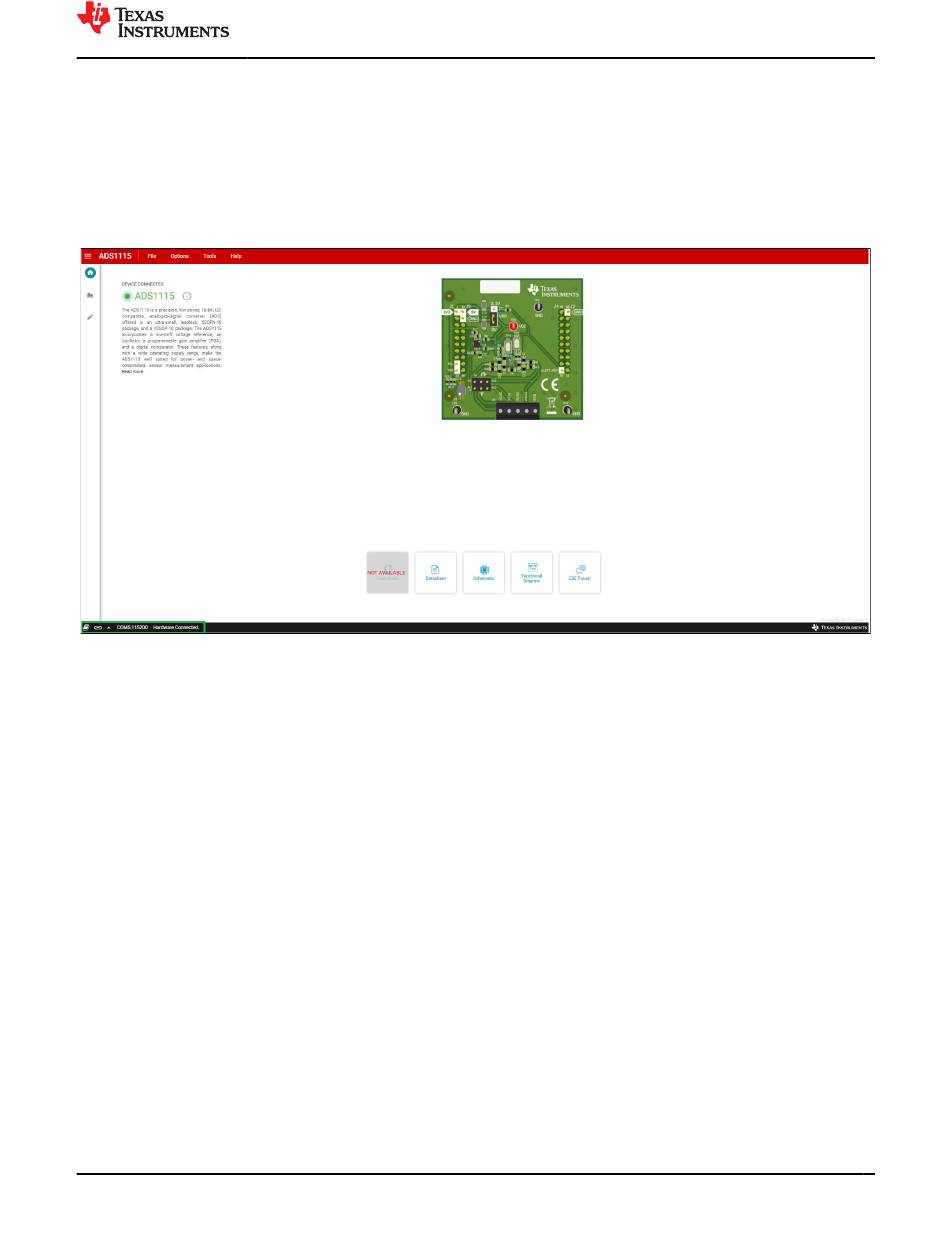

Figure 5-26. Status Information
Copyright © 2021 Texas Instruments Incorporated
ADS1x15V2EVM-PDK GUI
ADS1x15V2EVM-PDK User's Guide
29
