ADS1x15V2EVM-PDK GUI

5.2 Navigation Bar

5.2.1 Home
The Home page includes links to a variety of information. These links include this user's guide, the EVM
schematic, as well as support resources. Next to the connection status indicator is an information icon. Clicking
the icon displays specific information regarding the ADS1x15V2EVM-PDK, as shown in
At the bottom of the GUI is a black ribbon with status information. The status shows if the hardware successfully
connects to the PC and the COM port used. The status ribbon displays regardless of the navigation page
selected.
5.2.2 Chart
The Chart icon selects the available charting options for displaying conversion data. The data options include a
Time Domain, Histogram, and FFT displays.
The Chart tab allows configuration of the Data Capture for the ADS1x15. At the upper right of the capture
window (as illustrated in Figure
the Collect Data button displayed at the upper corner of the window.
20 ADS1x15V2EVM-PDK User's Guide

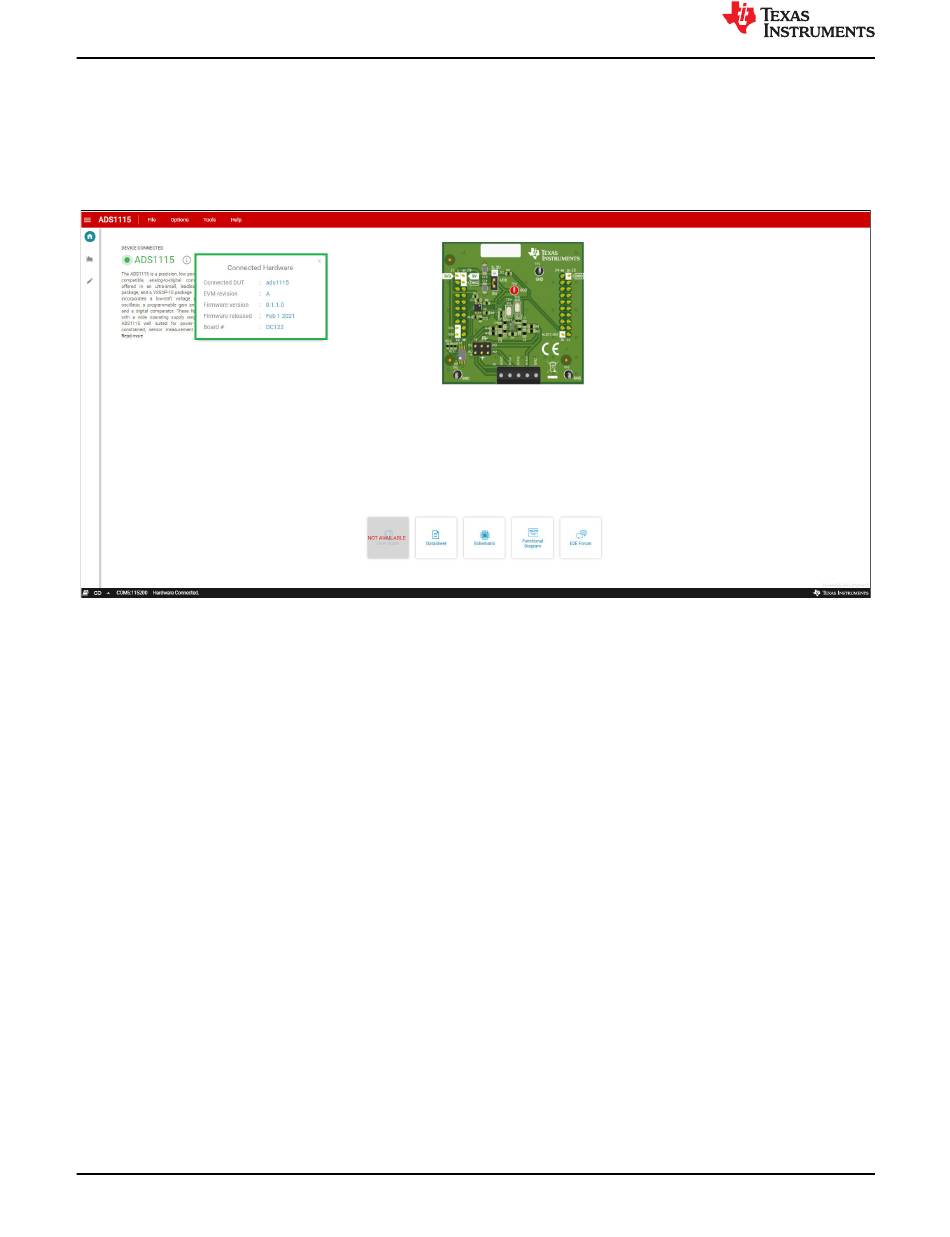

Figure 5-13. Connected Hardware Information

5-14) is the setting for the number of Samples to collect. To capture data, press
