ADS1x15V2EVM-PDK GUI
•
Bin Size selecting the number of unique codes to include in each bin
The # Bins and Bin Size are selectable options and display next to the charting icons near the right side of the
GUI below the statistics.
5.2.2.4 FFT Plot
The FFT plot (as shown in
AC signal can be analyzed and the FFT plot displayed.
24
ADS1x15V2EVM-PDK User's Guide

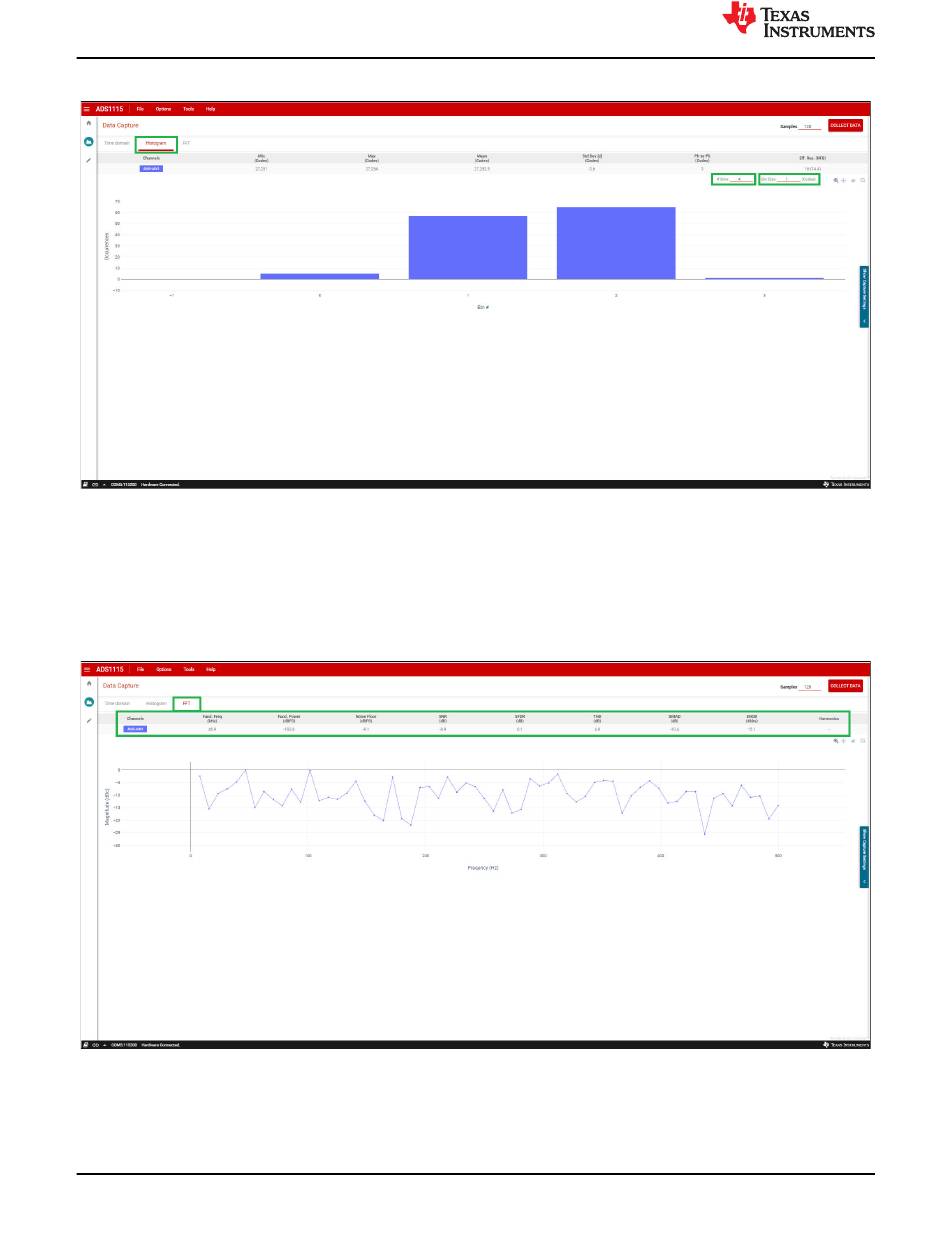

Figure 5-18. Histogram Plot
Figure
5-19) is rather meaningless for dc input voltages. However, a low-frequency
Figure 5-19. FFT Plot
Copyright © 2021 Texas Instruments Incorporated
www.ti.com
SBAU362 – MARCH 2021
Submit Document Feedback
