ADS1x15V2EVM-PDK GUI
The black ribbon at the bottom of the GUI shows connection status and log information. On GUI startup, the
software attempts to identify and verify that the EVM connected matches with the GUI. An EEPROM on the
ADS1x15V2EVM-PDK contains information specific to the EVM connected. A properly connected and identified
EVM displays as Device Connected with a green indicator and at the bottom as Hardware Connected in the
status ribbon.

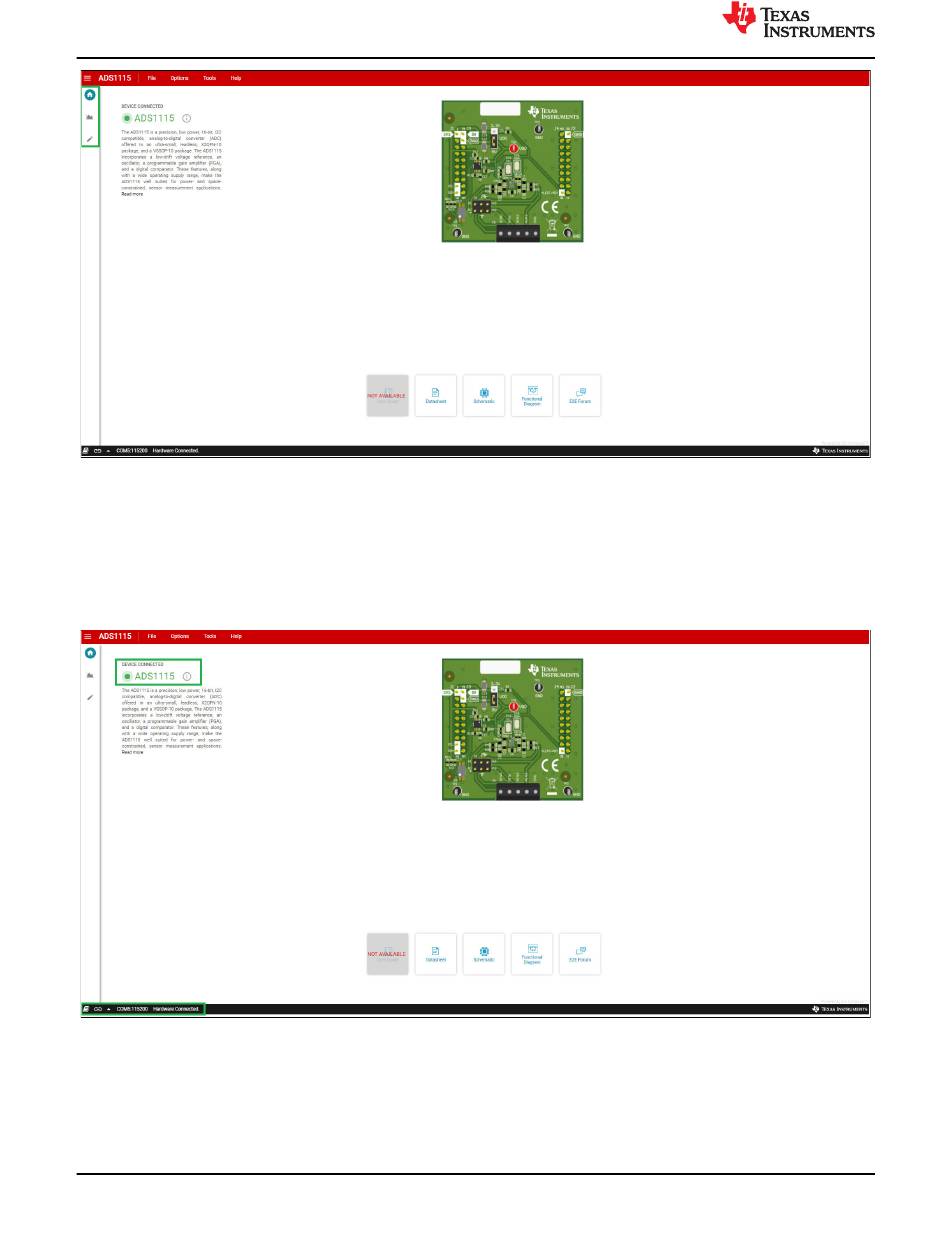

Figure 5-3
green boxes.
Figure 5-3. ADS1x15V2EVM-PDK Connected GUI (ADS1115 shown)
14
ADS1x15V2EVM-PDK User's Guide
Figure 5-2. GUI Navigation Bar Options
shows both the black ribbon information and the device connected radial button in
