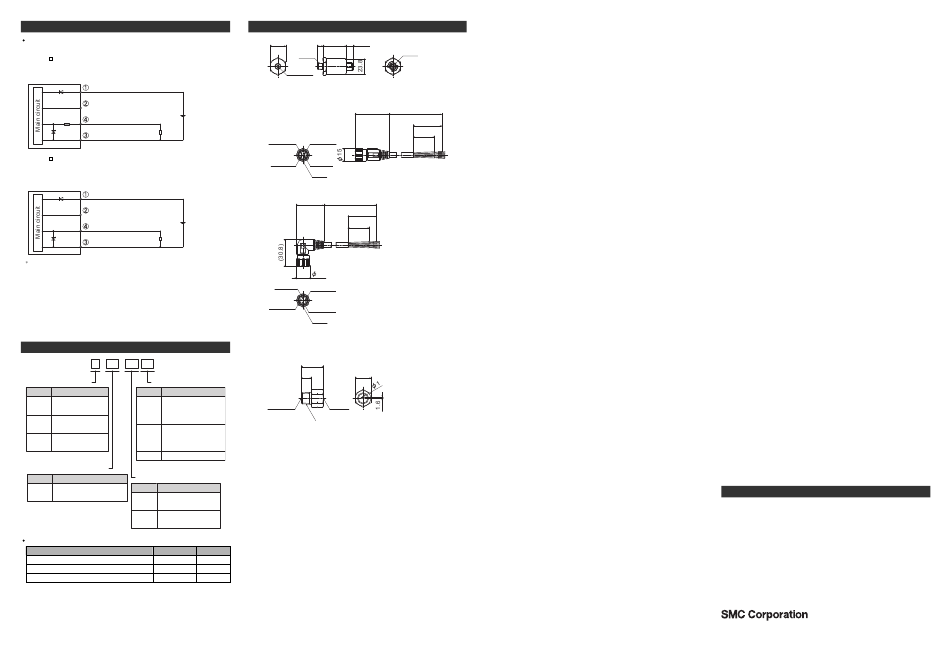

SMC Networks PSE575 Installation & Maintenance Manual page 2

PSE57#-TFT44-A
3 Installation (Continued)
Internal circuit and wiring example
•Output specification
PSE57 -02
Voltage output: 1 to 5 V
Output impedance: Approx. 1 kΩ
Brown DC(+)
N.C. ∗
+
12 to 24 VDC
1 kΩ Black OUT (Voltage output) -
Load
Blue DC(-)
PSE57 -02-28
Current output: 4 to 20 mA
Allowable load impedance: 500 Ω or less (at 24 VDC)
100 Ω or less (at 12 VDC)
Brown DC(+)
N.C. ∗
+
12 to 24 VDC
Black OUT (Current output) -
Load
Blue DC(-)
: The unconnected terminals are used in SMC, so please do not connect them.
4 How to Order
PSE57 7 - 02 -
Sensor range Lead wire/Option
Symbol Content Symbol Content
Positive pressure With lead wire (3 m)
5
(0 to 2 MPa)
Nil and M12 straight
connector
Positive pressure
6
(0 to 5 MPa)
With lead wire (3 m)
L and M12 right angle
Positive pressure
7
connector
(0 to 10 MPa)
N None
Port size
Output spacification
Symbol Content
Symbol Content
R1/4
02
(with M5 female thread)
Voltage output type
Nil
(1 to 5 V)
Current output type
28
(4 to 20 mA)
Option
Description Part No.
Lead wire (3 m) and M12 straight connector ZS-37-A
Lead wire (3 m) and M12 right angle connector ZS-37-B
Adapter with throttle Rc1/4 ZS-31-X175
5 Outline Dimensions (mm)
24 12 39.7 10.5
R1/4
M5 x 0.8
•Lead wire and M12 connector
ZS-37-A
(38.6)
1: Brown 2: White
4: Black 3: Blue
M12
ZS-37-B
(31) 3000
45
30
15
3: Blue
4: Black
2: White
1: Brown
M12
•Adapter with throttle
ZS-31-X175
29
13 17
M5 x 0.8 Rc1/4
R1/4
Remarks
1 pc.
1 pc.
1 pc.
M12
3000
45
30
6 Contacts
AUSTRIA (43) 2262 62280-0 LATVIA (371) 781 77 00
BELGIUM (32) 3 355 1464 LITHUANIA (370) 5 264 8126
BULGARIA (359) 2 974 4492 NETHERLANDS (31) 20 531 8888
CZECH REP. (420) 541 424 611 NORWAY (47) 67 12 90 20
DENMARK (45) 7025 2900 POLAND (48) 22 211 9600
ESTONIA (372) 651 0370 PORTUGAL (351) 21 471 1880
FINLAND (358) 207 513513 ROMANIA (40) 21 320 5111
FRANCE (33) 1 6476 1000 SLOVAKIA (421) 2 444 56725
GERMANY (49) 6103 4020 SLOVENIA (386) 73 885 412
GREECE (30) 210 271 7265 SPAIN (34) 945 184 100
HUNGARY (36) 23 511 390 SWEDEN (46) 8 603 1200
IRELAND (353) 1 403 9000 SWITZERLAND (41) 52 396 3131
ITALY (39) 02 92711 UNITED KINGDOM (44) 1908 563888
URL http://www.smcworld.com (Global) http://www.smceu.com (Europe)
Specifications are subject to change without prior notice from the manufacturer.
© 2016-2017 SMC Corporation All Rights Reserved
